10.3. Details of Electrical Adjustment
10.3.1. How to execute the Electrical Adjustment
It is not necessary to connect the camera to a PC to perform adjustments.
“Flag reset operation” and “Initial setting operation” are required when carrying out the alignment, follow the procedure below.
10.3.1.1. Startup Electrical Adjustment mode
1. Release the initial settings.
2. Insert a recordable memory card (32MB or more).
(Without a momery card, the automatic adjustment can
not executed.)
3. Procedure to set the camera into adjustment mode:
While pressing “[ LEFT ] of Cursor button”, [ Playback ]
button and [ AF/AE LOCK ] button simultaneously, turn
the power on.

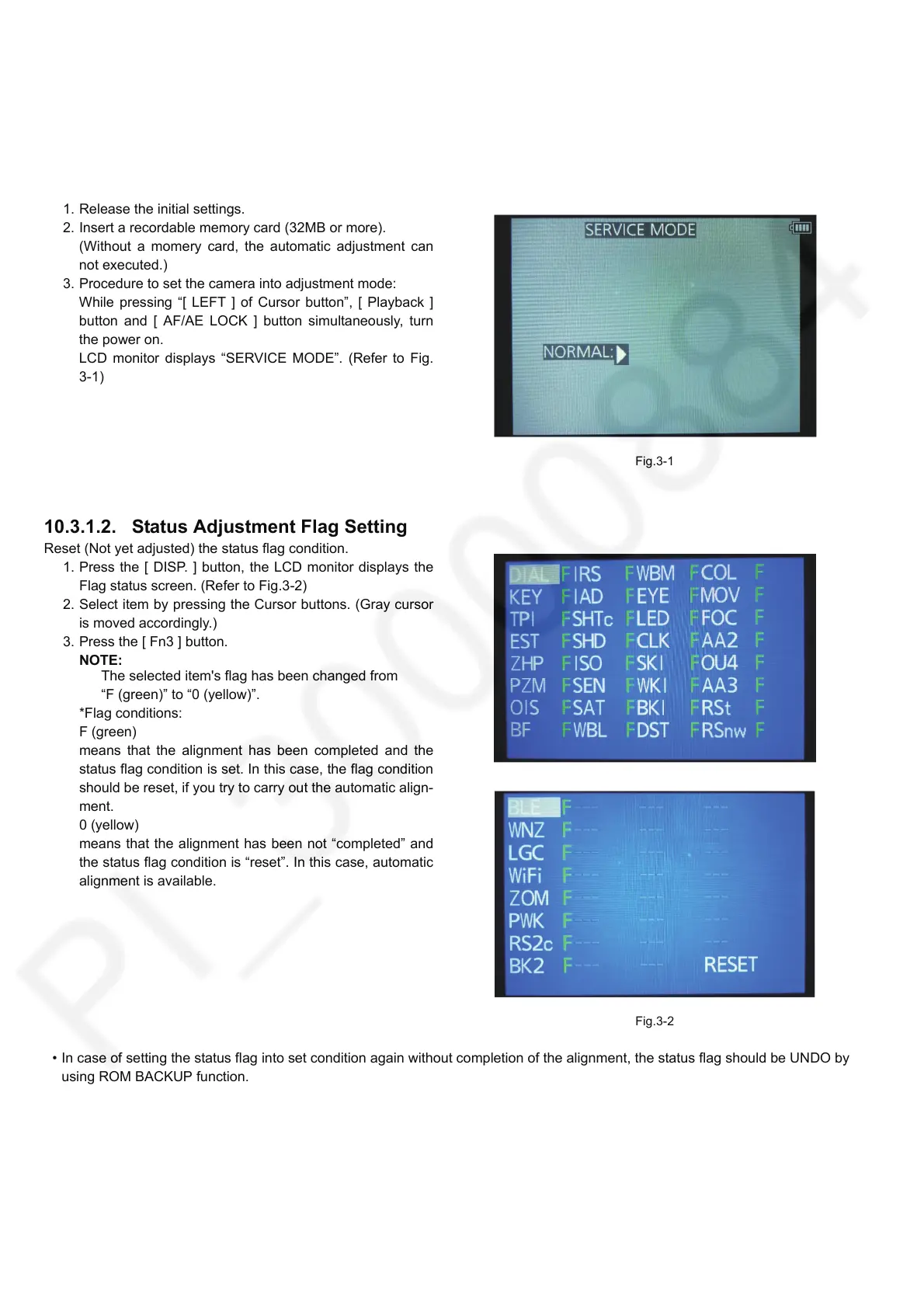

LCD monitor displays “SERVICE MODE”. (Refer to Fig.
3-1)
Fig.3-1
10.3.1.2. Status Adjustment Flag Setting
Reset (Not yet adjusted) the status flag condition.
1. Press the [ DISP. ] button, the LCD monitor displays the
Flag status screen. (Refer to Fig.3-2)
2. Select item by pressing the Cursor buttons. (Gray cursor
is moved accordingly.)
3. Press the [ Fn3 ] button.
NOTE:
The selected item's flag has been changed from
“F (green)” to “0 (yellow)”.
*Flag conditions:
F (green)
means that the alignment has been completed and the
status flag condition is set. In this case, the flag condition
should be reset, if you try to carry out the automatic align-
ment.
0 (yellow)
means that the alignment has been not “completed” and
the status flag condition is “reset”. In this case, automatic
alignment is available.
Fig.3-2
• In case of setting the status flag into set condition again without completion of the alignment, the status flag should be UNDO by
using ROM BACKUP function.
