39

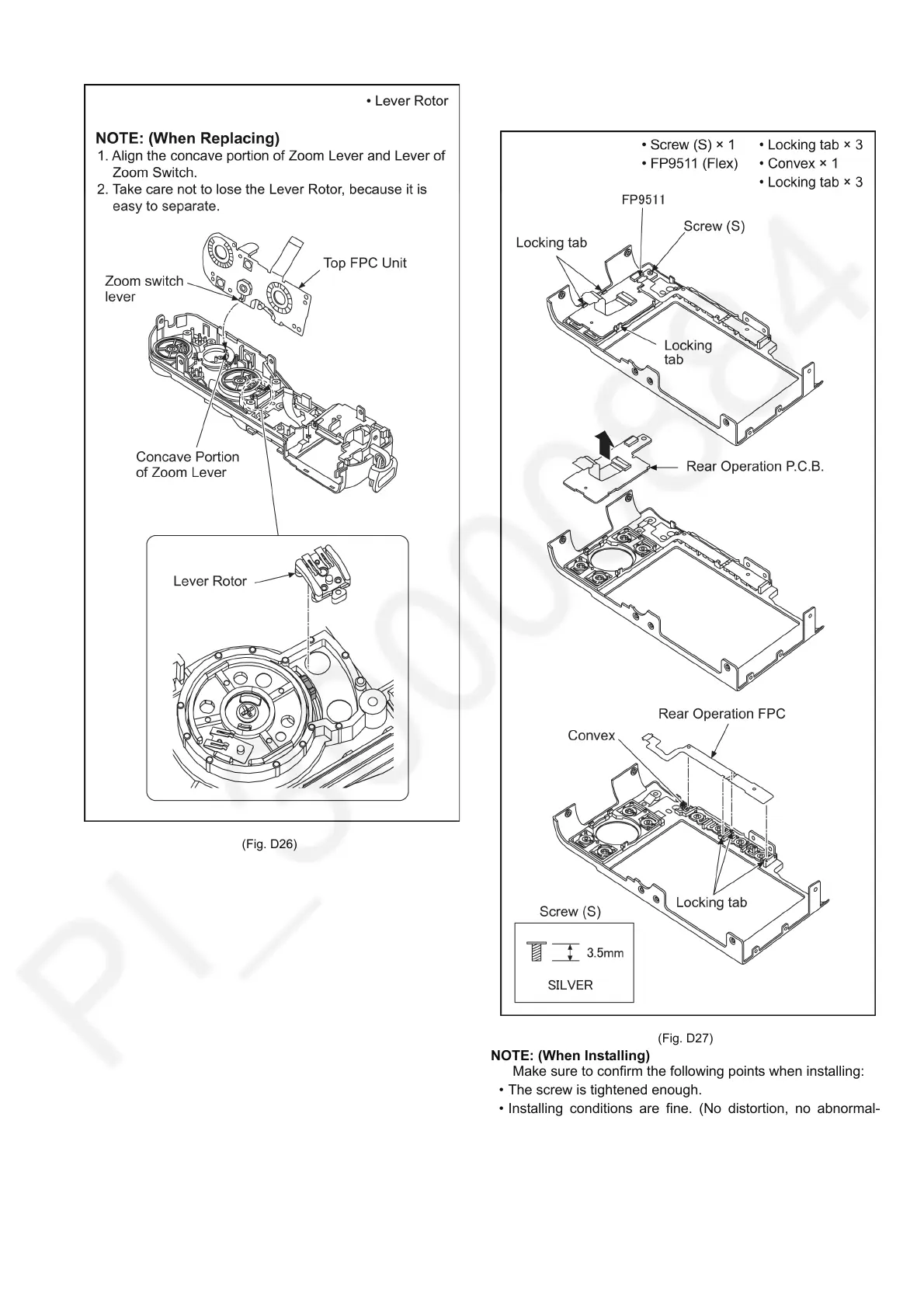

(Fig. D26)
9.3.14. Removal of the Rear Operation
P.C.B., and Rear Operation FPC
(Fig. D27)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on lens surfaces.
• LCD image is fine. (No dust and/or dirt on it, and no gradient
images.)
To Next Page
