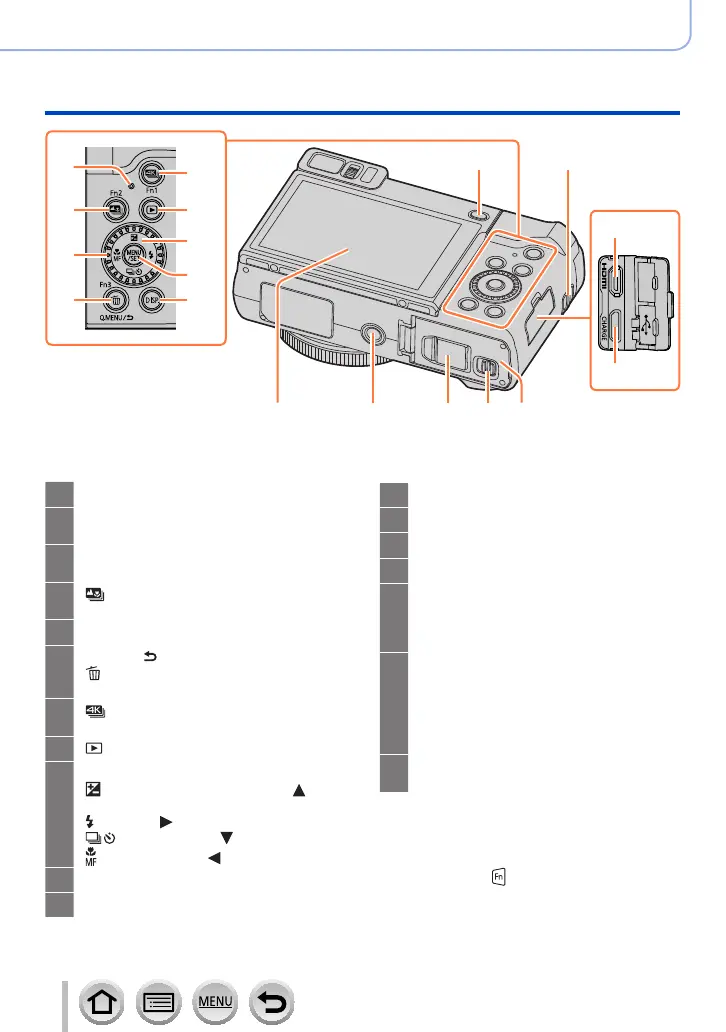

Names and Functions of Main Parts
10
Strap eyelet (→19)
17
[LVF] button (→34) /
[Fn4] button (→48)
18
Charging lamp (→23) /
Wi-Fi
®
connection lamp (→225)
19
[ ] ([Post Focus]) button (→124) /
[Fn2] button (→48)
20
Control dial (→38, 51)
21
[Q.MENU/ ] (Cancel) button (→47) /
[
] (Delete) button (→167) /
[Fn3] button (→48)
22
[ ] (4K photo mode) button (→114) /
[Fn1] button (→48)
23
[ ] (Playback) button (→161)
24
Cursor button (→39)
[
] (Exposure compensation) ( )
(→107)
[
] (Flash) ( ) (→146)
[
] (Drive Mode) ( ) (→129)
[
] (Focus Mode) ( ) (→90, 103, 104)
25
[MENU/SET] button (→39, 45)
26
[DISP.] button (→39)
27
[HDMI] socket (→264)
28
[USB/CHARGE] socket (→22, 270, 273)
29
Card/Battery door (→21, 26)
30
Release lever (→21, 26)
31
DC coupler cover (→276)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
32
Tripod mount (→297)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
33
Touch screen (→42) /
monitor (→33, 277)
■
Function buttons [Fn5] to [Fn9]
• Buttons [Fn5] to [Fn9] (→48) are
touch icons. They can be displayed by
touching the [
] tab on the recording
screen.
