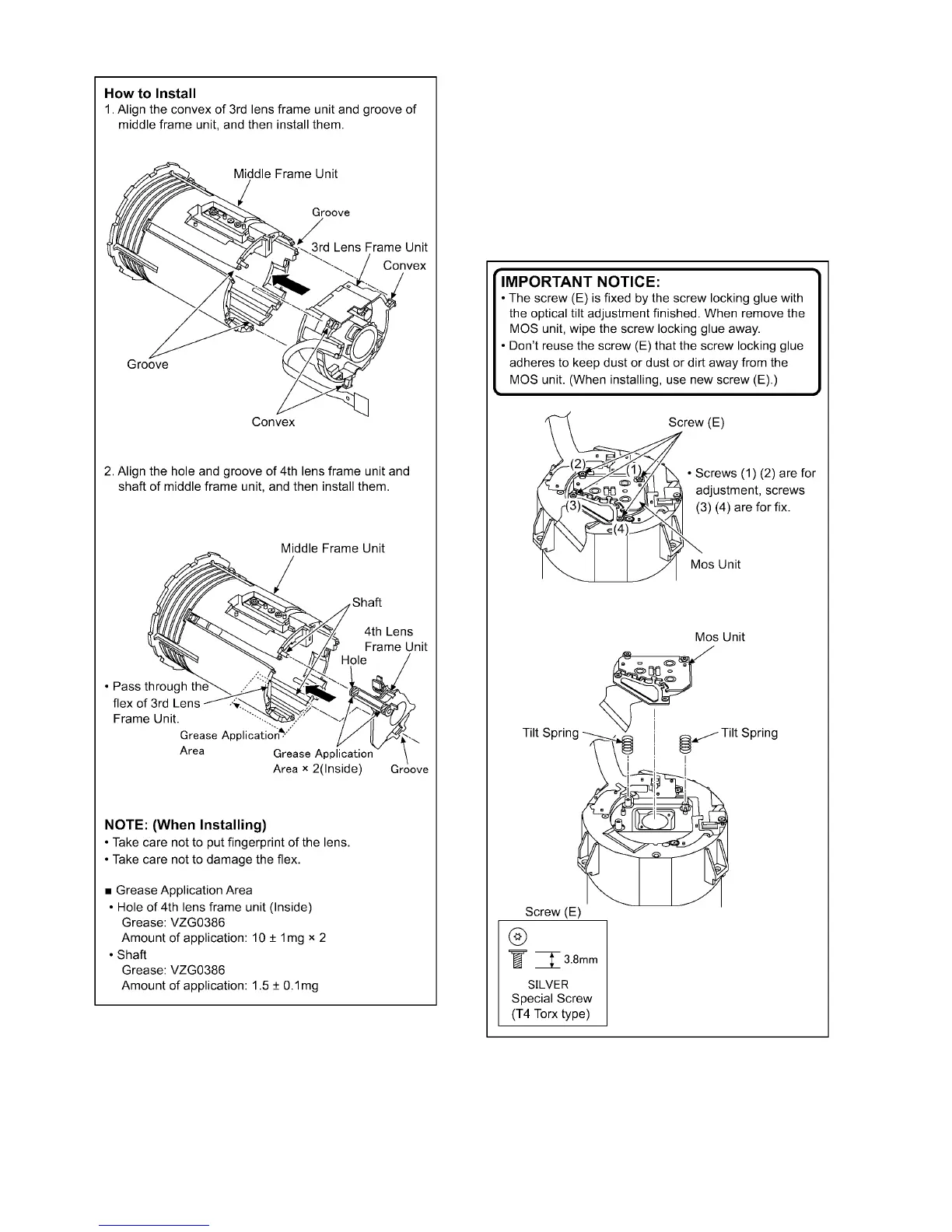

8.5. Removal of the MOS Unit
When remove the MOS unit once (the screw(E) is loosened
even a little), the optical tilt adjustment is required.
When loosen the screw(E), the optical tilt adjustment is
necessary at the end of assembling.
(Refer to item “9.3.2.”)
To prevent the MOS unit from catching the dust and dirt,
do not remove the MOS unit except replacing it.
1. Unscrew the 4 screws(E).
2. Remove the MOS unit.
