3.1. Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.
3.2. Important Notice
3.2.1. About lens block

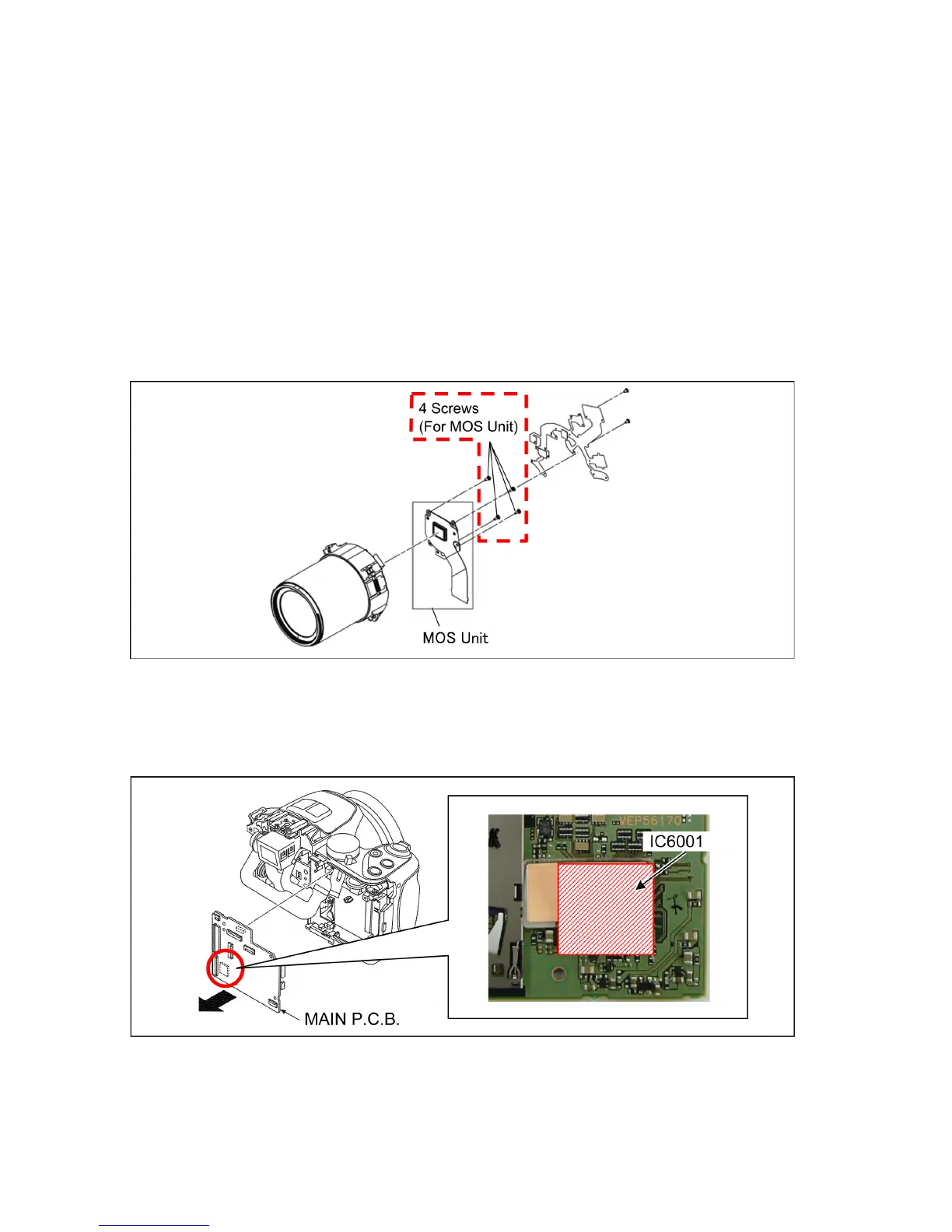

• The image sensor (MOS) unit which are connected to the lens unit with 4 screws. These screws are locked with the screw lock-
ing glue, after performing the Optical tilt adjustment.
During servicing, if one of MOS unit fixing screws are loosened, the Optical tilt adjustment must be performed.
(About the Optical tilt adjustment, refer to the “9.3.2. Adjustment Specifications” for details.)
NOTE:
• It is necessary to use the “DSC_Tilt” software to allow the “Optical tilt adjustment”.
• The Adjustment software “DSC_Tilt” is available at “TSN Website”.
3.2.2. About VENUS ENGINE(IC6001) [Located on the Main P.C.B.]:
• The VENUS ENGINE (IC6001) consists of two IC chips, which are fixed together with solder.
(The so called, “Package On Package” type IC.)
NOTE:
• During servicing, do not press down hard on the surface of IC6001.
3.2.3. About Flexible Cable and Connector
Do not touch carelessly so that the foreign body should not adhere to the terminal part of flexible cable and connector.
Wipe off with a clean cloth and the cotton bud, etc. when the terminal part is dirty.
