Connecting to other equipment
- 174 -
Preparations: Check the [HDMI MODE]. (P36)
Turn this unit and the TV off.

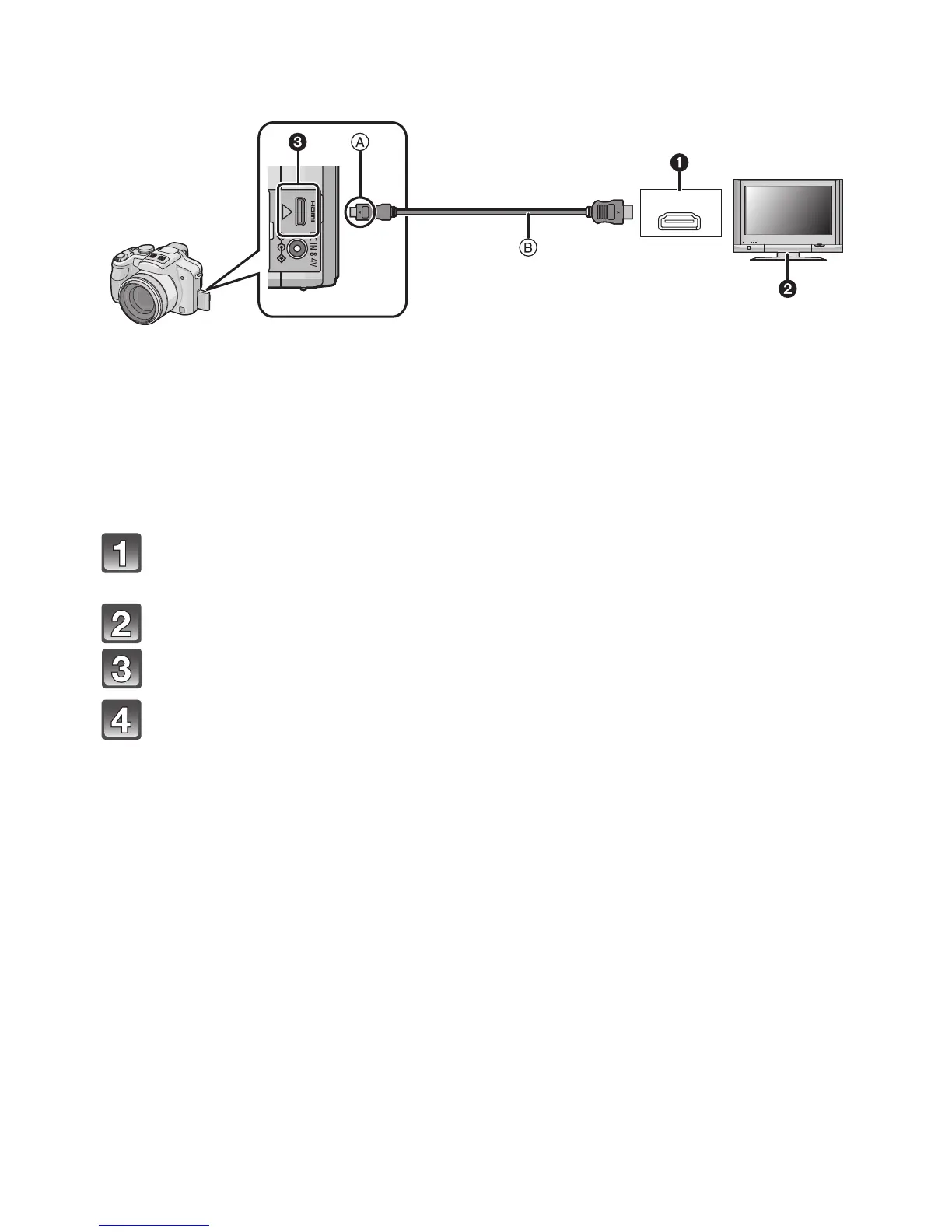

1 HDMI socket
2 TV with HDMI socket
3 HDMI mini (C type)
A Align the marks, and insert.
B HDMI mini cable (optional)
•
Check the direction and shape of the terminal and plug in/out while holding the plug straight. (It
may result in malfunction by the deforming of the terminal if it is plugged in obliquely or in
wrong direction.)
Connect the HDMI mini cable B (optional) to the HDMI input socket
on the TV.
Connect the HDMI mini cable to the [HDMI] socket on the camera.
Turn the TV on and switch to HDMI input.
Turn the camera on, and slide the [REC]/[PLAYBACK] selector switch
to [(].
• When [VIERA Link] (P37) is set to [ON] and the camera is connected to a TV supporting
VIERA Link, input of the TV will be switched automatically and playback screen will be
displayed (P176).
HDMI IN
