27

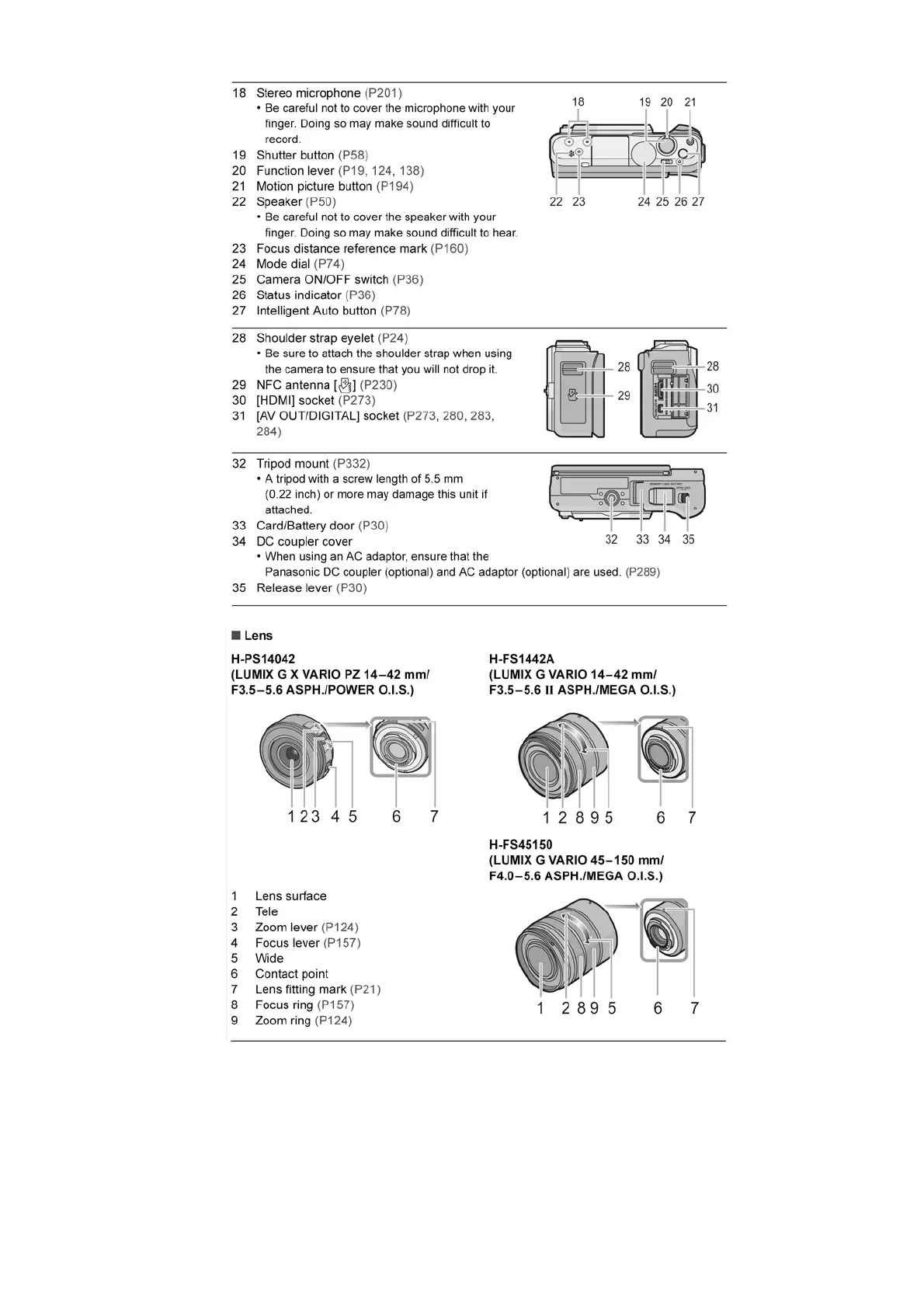

18 Stereo microphone (P201)
•
Be
careful not
to
cover the microphone with your
18
19
20
21
finger. Doing
so
may make sound difficult
to
I
I
record.
~
19
Shutter button (P58)
r,
20 Function lever (P19, 124, 138)
21
Mot
ion picture button (P1g4)
22 Speaker (P50)
24 25
26
27
•
Be
careful not
to
cover the speaker with your
finger.
Doing
so
may make sound difficult
to
hear.
23 Focus distance reference mark (P160)
24 Mode dial (P74)
25 Camera ON/OFF
sw
itch (P36)
26 Status i
nd
icator ( P36)
27 Intelligent Auto button (P78)
28
Shoulder strap eyelet (P24)
•
Be
sure to attach the shoulder strap when using
the camera to ensure that you will not drop i
t.
29 NFC antenna [
§I
(P230)
30 [HDMI] socket (P273)
31
[AV OUT/DIGITAL] socket (P273,
280,283,
284)
32
Tripod mount (P332)
• A tripod wi
th
a screw length of 5.5
mm
(0
.
22
inch) or more may damage this
un
it
if
attac
he
d.
33 Card/Battery door (P30)
34
DC
coupler cover
34
35
• When using
an
AC
adaptor, ensure that the
Panasonic
DC
coupler (optional)
and
AC
adaptor (optional) are used. (P289)
35 Release lever (P30)
■
Lens
H-PS14042
(LUMIX G X VARIO PZ 1
4-42
mm/
F3
.
5-5
.6 ASPH./POWER 0.1.S.)
H-FS1442A
(LUMIX G VARIO 14
-4
2 mm/
F3
.
5-5
.6
II
ASPH./MEGA
O.1.S
.)
123
4 5
6
1 2 8 9 5 6 7
Lens surface
2 Tele
3 Zoom lever (P124)
4
Focus lever (P157)
5
Wide
6
Contact
po
int
7 Lens fitting mark (P21)
8 Focus ring (P 157)
9 Zoom ring (P124)
H-FS45150
(LUMIX G VARIO
45
- 150 mm/
F4.0- 5.6 ASPH./MEGA
O.1.S.)
1 2 8 9 5
6
7
