Preparation
(ENG) VQT5D62
Names and Functions of Components

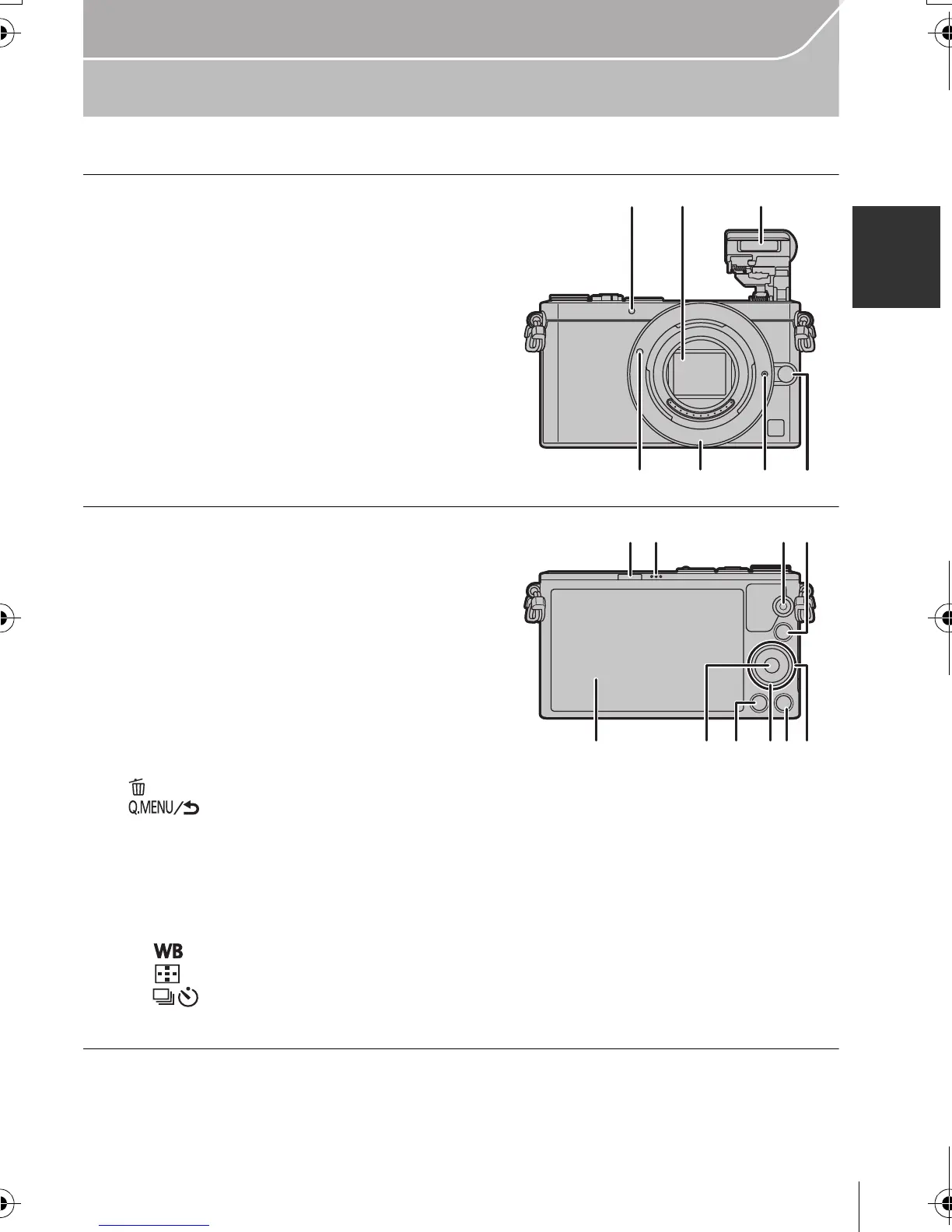

∫ Camera body
1 Self-timer indicator/
AF Assist Lamp
2 Sensor
3Flash
4 Lens fitting mark (P14)
5 Mount
6 Lens lock pin
7 Lens release button (P14)
8 Flash open lever
•
The flash opens, and recording with the flash
becomes possible.
9 Speaker
•
Be careful not to cover the speaker with your
finger. Doing so may make sound difficult to
hear.
10 Motion picture button (P20)
11 [(] (Playback) button (P22)
12 Touch screen/monitor (P13)
13 [MENU/SET] button (P18)
14 [ ] (Delete) button (P23)/
[ ] (Quick Menu/Return) button (P19)
15 Control dial
16 [DISP.] button
•
Each time this is pressed, the display on the monitor is switched.
17 Cursor buttons
3/[È] (Exposure Compensation)
1/[ ] (White Balance)
2/[ ] (Auto Focus Mode)
4/[ ] (Drive mode)
Single/Burst/Auto bracket/Self-timer
2
3
1
45 67
8
12 14 1613 15 17
9 10 11
