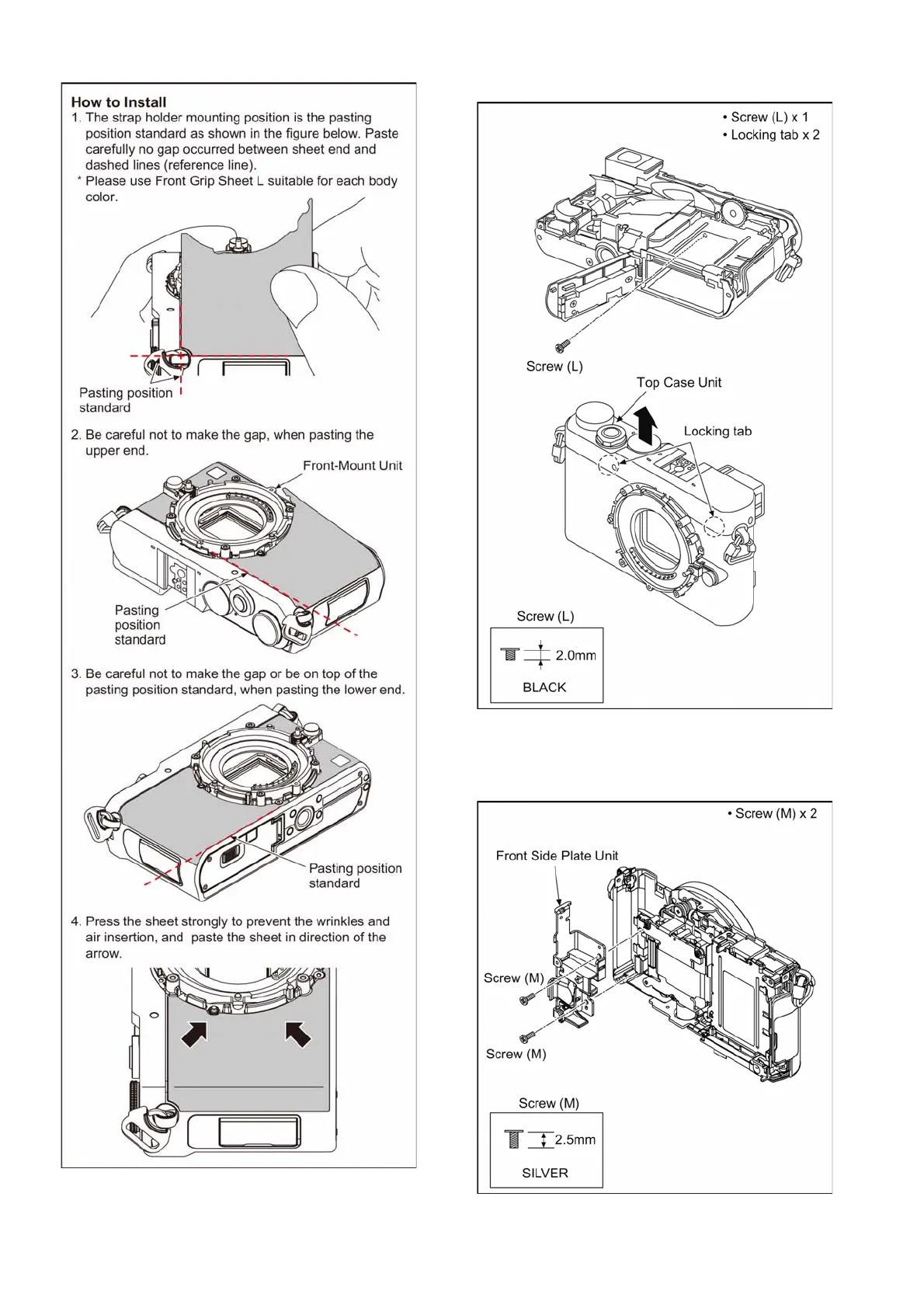

46
(Fig. D12)
9.1.3.7.
Removal of the T
op Case Unit
(Fig. D13)
9.1.3.8.
Removal of the Front Side Plate
Unit and Strap Holder R
(Fig. D14)
45
47
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Precautions
3
General Guidelines
3
Leakage Current Cold Check
3
Leakage Current Hot Check (See Figure. 1)
3
2 Warning
4
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
4
How to Recycle the Lithium Ion Battery (U.S. Only)
4
How to Replace the Lithium Battery
5
Caution for AC Cord (for EB/GC
6
3 Service Navigation
7
Introduction
7
About Service of Bundled Lenses
7
Important Notice
7
Service Notes
12
General Description about Lead Free Solder (Pbf)
14
How to Define the Model Suffix (NTSC or PAL Model)
15
4 Specifications
19
Camera Body
19
Lens
23
5 Location of Controls and Components
24
Camera Body
24
Lens
26
6 Service Mode
27
Error Code Memory Function
27
7 Troubleshooting Guide
30
Checking Method of Body and Interchangeable Lens
30
Wi-Fi Circuit (Main P.C.B.)
35
8 Service Fixture & Tools
36
Service Fixture and Tools
36
Clean Box
37
When Replacing the Main P.C.B
37
Service Position
38
9 Disassembly and Assembly Instructions
39
Camera Body Part
39
Disassembly and Assembly Procedure for the Lens
52
10 Measurements and Adjustments
53
Matrix Chart for Replaced Part and Necessary Adjustment
53
Maintenance
55
Notice in External Cleaning
55
Block Diagram
56
Overall Block Diagram
56
System Control Block Diagram
57
Video/Audio Process(1) Block Diagram
58
Video/Audio Process(2) Block Diagram
59
Lens/Hot Shoe Block Diagram
60
Power Block Diagram
61
Wiring Connection Diagram
62
Interconnection Diagram
62
4
