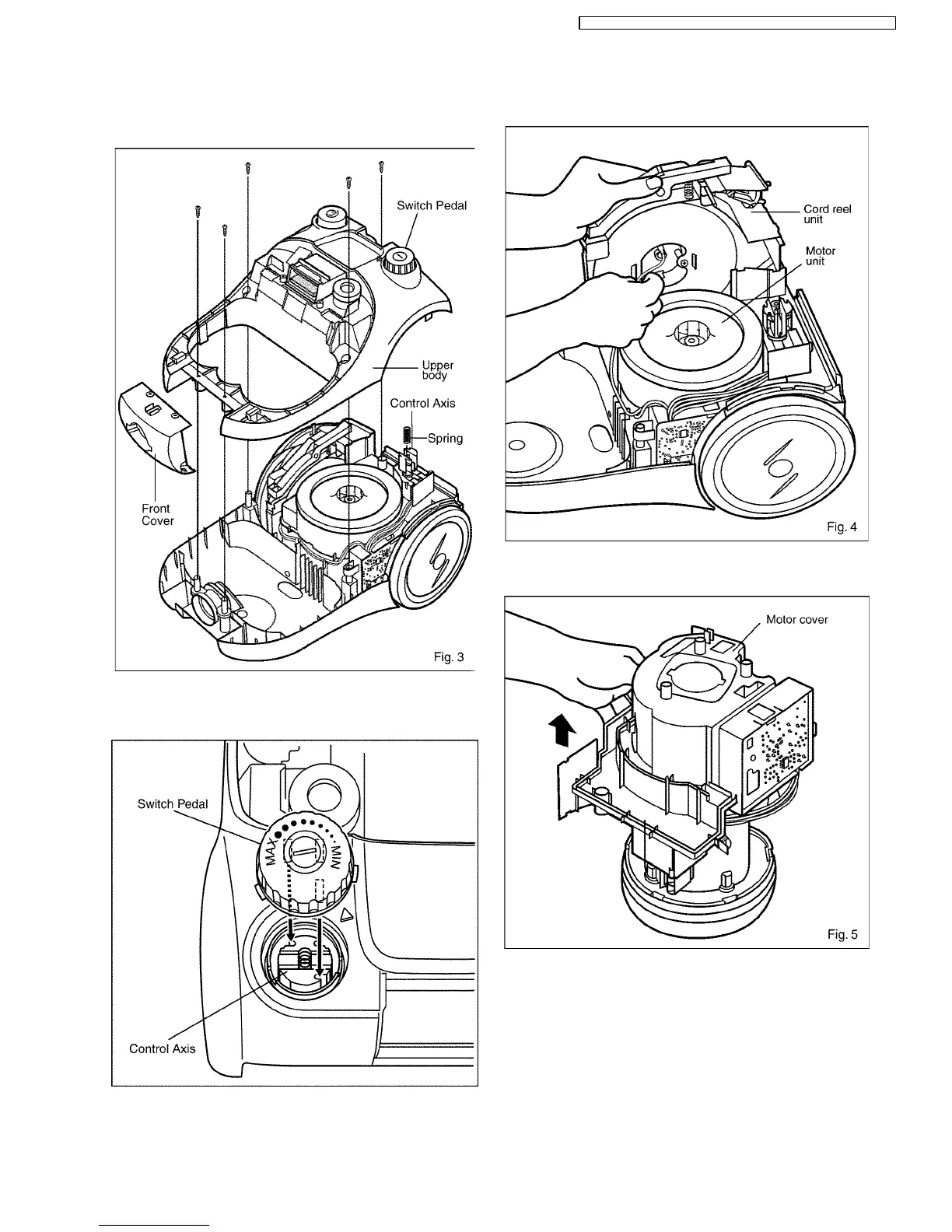

3. Remove screws from upper body and take out front cover
and upper body. (Fig.3)
*There are 2 latches in the back side of Upper body.
Please remove it by pulling strongly from the front side.
Important: When reassembling the Switch Pedal,
please place ControlAxis and Switch Pedal in the right
place as they can fit.
4. Lift up cord reel unit and remove the two lead wires
(provided with quick-connect terminal) from the contact
springs. (Fig. 4)
5. Take out motor unit and remove motor cover. (Fig.5)
5
MC-E8021 / MC-E8021K / MC-E8023 / MC-E8023K / MC-E8024 / MC-E8024K
