Panasonic MDDLN55SE - Page 11

No. SX-DSV03015 - 8 -
Motor Business Unit, Panasonic Corporation

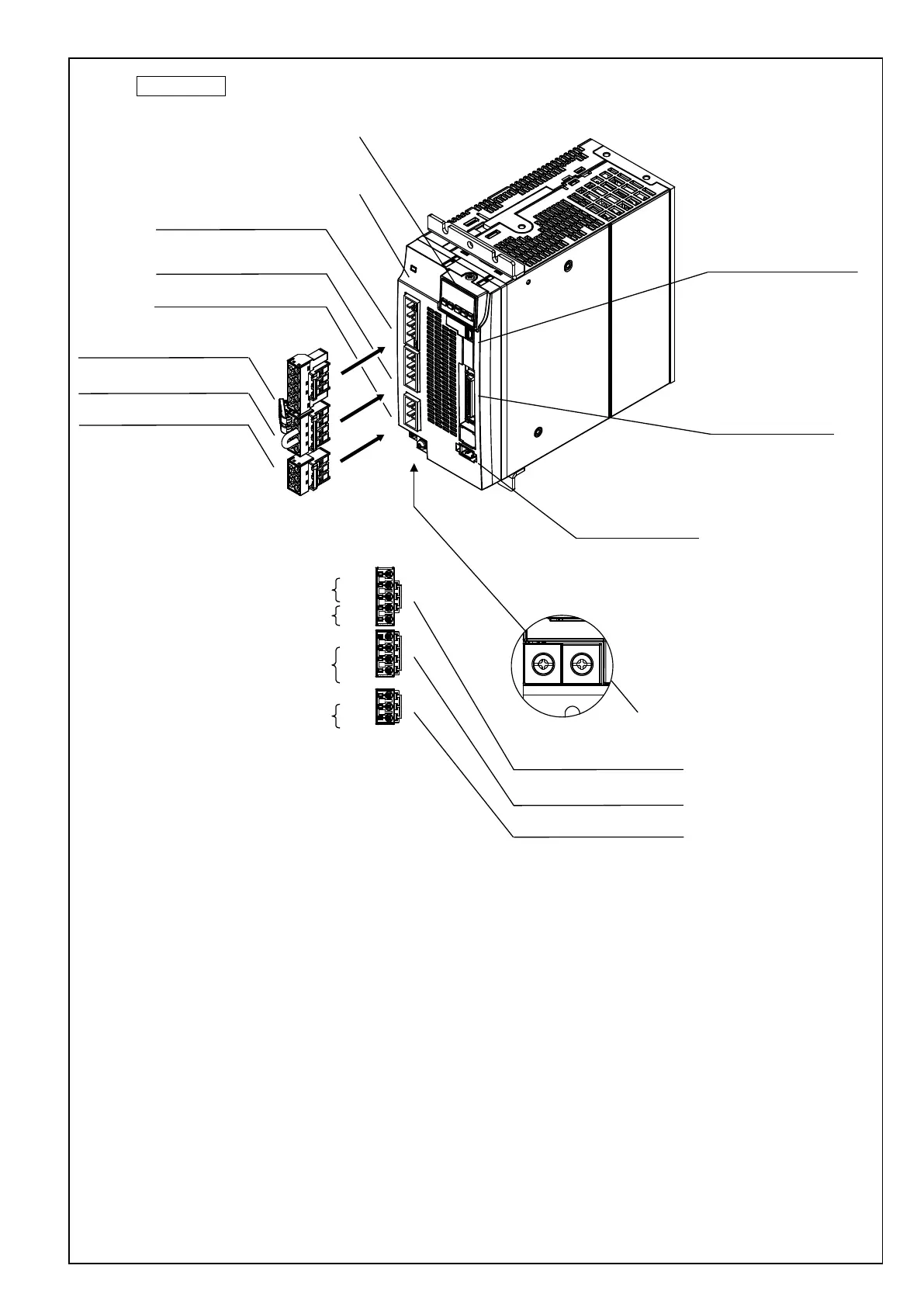

200 V size E
X1：USB connection
UB-M5BR-S14-4S(LF)(SN) (JST)
(or equivalent)
X4：Parallel I/O connection
DF02R050NA2 (JAE)
(or equivalent)
X6：Encoder connection
3E106-223AKV(3M)
(or equivalent)
Charge lamp
Front panel
Earth connection screw
XA：Power supply input connection
XC：Regenerative resistor connection
XB：Motor connection
XA：Power supply input connection
05JFAT-SAXGSA-L (JST)
(or equivalent)
XC：Regenerative resistor connection
04JFAT-SAXGSA-L (JST)
(or equivalent)
XB：Motor connection
03JFAT-SAXGSA-L (JST)
(or equivalent)
XA： Power supply input
S05B-JTSLSK-GSANXR (JST)
(or equivalent)
XB： Motor output
S03B-JTSLSK-GSANXR (JST)
(or equivalent)
XC： Regenerative resistor connection
S04B-JTSLSS-GSANXR (JST)
(or equivalent)
L1
L2
L3
L1C
L2C
P
RB
B
N
U
V
W
Main power supply
input
Control power supply
input
Regenerative resistor
connection
Motor output
