20

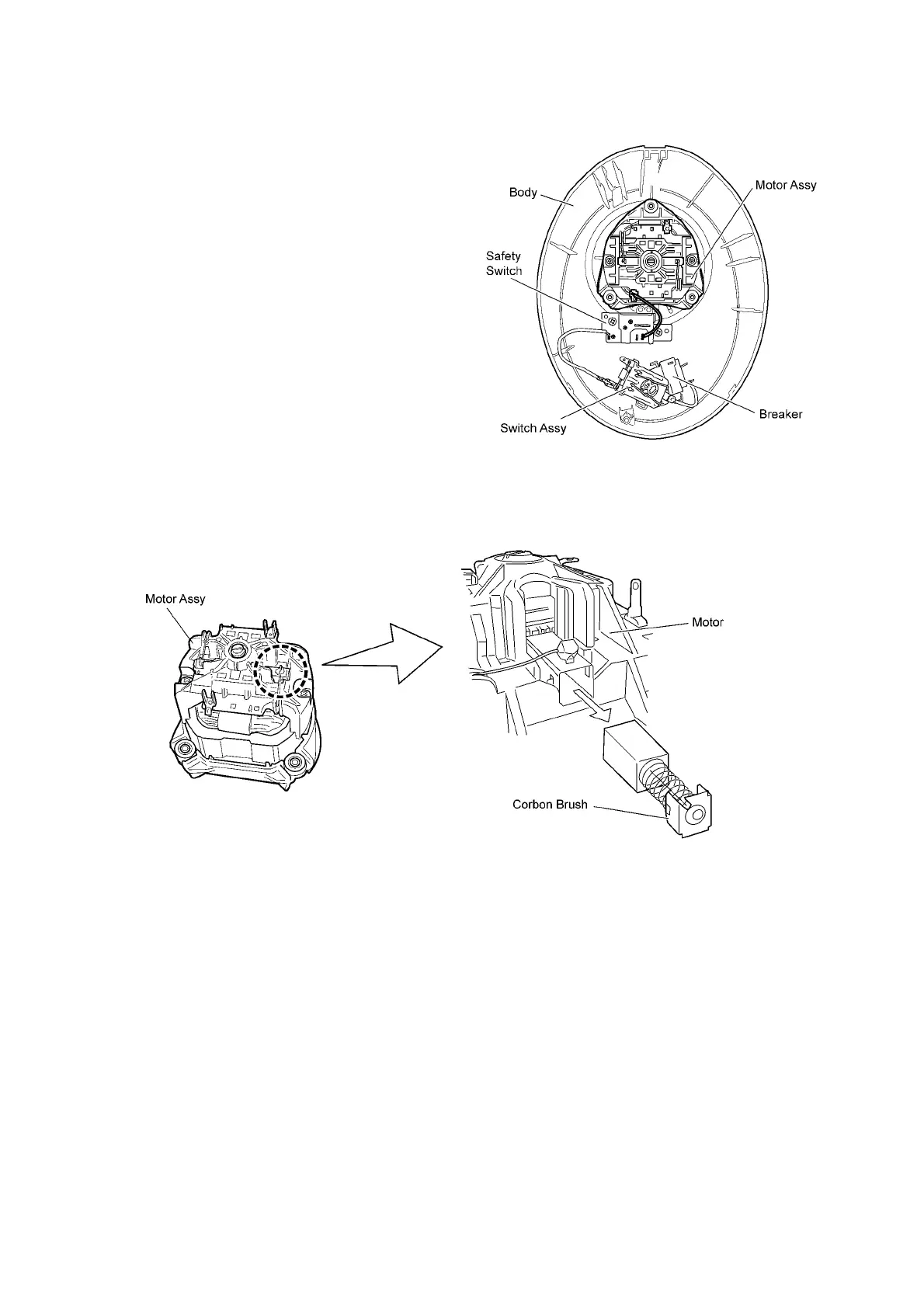

6.6. Motor Assy
1. Pull out while the faston terminal with the part of the Lead
wire.
2. Takes out a motor from the body and it removes.
The brush can be exchanged by metal fittings coming
when bending fixation metal fittings.
6.7. Brush Assy
1. Inserts a minus driver in a draught of the brush folder and
the brush fixation metal fittings in the motor.
• When inserting a whisk, it is possible to put either side of the
board of the fixation metal fittings in the brush folder by hold-
ing it.
