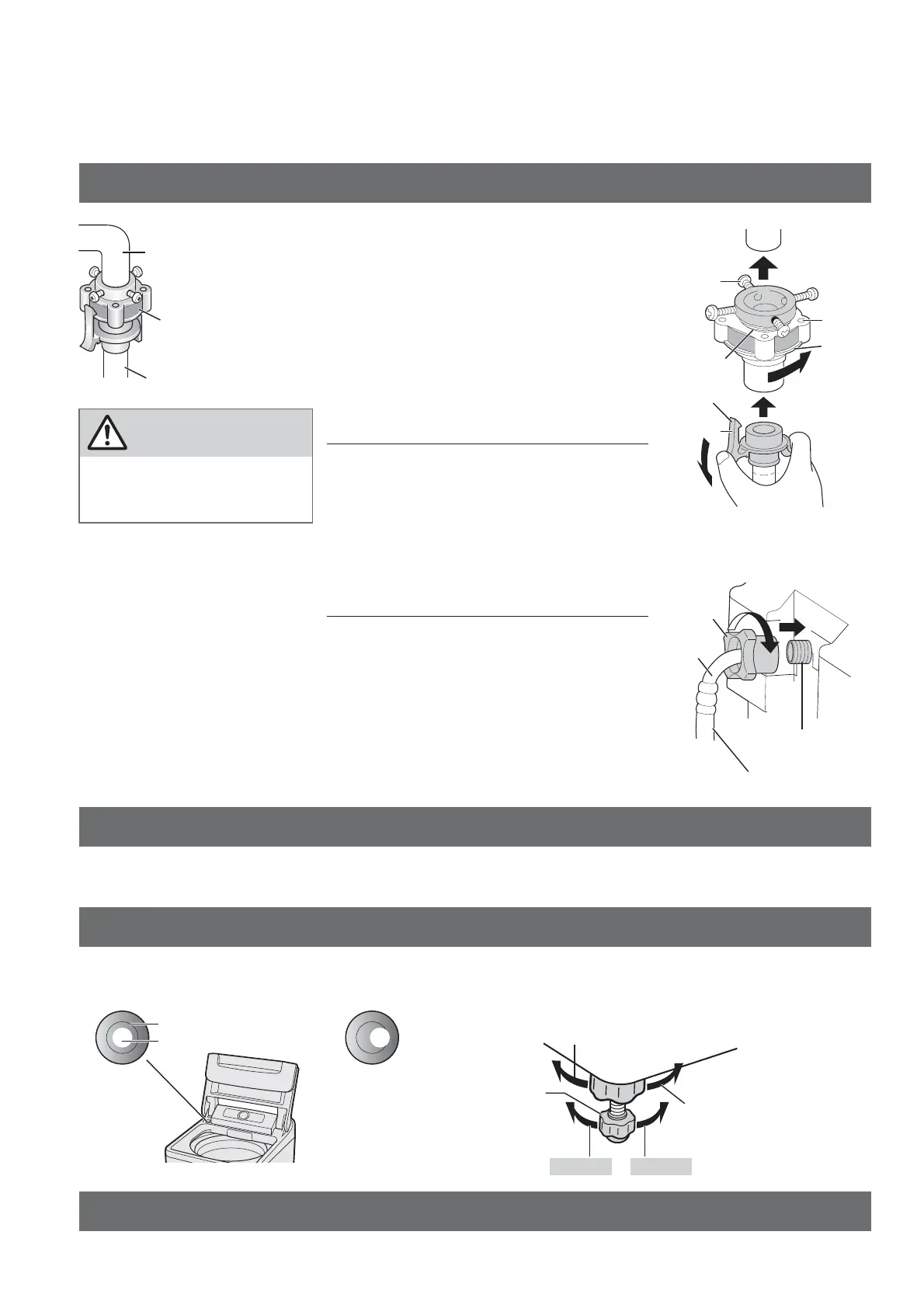

4. Connect the water tap adaptor and water supply hose.
1
Connect the water tap
adaptor to the water
faucet.
1
Turn part A to the left until approx.
4 mm of the thread becomes visible.
2
Loosen the 4 screws.
3
Connect to the faucet and tighten
the screws.
4
Turn part A to the right and tighten
securely. (To prevent water leakage)
2
Connect the water
supply hose to the water
tap adaptor.
Insert the hose into the adaptor while
pushing down the lever, and hook
the adaptor.
3
Connect the water
supply hose to the water
supply valve screw.
1
Hold the elbow and tighten the nut.
2
Check that the elbow is not loose.
Water faucet
Water supply hose
Water tap adaptor
CAUTION
Do not twist, squash, modify
or cut the hose.
Part A
Flange
Thread
Lever
Claw
Screw
5. Connect the power plug and grounding wire.
Ask a service person to do the grounding work.
In case of a 2-pin power cord, establish a ground.
6. Check that the washing machine is level.
The bubble should be at
the centre of the mark.
Leveller
Mark
Bubble
If the bubble is out of the mark
3
Turn to the right to
tighten.
1
Turn the adjustable leg knob to
the left to loosen.
2
Turn the adjustable
leg to eliminate
wobble.
To lowerTo raise
7. Perform a trial operation.
Check that there is no water leakage, abnormal sounds or error display.
Elbow
Water supply
valve screw
Nut
Water supply hose
