Mechanism
case

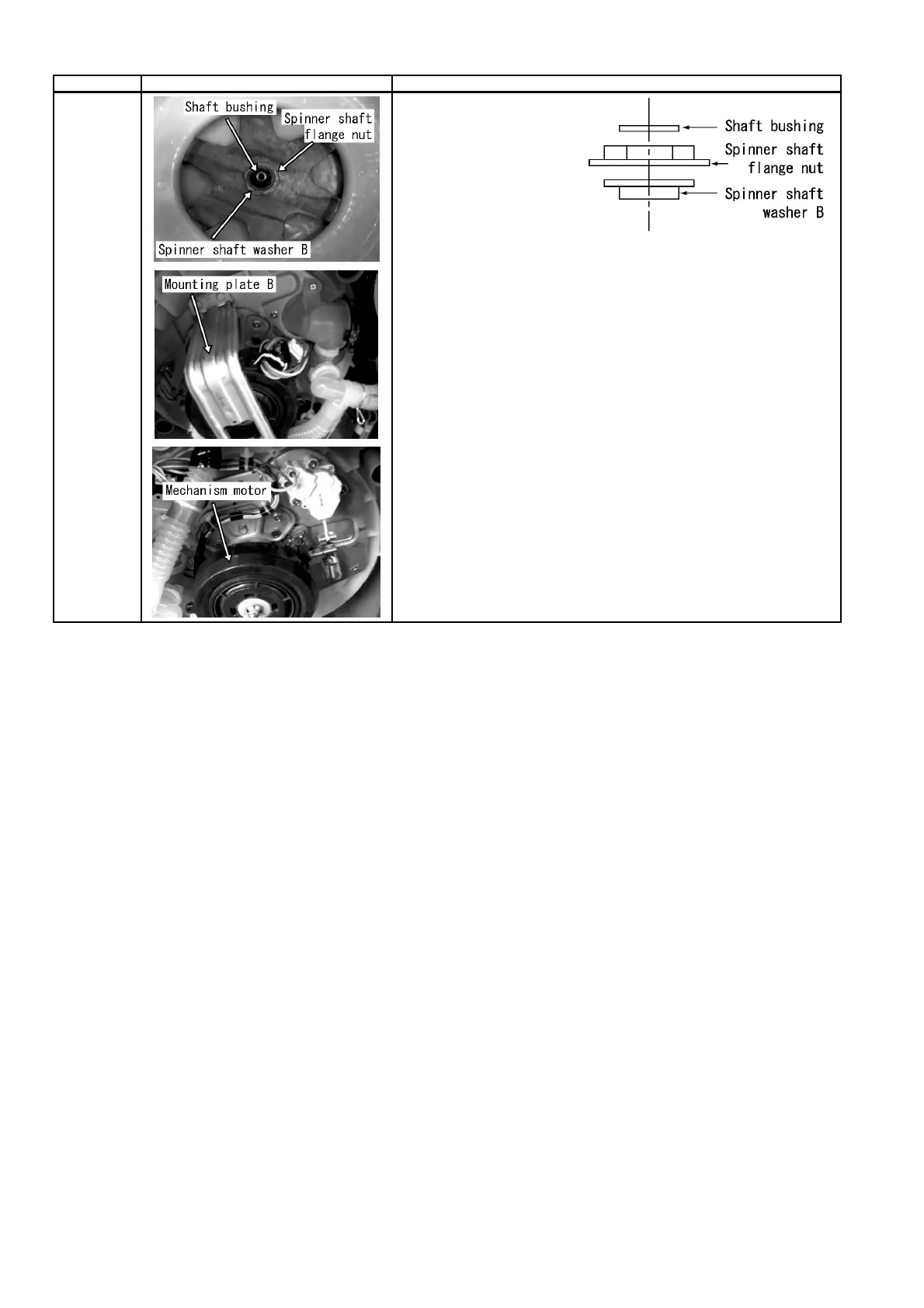

8 Remove the shaft bushing,
Spinner shaft flange nut and
the spinner shaft washer B.
9 Pull upward the tub to remove.
10 Lay down the machine on it
nothing drain hose side.
*
Please spread cloth to prevent scratch on the body.
11 Remove 2 screws mounting the mounting plate B.
12 Remove both connector for the motor and rotary detector.
13 Remove 6 screws mounting the mechanism motor.
14
