4.12. Dispensing spout cover
1. Press both sides of Dispensing spout cover slightly and
remove from front panel
Points when assembling
• Set convex A on dispensing spout cover into square hole B.
4.13 Gauge cover (Water gauge)
1. Remove A with a pointed tool sush as pin.

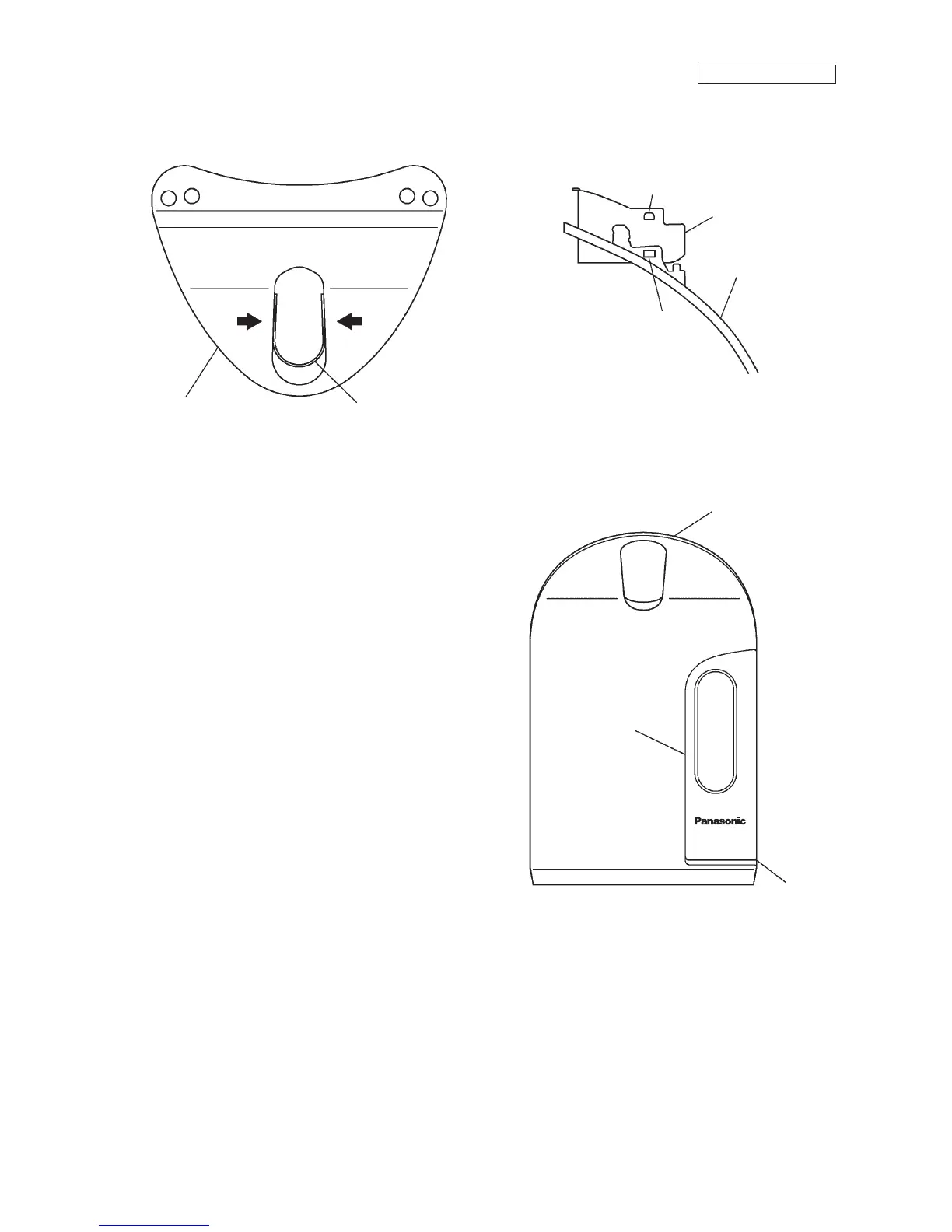

Fig-18
Dispensing spout
cover
Front panel
A
Dispensing spout
cover
A
Front panel
Front panel
Gauge cover
(Water Gauge)
B
Fig-19
PUSH PUSH
