2.2Inverterwarnings
TOPPREVIOUSNEXT

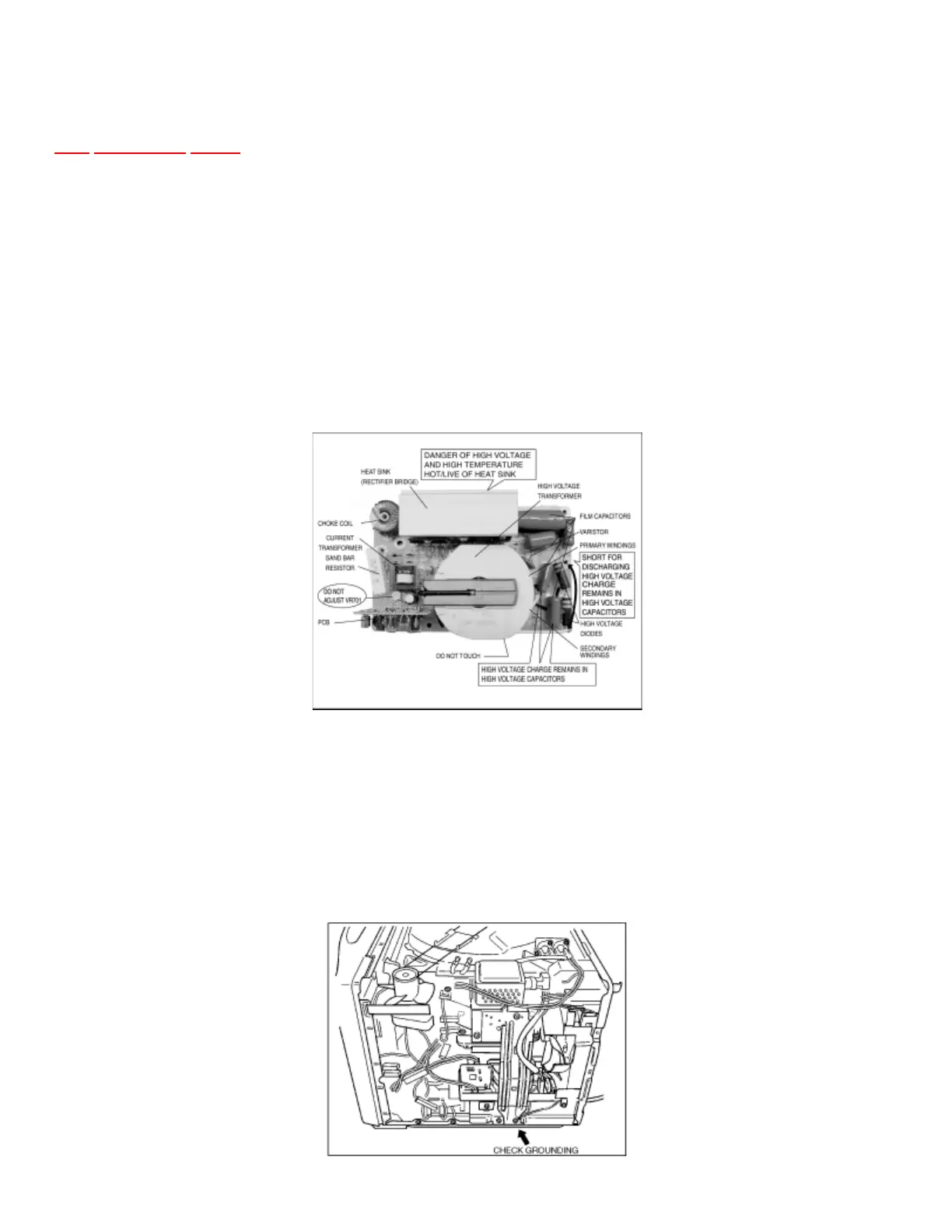

DANGER,HIGHVOLTAGEANDHIGHTEMPERATURE(HOT/LINE)OFTHE
INVERTERPOWERSUPPLY(U)
Thishighvoltageinverterpowersupplyhandlesveryhighvoltageandcurrentforthemagnetrontube.Thoughit
isfreefromdangerinordinaryuse,extremecareshouldbetakenduringrepair.
Thealuminumheatsinkisalsoenergizedwithhighvoltage(HOT),sodonottouchwhentheACinput
terminalsareenergized.ThepowerdevicesCollectorisdirectlyconnectedtothealuminumheatsink.
ThealuminumheatsinkmaybeHOTduetoheatenergy,therefore,extremecareshouldbetakenduring
servicing.
H.V.Inverterwarning
WARNINGFORINVERTERPOWERSUPPLY(U)GROUNDING
Checkthehighvoltageinverterpowersupplycircuitgrounding.Thehighvoltageinverterpowersupplycircuit
boardmusthaveaproperchassisground,theinvertergroundingbracketmustbeconnectedtothechassis.Ifthe
inverterboardisnotgroundeditwillexposetheusertoveryhighvoltagesandcauseextremeDANGER!Be
surethattheinvertercircuitisproperlygroundedviatheinverterearthbracket.
