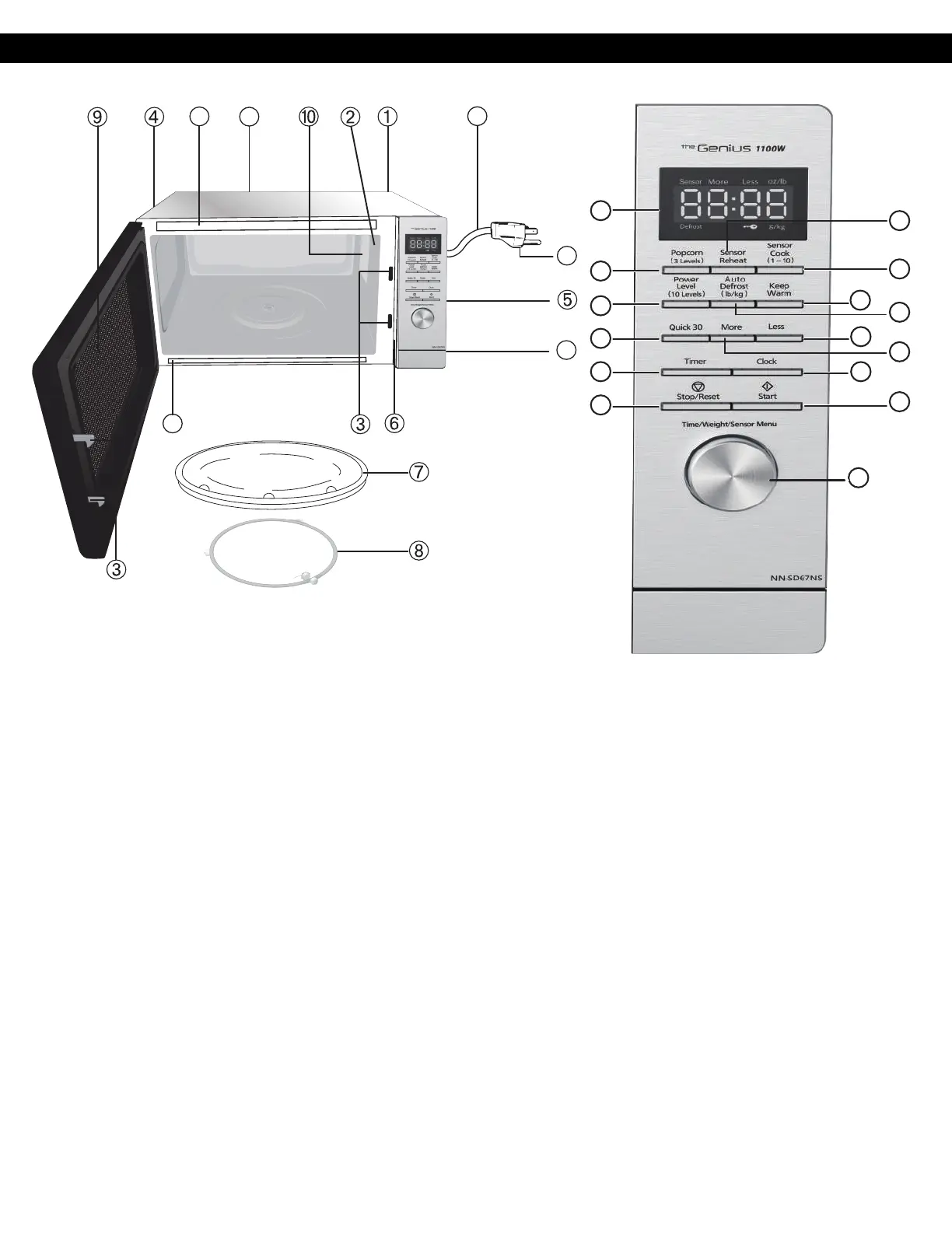

Location of Controls
1 External Air Vent
2 Internal Air Vent
3 Door Safety Lock System
4 Exhaust Air Vent
21
Auto Defrost button
(See page 13)
22 Keep Warm button (See page 11
23 Quick 30 button (See page 11)
5 Control Panel
6 Identification Plate
24 More button
25 Less button
(See page 12)
(See page 12)
Stop/Reset button is pressed
once during oven operation,
Start button must be pressed
again to restart oven.
7 Glass Tray
8 Roller Ring
9 Heat/Vapor Barrier Film
(do not remove)
10 Waveguide Cover
(do not remove)
11 Door Release Button
12 Warning label
13 Menu label
14 Power Supply Cord
15 Power Supply Plug
16 Display Window
17 Popcorn button (See page 12)
18
Sensor Reheat button
(See page 14)
19 Sensor Cook button (See page 14)
20 Power level button (See page 10)
26
Time/Weight
/Sensor Menu Dial
27
Timer button
(See page15)
28
Clock button
(See page 9)
29 Stop/Reset button
Before cooking: One tap clears
all your instructions. During
cooking: one tap temporarily
stops the cooking process.
Another tap cancels all your
instructions, and time of day
or colon appears in the display
window.
30 Start button
After cooking program setting,
one tap allows oven to begin
functioning. If door is opened or
Beep Sound:
When a button is pressed
correctly, a beep will be heard. If a
button is pressed and no beep is
heard, the unit did not or
cannot accept the instruction.
When operating, the oven will
beep twice between programmed
stages. At the end of any complete
program, the oven will beep 5
times.
NOTE:
If no operation after cooking
program setting, 6 minutes later,
the oven will automatically cancel
the cooking program. The display
will return to clock or colon
display.
