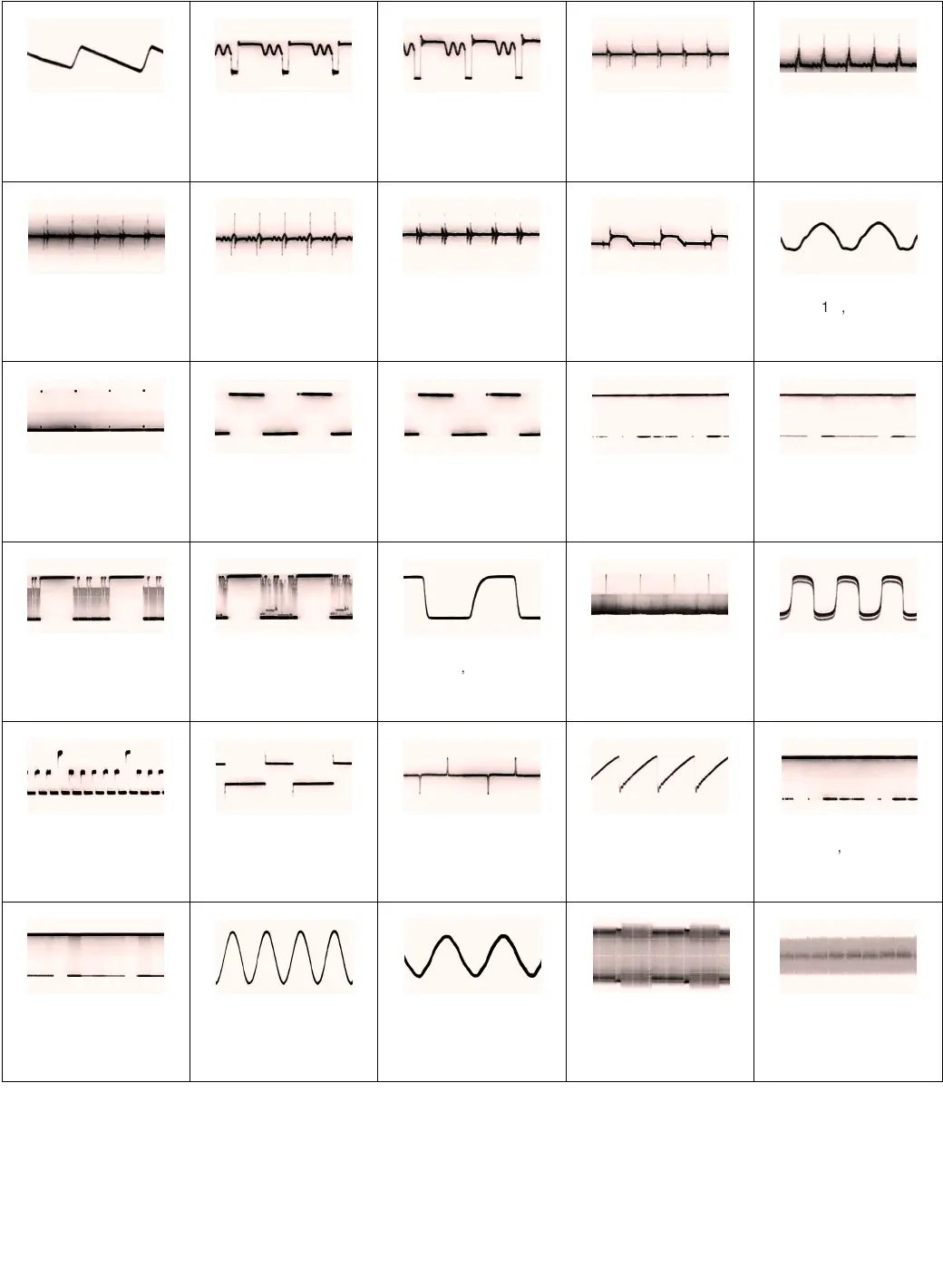

T1101-3 STOP
8.0Vp-p (2msec. div.)
T1101-7 STOP
100Vp-p (5µsec. div.)
IC1101-1 STOP
500Vp-p (5µsec. div.)
IC1101-2 STOP
11Vp-p (10µsec. div.)
IC1101-4 STOP
0.8Vp-p (10µsec. div.)
IC1101-5 STOP
1.4Vp-p (10µsec. div.)
IC1101-6 STOP
4.0Vp-p (10µsec. div.)
IC1101-7 STOP
0.6Vp-p (10µsec. div.)
Q1111-1 STOP
0.5Vp-p (5µsec. div.)
IC2501-1,2,16 REC
9.0Vp-p (2msec. div.)
IC6001-13 PAUSE
4.8Vp-p (10msec. div.)
IC6001-15 REC
4.8Vp-p (10msec. div.)
IC60001-18 REC
5.0Vp-p (10msec. div.)
IC6001-68,69 REC
5.0Vp-p (5msec. div.)
IC6001-70 REC
5.0Vp-p (5msec. div.)
IC6001-71 REC
5.0Vp-p (5msec. div.)
IC6001-72 REC
5.0Vp-p (5msec. div.)
IC6001-79,80 FF/REW
5.0Vp-p (1msec. div.)
IC6001-84 REC
5.0Vp-p (10msec. div.)
IC6001-85 REC
0.8Vp-p (5msec. div.)
IC6001-86 REC
5.0Vp-p (10msec. div.)
IC6001-91,92 REC
6.0Vp-p (10msec. div.)
IC6001-97 PLAY
4.2Vp-p (10msec. div.)
IC7501-4 STOP
2.2Vp-p (0.2µsec. div.)
IC7501-13,14 STOP
5.0Vp-p (5msec. div.)
IC7501-15 STOP
5.0Vp-p (5msec. div.)
IC3001-2 REC
1.5Vp-p (5msec. div.)
IC3001-4 PLAY
5.0Vp-p (5msec. div.)
IC3001-14 REC
0.4Vp-p (5msec. div.)
IC3001-15 PLAY
0.6Vp-p (20µsec. div.)
