Panasonic NV-HD642EE - Page 3

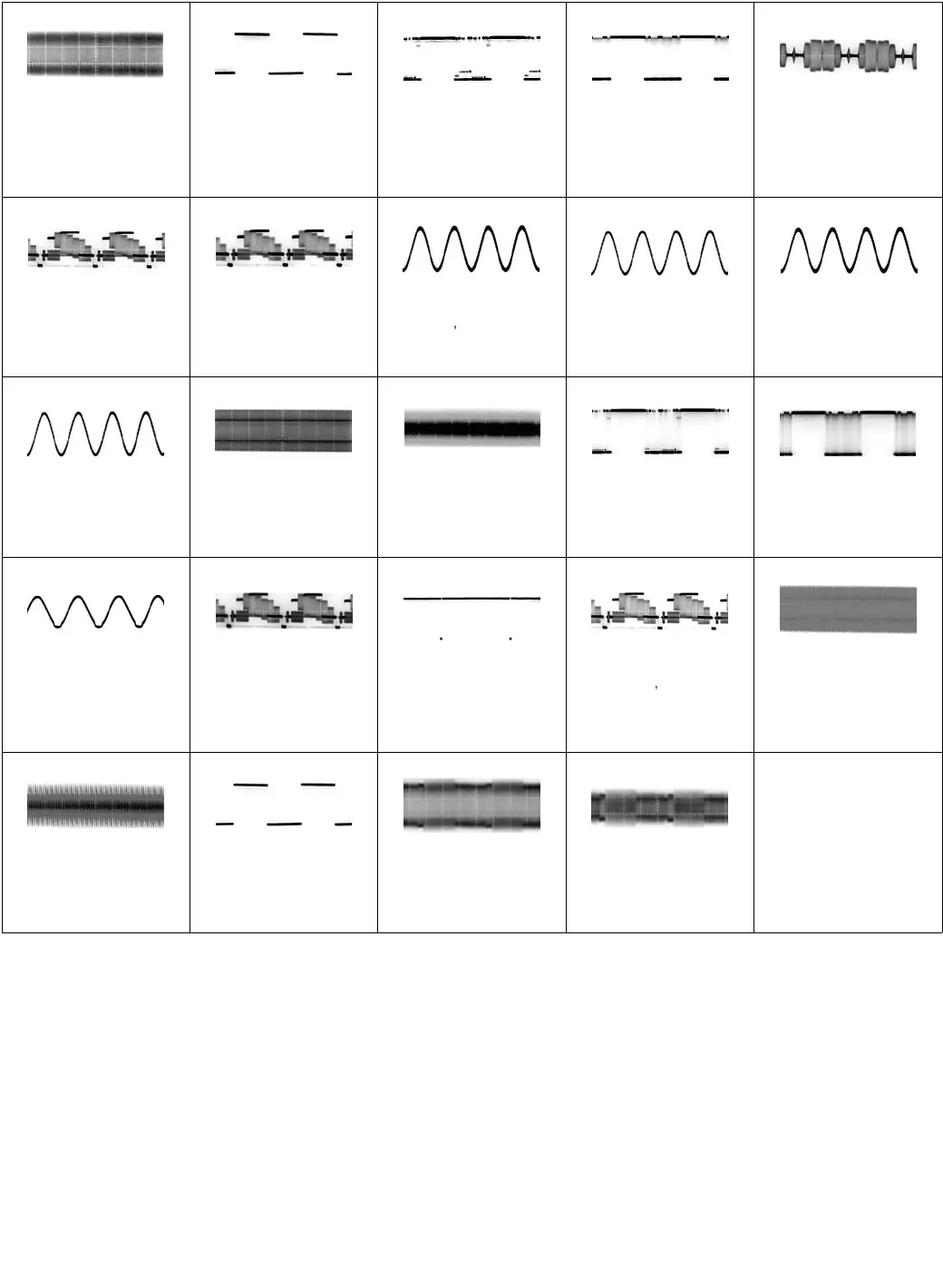

IC3001-20 PLAY
150mVp-p
(20µsec. div.)
IC3001-24 REC/PLAY
5.0Vp-p (10msec. div.)
IC3001-37 REC/PLAY
5.0Vp-p (5msec. div.)
IC3001-38 REC/PLAY
5.0Vp-p (5msec. div.)
IC3001-42,43 PLAY
0.4Vp-p (20µsec. div.)
IC3001-48 REC
1.0Vp-p (20µsec. div.)
IC3001-52 REC/PLAY
2.0Vp-p (20µsec. div.)
IC4001-5,6 REC
1.2Vp-p (5msec. div.)
IC4001-15,16 REC/PLAY
1.2Vp-p (5msec. div.)
IC4001-20 REC
1.2Vp-p (5msec. div.)
IC4001-21 REC/PLAY
1.2Vp-p (5msec. div.)
IC4001-36 REC
0.6Vp-p (20µsec. div.)
IC4001-37 PLAY
0.5Vp-p (20µsec. div.)
IC4001-41 REC/PLAY
5.0Vp-p (5msec. div.)
IC4001-42 REC/PLAY
5.0Vp-p (5msec. div.)
Q4005-C REC
Q4007-C REC
9.0Vp-p (5µsec. div.)
Q4907-B REC/PLAY
Q4909-B REC/PLAY
1.0Vp-p (20µsec. div.)
PK7701-8,9 REC/PLAY
5.0Vp-p (10msec. div.)
PK7702-13,15 REC/PLAY
2.0Vp-p (20µsec. div.)
P501-3 REC
0.3Vp-p (20µsec. div.)
P501-4 PLAY
1.2Vp-p (20µsec. div.)
P501-9 REC/PLAY
5.0Vp-p (10msec. div.)
P501-10 REC
0.3Vp-p (5msec. div.)
P501-11 PLAY
0.5Vp-p (5msec. div.)
