Panasonic NV-VP30EB - Connections and External Units; Rear Panel Sockets

NV-VP30
NV-VP30
REC
EXT LINK CH
TIMER REC
Sockets
VCR/DVD OUT
DVD OUT
OPTICAL AUDIO VIDEO S VIDEO
RL
AUDIO VIDEO
RL
DIGITALAUDIO OUT
(PCM/BITSTREAM)
CLASS 1
LASER PRODUCT
AC IN ~
AV 1
(TV)
AV 2
(DECODER/
EXT)
RF IN
RF OUT
10
11
1
84 765 9
AUDIO OUT
R
L
VIDEO
OUT
AudioVideo
External equipment
(e.g. Video movie
camera)
9
32
Front AV
AV3 IN
12 13 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14

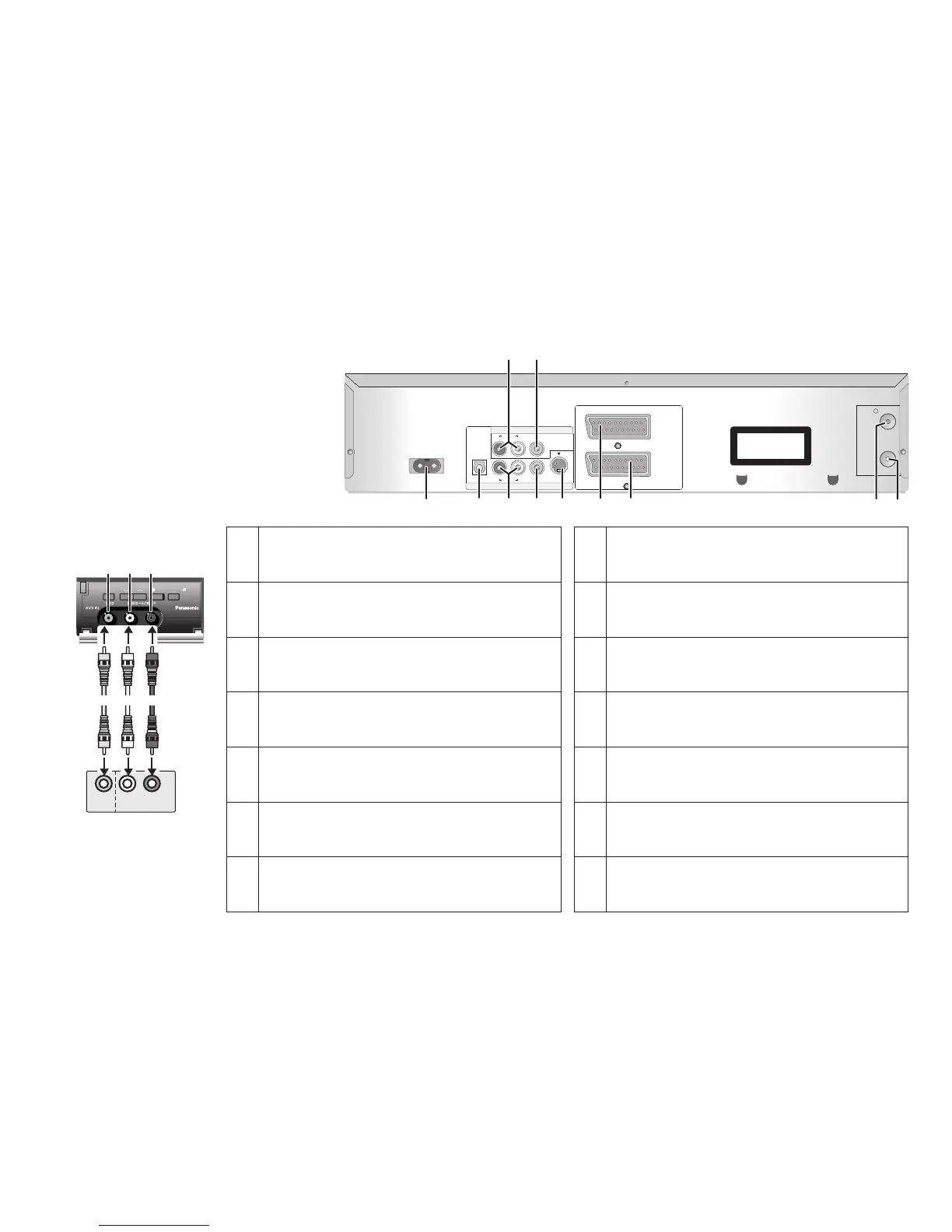

AC Input socket (Power supply)
AV2 21-pin Scart socket
AV1 21-pin Scart socket
RF IN socket (Aerial input)
RF OUT socket (Aerial output)
DVD AUDIO OUT socket
L = AUDIO output left channel
R = AUDIO output right channel
AV3 AUDIO IN socket
left channel (Mono)
AV3 AUDIO IN socket
right channel
AV3 VIDEO IN socket
VCR/DVD AUDIO OUT socket
L = AUDIO output left channel
R = AUDIO output right channel
VCR/DVD VIDEO OUT socket
DVD VIDEO OUT socket
DVD Optical Digital Out terminal
DVD S-VIDEO OUT socket
Rear panel
