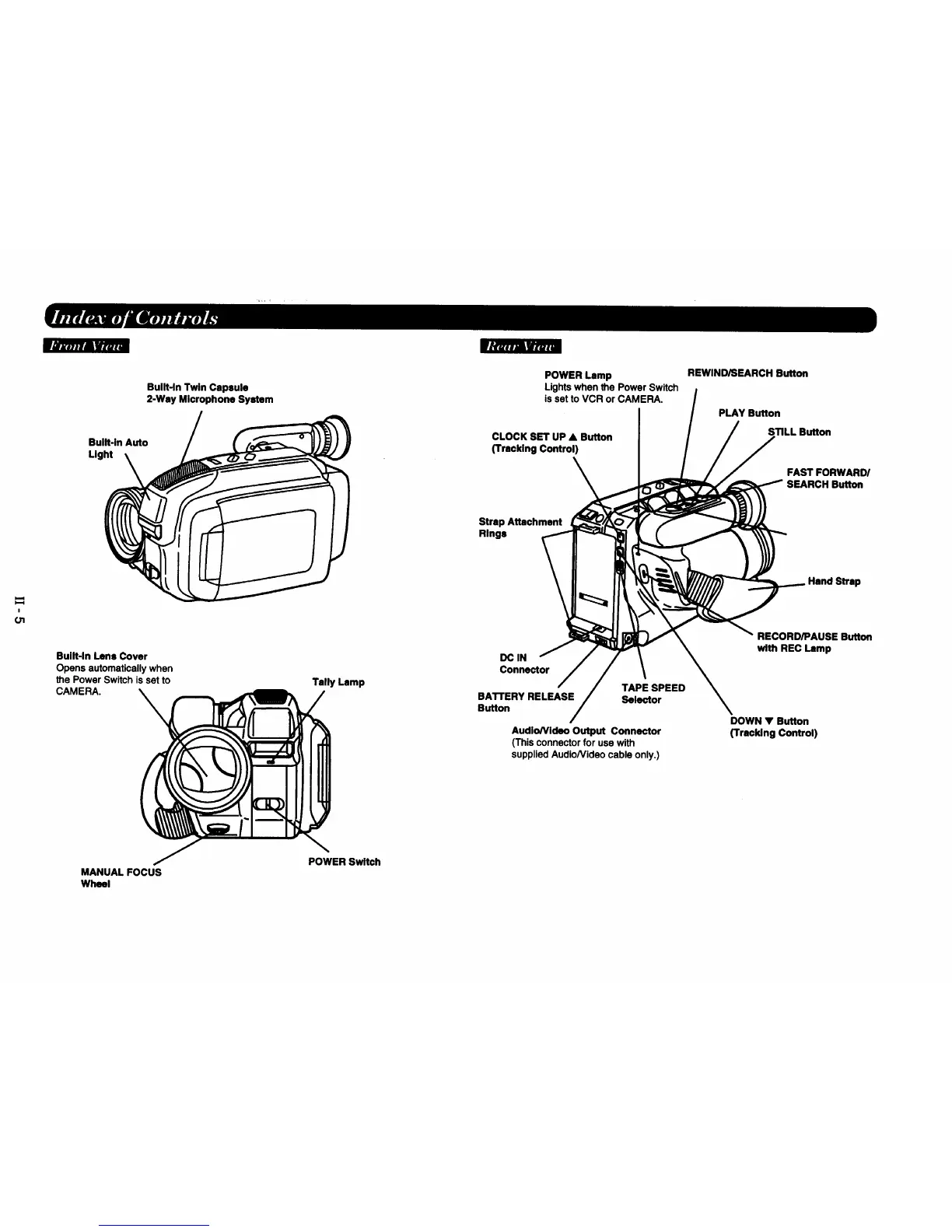

Panasonic Palmcoder PV-L557 - Tape Speed; Device Controls and Indicators

m Lu
mm_
Built-in Twin Capsule
2-Way Microphone System
Built-in Auto
Light
POWER Lamp
Lights when the Power Switch
is set to VCR or CAMERA.
CLOCK SET UP • Button
(Tracking Control)
REWIND/SEARCH Button
PLAY Button
STILL Button
FAST FORWARD/
SEARCH Button
Strap Attachment
Rings
I
Built-In Lens Cover
Opensautomaticallywhen
the PowerSwitch isset to
CAMERA.
Tally Lamp
DC IN
Connector
BATrERY RELEASE
Button
TAPE SPEED
Sek_'tor
Audio/video Output Connector
(This connectorfor use with
suppliedAudio/Videocable only.)
Hand Strap
RECORD/PAUSE Button
with REC Lamp
DOWN • Button
(Tracking Control)
MANUALFOCUS
Wheel
POWER Switch
