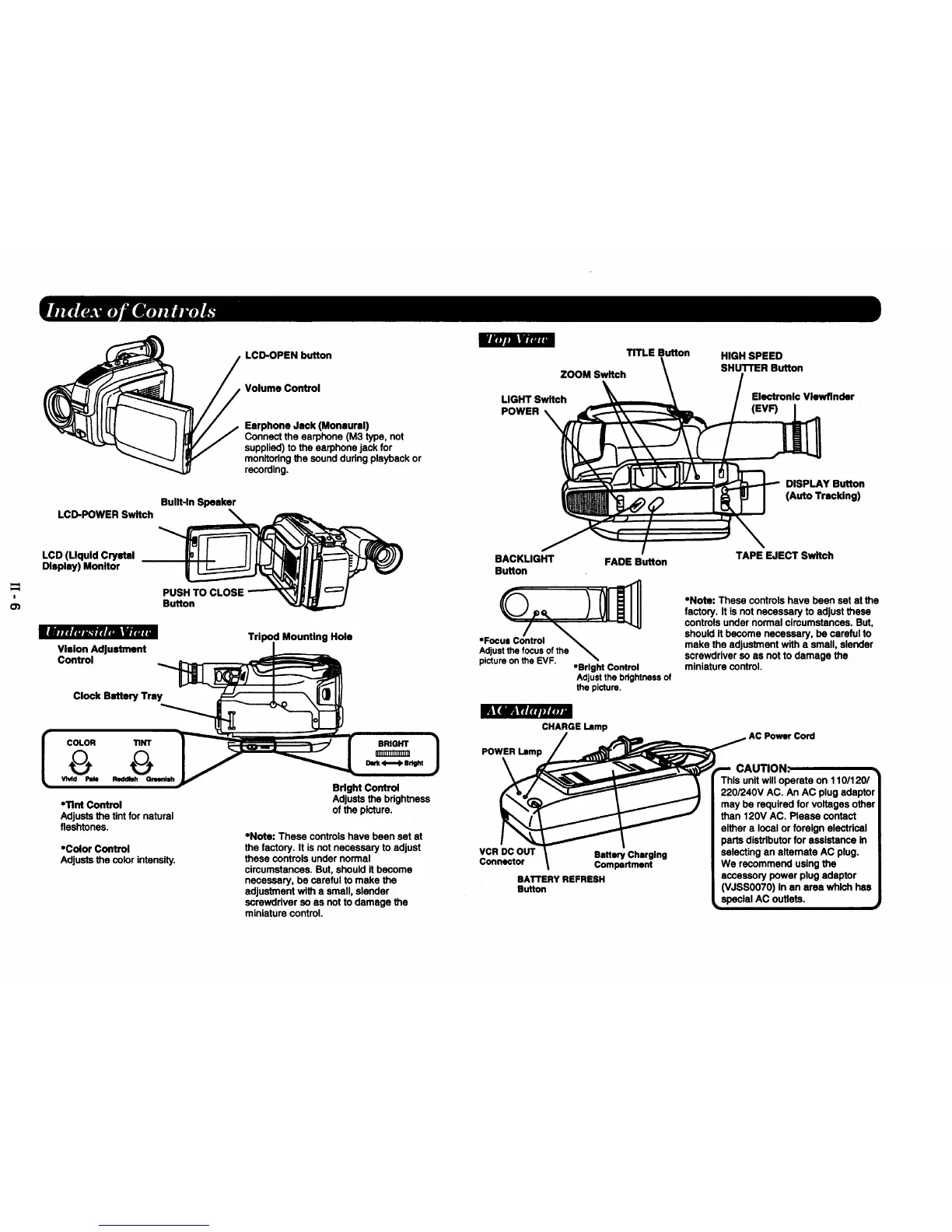

m W_r.,
LCD-POWER Switch
Built-In Speaker
LCD-OPEN button
Volume Control
Earphone Jack (Monaural)
Connect the earphone (M3 type, not
supplied) to the earphone jack for
monitoring the sound during playback or
recording.
TITLE Button
ZOOM Switch
LIGHT Switch
POWER
HIGH SPEED
SHUTrER Button
Electronic Vlewflnder
(EVF)
DISPLAY Button
(Auto Tracking)
LCD (Uquld Crystal
Display) Monitor
Vision Adjustment
Control
Clock Battery Tray
PUSH TO CLOSE
BuRon
Tripod Mounting Hole
BACKLIGHT FADE Button
Bu_on
*Focus Control
Adjust the focus of the
picture on the EVF.
*Bright Control
Adjust the brightnessof
the picture.
TAPE EJECT Switch
*Note: These controlshave been setat the
factory. It isnot necessaryto adjustthese
controlsunder normalcircumstances.But,
should it become necessary, becareful to
make the adjustmentwith a small, slender
screwdriverso as not to damage the
miniaturecontrol.
liT_i tlWff;pm;
COLOR TINT
G G
*Tint Control
Adjusts the tint for natural
fleshtones.
*Color Control
Adjuststhe color intensity.
BRIGHT
l)ltk e--J> Bdght
Bright Control
Adjusts the brightness
of the picture.
*Note: These controlshave been set at
the factory.It is not necessaryto adjust
these controlsundernormal
circumstances.But,should itbecome
necessary, be carefulto make the
adjustmentwith a small,slender
screwdriverso as notto damage the
miniaturecontrol.
CHARGE Lamp
POWER Lamp
VCR DC OUT Battery Charging
Connector Compartment
BATTERY REFRESH
Button
AC Power Cord
CAUTION:
This unit will operate on 110/120/
220/240V AC. An AC plug adaptor
may be required for voltages other
than 120V AC. Please contact
either a local or foreign electrical
parts distributor for assistance in
selecting an alternate AC plug.
We recommend using the
accessory power plug adaptor
(VJSS0070) In an area which has
special AC outlets.
