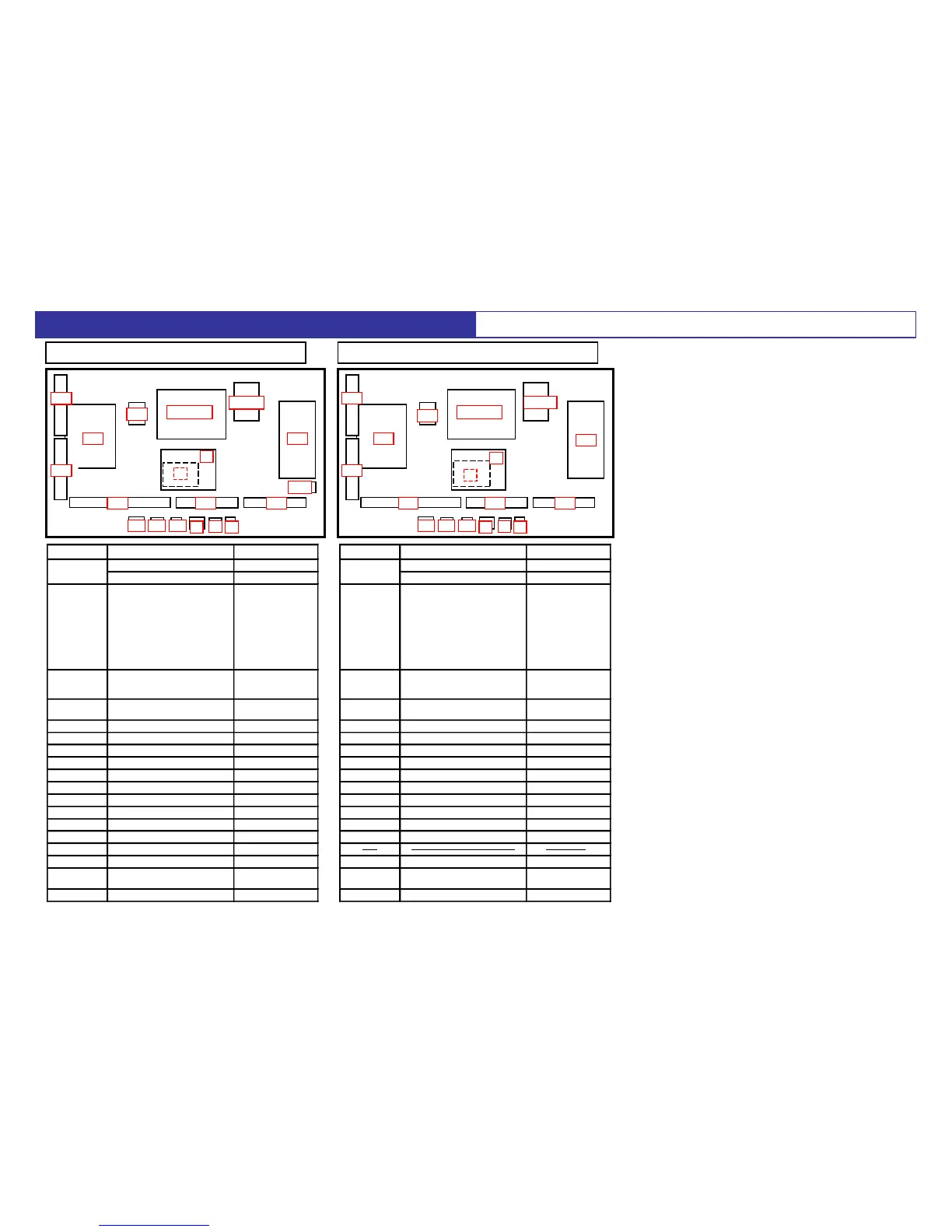

Panasonic PDP 2008 models - PCB Location & Function

6
(1) PZ850 Series 2. PCB Location & Function
SD
SC SS
SS2
SU
PB
A
S
K
G
D
C1 C2
GL GS GH
C3
P(MAIN)
P(AC)
SD
SC
SU
S
K
G
GL GS GH
C1 C2 C3
P(MAIN)
P(AC)
SS
PB
A
D
ＴＨ－５０ＰＺ８５０ＴＨ－５０ＰＺ８５０ ＴＨ－４６ＰＺ８５０ＴＨ－４６ＰＺ８５０
Board Name Function Part Number
P Power Supply
（
MAIN
）
ETX2MM704MGH
Power Supply
（
AC
）
ETX2MM704MGB
A
DC-DC Converter
Speaker out
Sound Processor
AV Terminal
AV Switch
Digital Signal Processor
Micon, HDMI Interface
Peaks Pro,GC6
TNPH0736ABS
D
Format Converter
Plasma AI
Sub-Field Processor
TNPA4439AJS
K
Remote receiver
Power LED
TNPA4525S
S Power Switch TNPA4536S
GS SD Card Slot TNPA4519ACS
GL SD Blue LED TNPA4523ACS
C1 Data Driver (Lower Right) TXNC11RJTU
C2 Data Driver (Lower Center) TXNC21RJTU
C3 Data Driver (Lower Left) TXNC31RJTU
SC Scan Drive TXNSC1RJTUS
SU Scan out (Upper) TXNSU1RJTU
SD Scan out (Lower) TXNSD1RJTU
SS Sustain Drive TXNSS1RJTU
SS2 Sustain connector TNPA4405S
GH HDMI4 in TNPA4603ADS
G
Front Terminal
Key Switch
TNPA4526S
PB Fan control TNPA4243ABS
Board Name Function Part Number
P Power Supply
（
MAIN
）
ETX2MM704MGH
Power Supply
（
AC
）
ETX2MM704MGB
A
DC-DC Converter
Speaker out
Sound Processor
AV Terminal
AV Switch
Digital Signal Processor
Micon, HDMI Interface
Peaks Pro,GC6
TNPH0736S
D
Format Converter
Plasma AI
Sub-Field Processor
TNPA4439AKS
K
Remote receiver
Power LED
TNPA4525S
S Power Switch TNPA4536S
GS SD Card Slot TNPA4519ACS
GL SD Blue LED TNPA4523ACS
C1 Data Driver (Lower Right) TXNC11RKTU
C2 Data Driver (Lower Center) TXNC21RKTU
C3 Data Driver (Lower Left) TXNC31RKTU
SC Scan Drive TXNSC1RKTUS
SU Scan out (Upper) TXNSU1RKTU
SD Scan out (Lower) TXNSD1RKTU
SS Sustain Drive TXNSS1RKTU
GH HDMI4 in TNPA4603ADS
G
Front Terminal
Key Switch
TNPA4526S
PB Fan control TNPA4243ADS
