Chapter 7 Appendix — Technical information
ENGLISH - 197
r Lens control command
Command Sub command Details Remark
VXX LNSI2 Lens H shift
+00000 = Fine adjustment 1+, +00001 = Fine adjustment 1
-
, +00100
= Fine adjustment 2+, +00101 = Fine adjustment 2
-
, +00200 = Coarse
adjustment+, +00201 = Coarse adjustment
-
VXX LNSI3 Lens V shift
VXX LNSI4 Lens focus
VXX LNSI5 Lens zoom

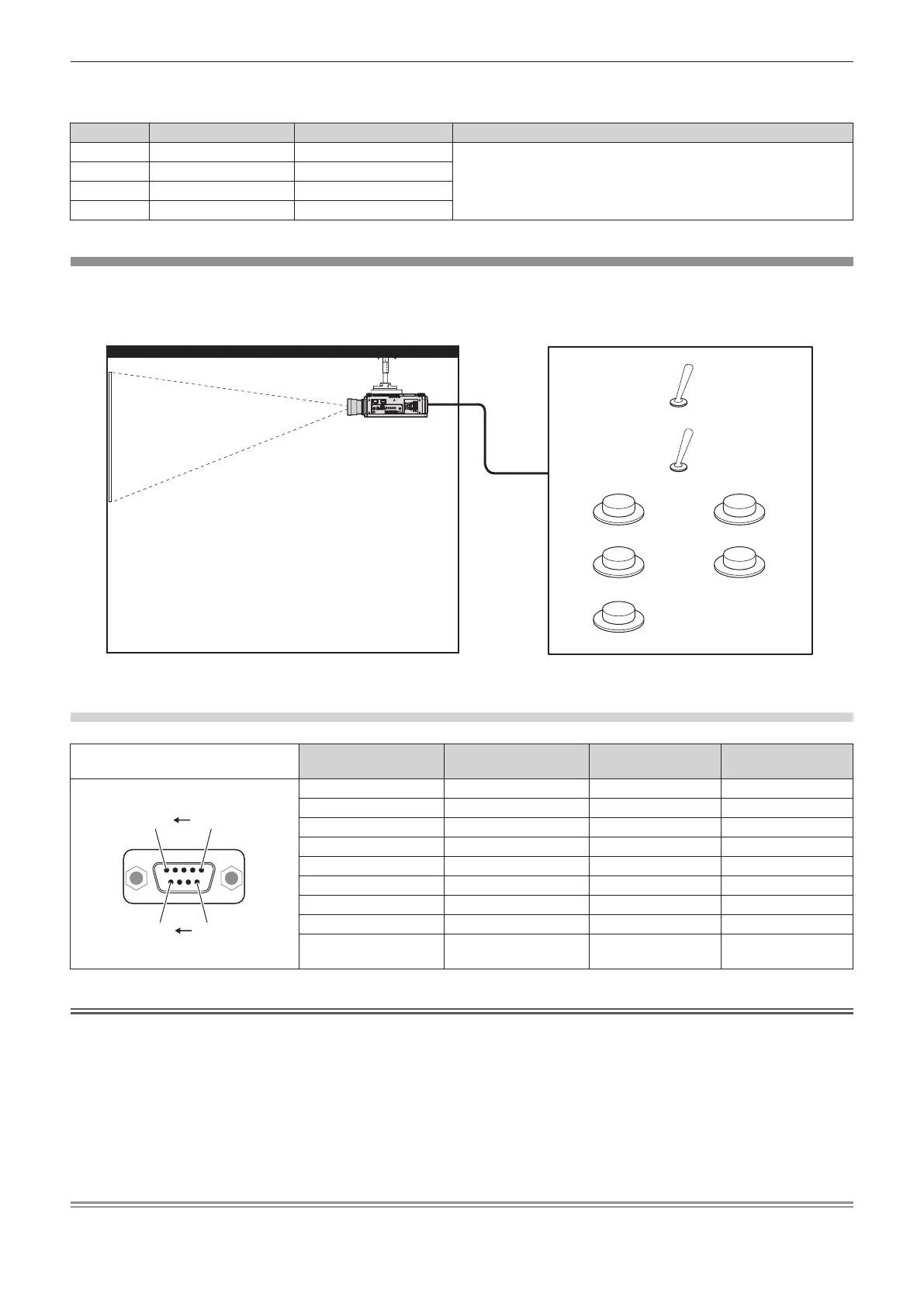

<REMOTE 2 IN> terminal
It is possible to control the projector remotely (by contact control) from a control board located away from the
projector where remote control signals cannot reach.
Use the <REMOTE 2 IN> terminal on the connecting terminals of the projector to connect to the control board.
Remote control Contact control
Remote control/contact control
Standby Lit
Light source
RGB1 DIGITAL LINK
RGB2 HDMI
DVI-D
Installation locations in meeting rooms, etc. Remote control board in another location
Pin assignments and signal names
D-Sub 9-pin
Outside view
Pin No. Signal name Open (H) Short (L)
(9) (6)
(5) (1)
(1) GND ― GND
(2) POWER OFF ON
(3) RGB1 Other RGB1
(4) RGB2 Other RGB2
(5) DIGITAL LINK Other DIGITAL LINK
(6) HDMI Other HDMI
(7) DVI-D Other DVI-D
(8) SHUTTER OFF ON
(9) RST/SET
Controlled by remote
control
Controlled by external
contact
Attention
f When controlling, make sure to short-circuit pins (1) and (9).
f When pins (1) and (9) are short-circuited, the following buttons on the control panel and the remote control are disabled. Commands for
RS-232C and network functions corresponding to these functions are also disabled.
g Power on <b> button, power standby <v> button, <SHUTTER> button
f When pins (1) and (9) are short-circuited, and then any pins from (3) to (7) and the pin (1) are short-circuited, the following buttons on the
control panel and the remote control are disabled. Commands for RS-232C and network functions corresponding to these functions are also
disabled.
g Power on <b> button, power standby <v> button, <RGB1> button, <RGB2> button, <RGB1/2> button, <DVI-D> button, <HDMI> button,
<DIGITAL LINK> button, <SDI> button, <SHUTTER> button
(SDI input is supported only for PT-RZ970.)
Note
f To change the settings of pins (2) to (8), set the [PROJECTOR SETUP] menu → [REMOTE2 MODE] to [USER]. (x page 137)
