Panasonic PT-VX500U

-26-
Mechanical Disassembly

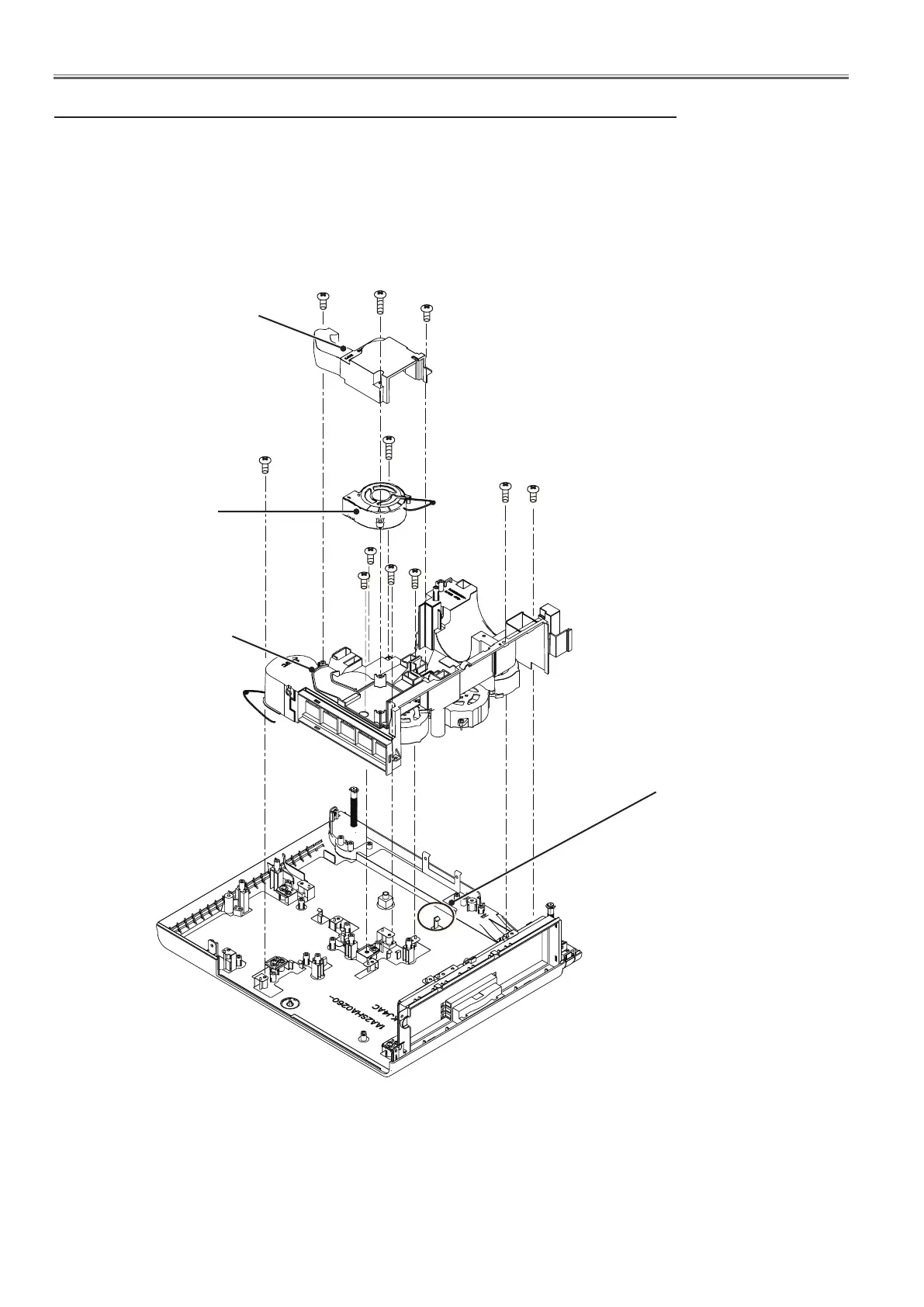

7. Fan(FN907) and duct assy removal
1. Remove 2 screws-A (T3x8) and 1 screw-B (T3x14) to remove the MTG.DCT PBS.
2. Remove 1 screw-C (T3x14) to remove FN907.
3. Remove 3 screw-D (T3x10) and 4 screws-E(T3x8) and 1 hook F to remove MTG DCT LCD.
A
A
B
C
D
D
D
E
E
E
E
MTG DCT PBS
FN907
MTG DCT
LCD
Hook F
Fig.7
