Mechanical Disassembly
Fig.7-1

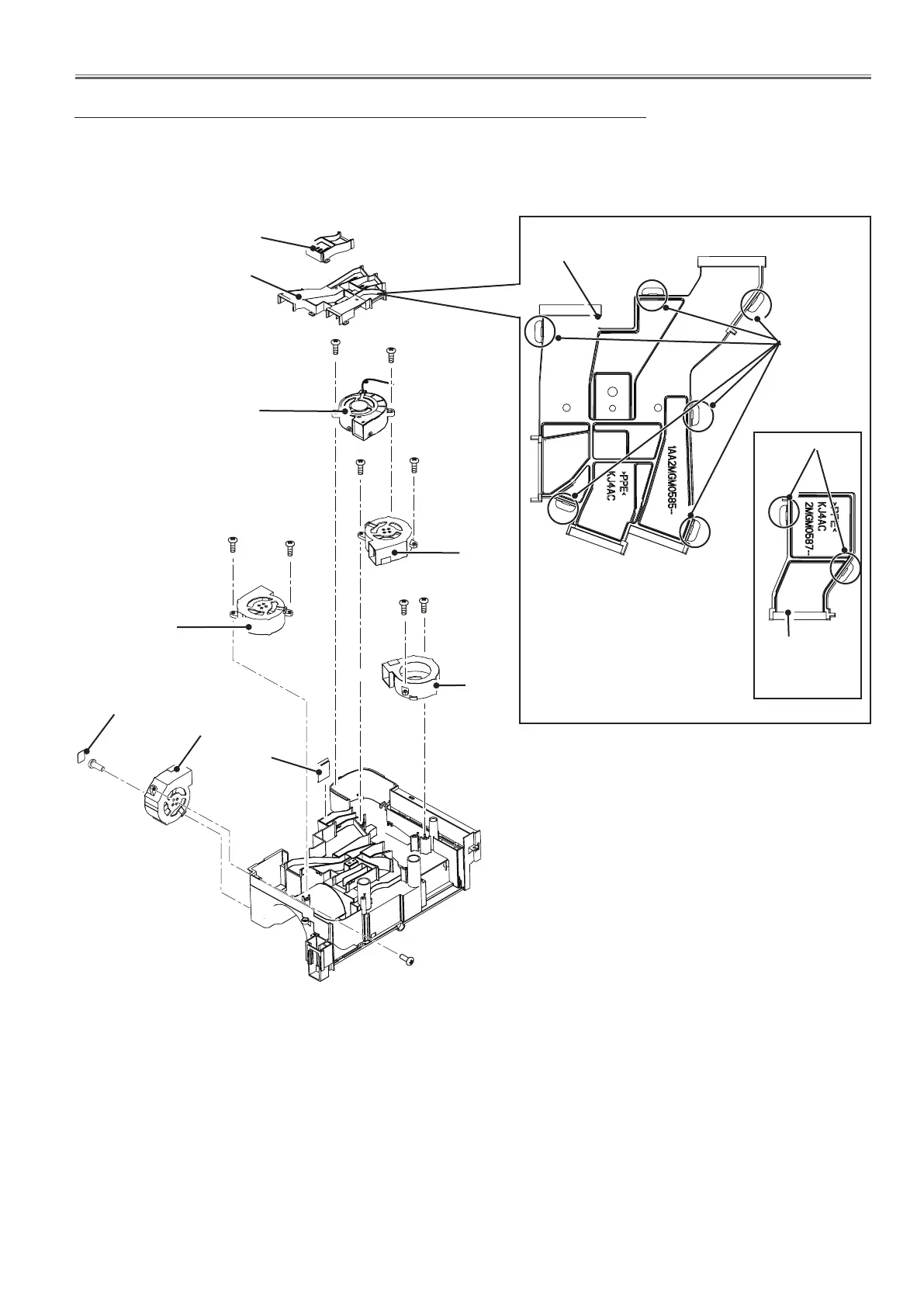

7-1. Duct and fans removal
1. Loosen 8 hooks to separately remove the MTG DCT PBS and MTG DCT LCD.
2. Remove 6 screws-A (T3x12) to remove the FN906,FN905,FN903 and FN901.
3. Pull out the spacer sheet DCT LCD, then remove 2 screws-B (T3x12) to
remove the FN904.
FN906
FN905
FN903
FN901
FN904
Spacer sheet DCT LCD
MTG DCT LCD
MTG DCT PBS
Shiled
DCT LCD
A
Hooks
MTG DCT
PBS
MTG DCT LCD
Hooks
A
A
A
A
A
A A
B
B
