3.3. Procedure for Removing Tape
3.3.1. Procedure for Removing the tape manually
Please removing the tape by the following procedure when the disc cannot be removeing due to the breakdown of the electrical
system etc.

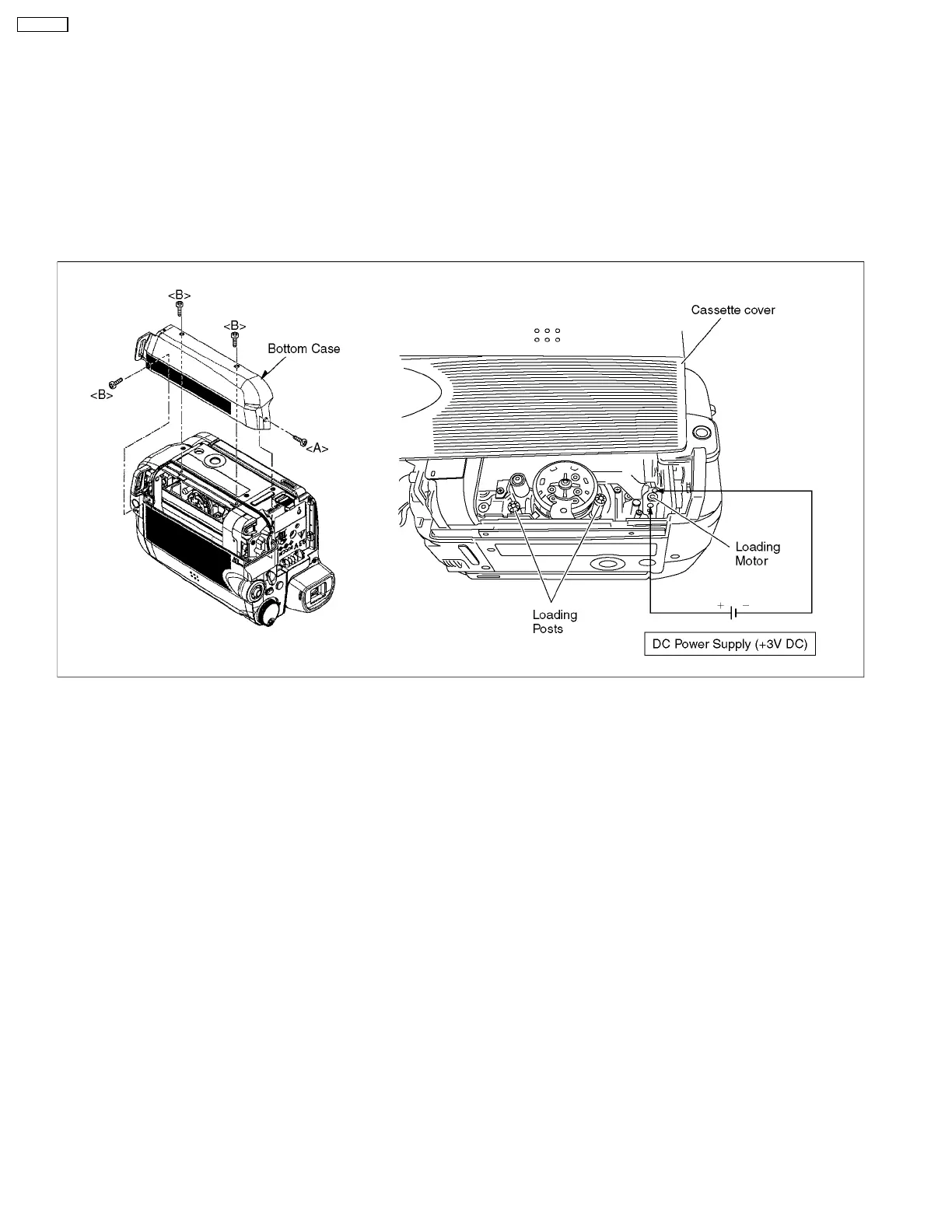

1. Remove the 1 Screw (A) and 3 Screws (B).
2. Remove the Bottom Case, and open the Cassette Cover.
3. Connect two batteries (1.5V spec.) to the Loading Motor in series for supplying 3.0V to rotate the Loading Motor as shown
below.
4. Remove the tape.
