Panasonic REV-1 - Fault Indication Codes and Remedies

< FIP >
INDICATION CAUSE
REMEDYICHECK
u 10
Dew formation.
Wait until the indication disappears.
After cylinder lock is detected, the cylinder
Check the cylinder unit and the cylinder
H 01 does not start rotating again even after
motor drive circuit.
I
tape unloading.
H 02
Cassette tape is not wound up during tape
Check the capstan unit and the capstan
unloading except Eject mode.
motor drive circuit.
Mechanism locks during mode transition
1. Check the loading motor drive circuit.
F 03 except Eject mode.
2. Check the mechanism phase alignment.
3. Check the mode switch.
F 04
Mechanism locks during tape unloading.
1. Check the loading motor drive circuit.
2. Check the mechanism phase alignment.
Mechanism locks after tape unloading in
1. Check the loading motor drive circuit.
F 06
Eject mode.
2. Check the mechanism phase alignment
for cassette holder unit.
During recording mode recording signal is
Protection of the overcurrent flowing in
F 07 less than the normal condition.
transistor which produce the power supply
for recording mode.
Recording circuit works except recording
F 08
Check the recording circuit.
mode.
Cylinder lock detection.
H 16
Check the cylinder unit and the cylinder
motor drive circuit.
Supply reel mechanism lock detection.
H 17
Check the supply reel mechanism and the
supply reel circuit.
Take-up reel mechanism lock detection.
H 18
Check the take-up reel mechanism and
the take-up reel circuit.

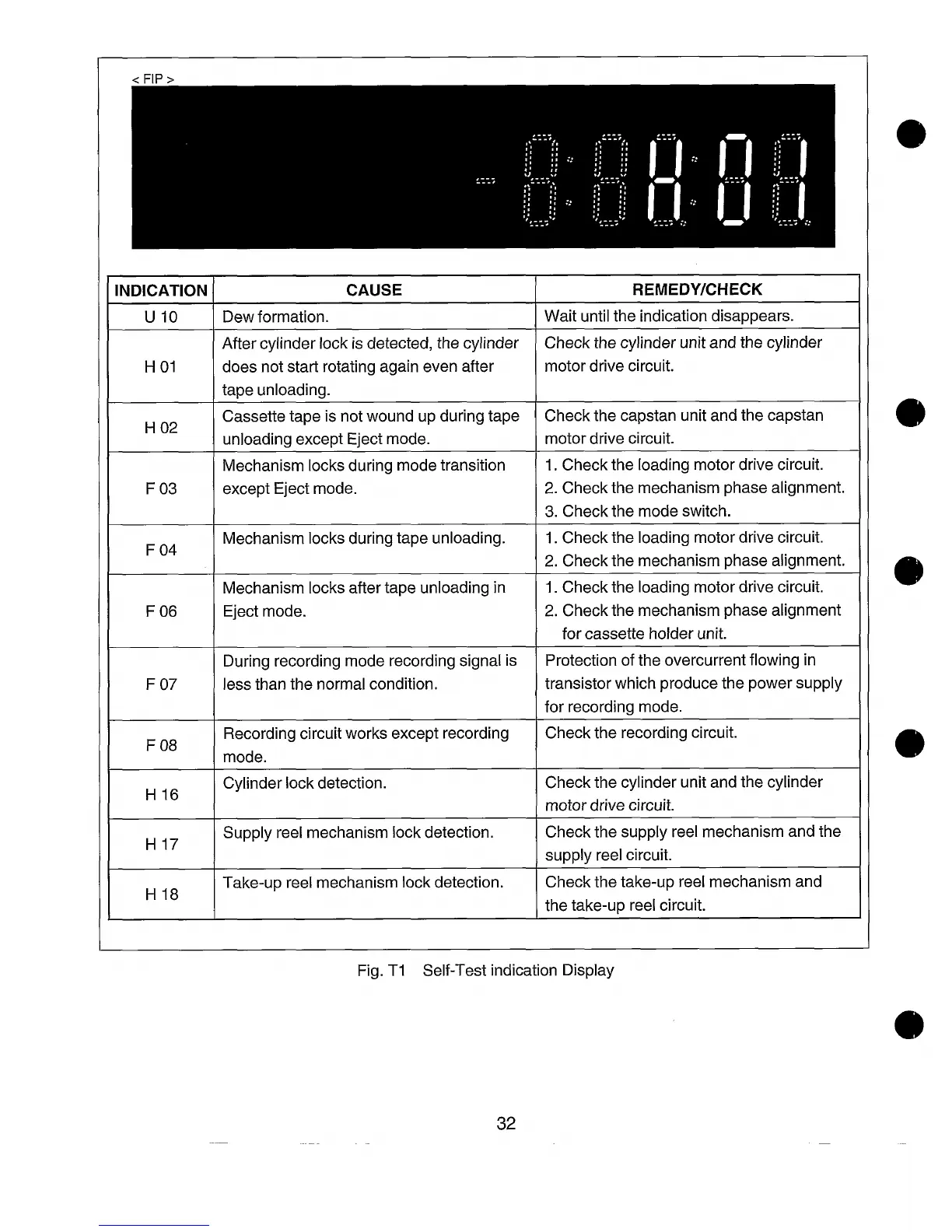

Fig. T1 Self-Test indication Display
