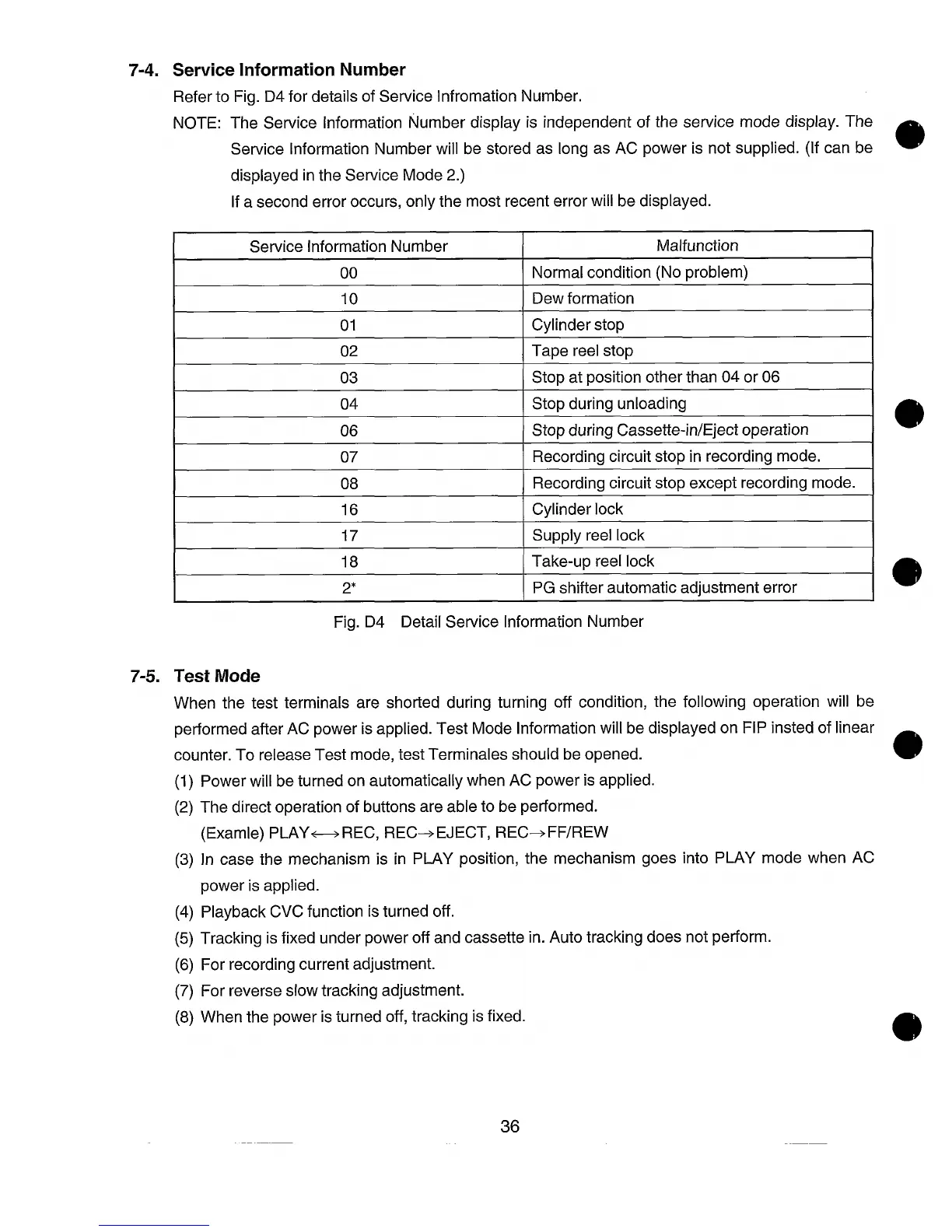

7-4. Service Information Number
Refer to Fig. D4 for details of Service Infromation Number.
NOTE: The Service Information Number display is independent of the service mode display. The
Service Information Number will be stored as long as AC power is not supplied. (If can be
displayed in the Service Mode 2.)
If a second error occurs, only the most recent error will be displayed.
Service Information Number
Malfunction
00
Normal condition (No problem)
10 Dew formation
I
01
] Cylinder stop
02
Tape reel stop
03 Stop at position other than 04 or 06
04 Stop during unloading
06
Stop during Cassette-in/Eject operation
07
Recording circuit stop in recording mode.
08
Recording circuit stop except recording mode.
16 Cylinder lock
17 Supply reel lock
18
Take-up reel lock
2* PG shifter automatic adjustment error
Fig. D4 Detail Service Information Number
7-5. Test Mode
When the test terminals are shorted during turning off condition, the following operation will be
performed after AC power is applied. Test Mode Information will be displayed on FIP insted of linear
counter. To release Test mode, test Terminals should be opened. @
(1) Power will be turned on automatically when AC power is applied.
(2) The direct operation of buttons are able to be performed.
(Examle) PLAY~
REC, REC+EJECT, REC+FF/REW
(3) In case the mechanism is in PLAY position, the mechanism goes into PLAY mode when AC
power is applied.
(4) Playback CVC function is turned off.
(5) Tracking is fixed under power off and cassette in. Auto tracking does not perform.
(6) For recording current adjustment.
(7) For reverse slow tracking adjustment.
(8) When the power is turned off, tracking is fixed.
36
