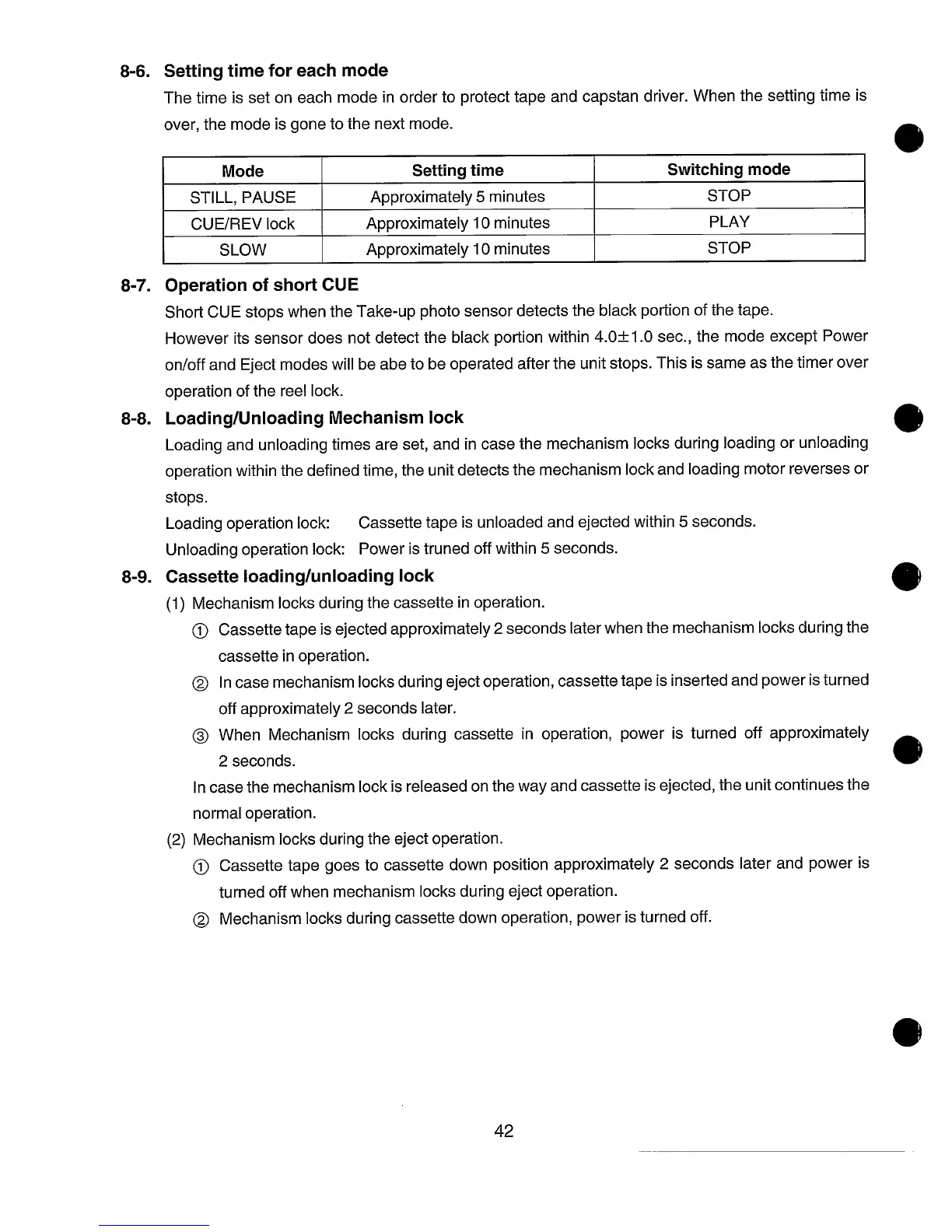

8-6.
8-7.
8-8.
8-9.
Setting time for each mode
The time is set on each mode in order to protect tape and capstan driver. When the setting time is
over, the mode is gone to the next mode.
Mode
Setting time Switching mode
STILL, PAUSE
Approximately 5 minutes
STOP
CUE/REV lock
Approximately 10 minutes
PLAY
SLOW
Approximately 10 minutes
STOP
Operation of short CUE
Short CUE stops when the Take-up photo sensor detects the black portion of the tape.
However its sensor does not detect the black
portion within 4.0+ 1.0 sec., the mode except Power
on/off and Eject modes will be abe to be operated after the unit stops. This is same as the timer over
operation of the reel
lock.
Loading/Unloading Mechanism lock
e
Loading and unloading times are set, and in case the mechanism locks during loading or unloading
operation within the defined time, the unit detects the mechanism lock and loading motor reverses or
stops.
Loading operation lock:
Cassette tape is unloaded and ejected within 5 seconds.
Unloading operation lock: Power is truned off within 5 seconds.
Cassette Ioadinghmloading lock
a
(1) Mechanism locks during the cassette in operation.
Cassette tape is ejected approximately 2 seconds later when the mechanism locks during the
cassette in operation.
Incase mechanism locks during eject operation, cassette tape is inserted and power is turned
off approximately 2 seconds later.
When Mechanism locks during cassette in operation, power is turned off approximately
2
seconds.
@
Incase the mechanism lock is released on the way and cassette is ejected, the unit continues the
normal operation.
(2) Mechanism locks during the eject operation.
~ Cassette tape goes to cassette down position approximately 2 seconds later and
power is
turned off
when mechanism locks during eject operation.
Q Mechanism locks during cassette down operation, power is turned off.
42
