(7) Mode 4:
(8) Mode 5:
(9) Mode 6:
(10) Mode 7:
Checks the operation circuit.
Indicates if SYSTEM CONTROL IC receives the operating commands from the mode
buttons and/or remote controller.
Checks the capstan motor circuit.’ “
Indicates if the SYSTEM CONTROL IC has received the command to rotate the
capstan motor.
Checks the cylinder motor circuit.
SYSTEM CONTROL [C has received the command to rotate the cylinder motor.
Checks the loading/unloading operation.
The loading motor rotates for loading operation when the “PLAY” button is pressed.
The loading motor rotates for unloading operation when the “STOP” button is pressed.
This mode can be displayed indefinitely until the OPERATE button is pressed.
●
<NOTE> Refer to Fig. D5 for details of Service Data Numbers.
1, 7
II SewicelnformationNumber II
Indicates whichcircuitsenses a
malfunction.

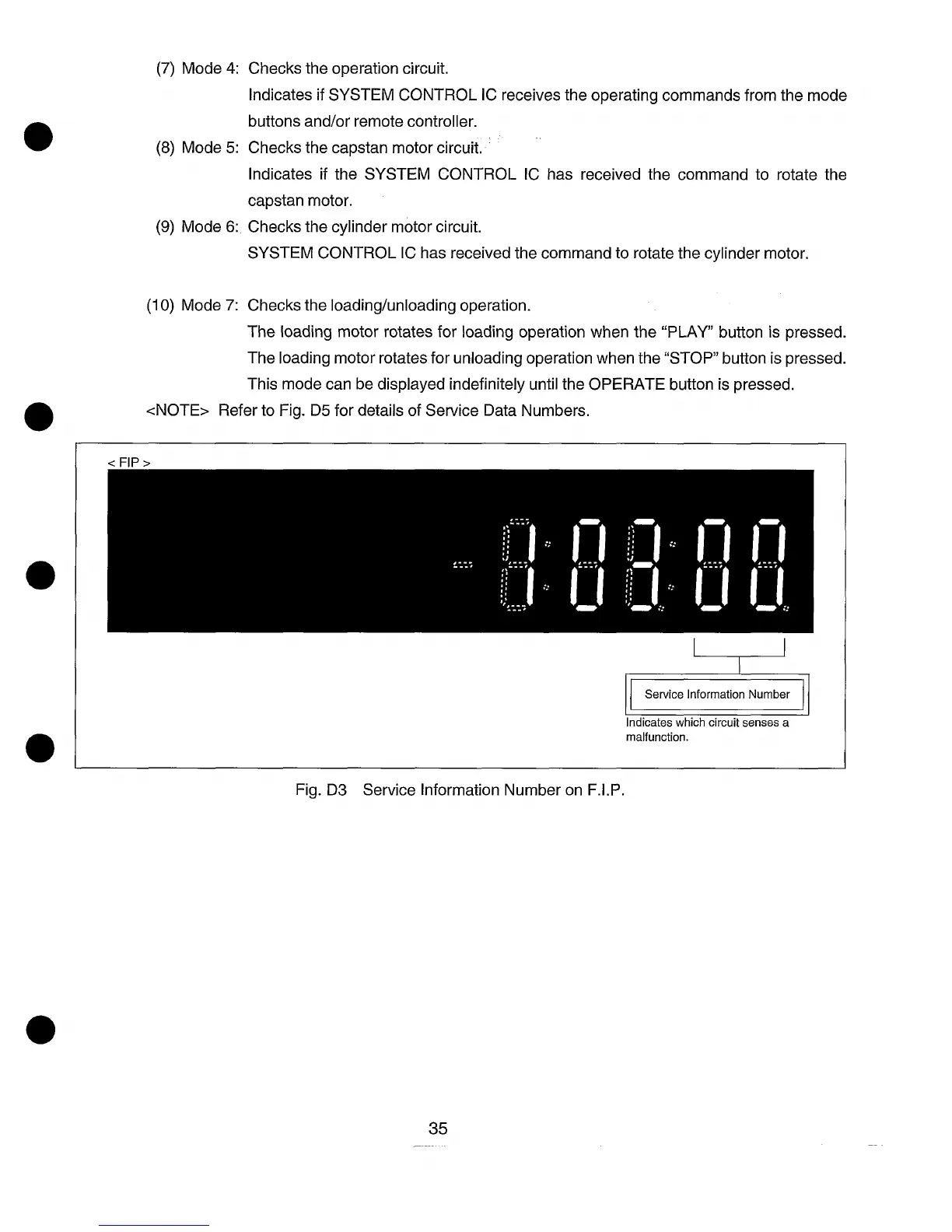

Fig. D3 Service Information Number on F.I.P.
35
