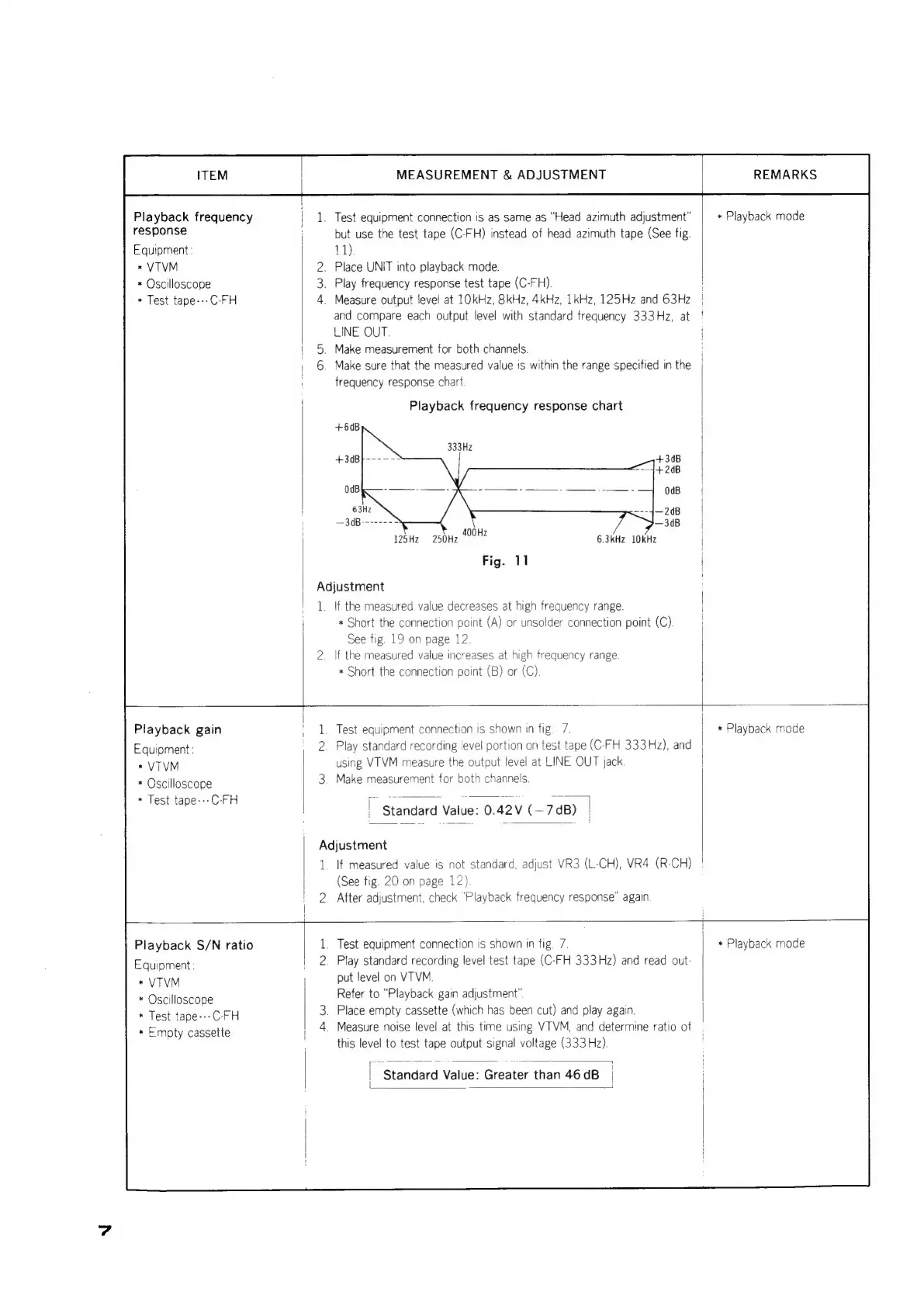

Playback
frequency
_
Test
equipment
connection
is
as
same
as
“Head
azimuth
adjustment”
MEASUREMENT
&
ADJUSTMENT
REMARKS
*
Playback
mode
response
Equipment:
*VTVM
*
Oscilloscope
*
Test
tape---C-FH
Playback
gain
Equipment:
*VTVM
*
Oscilloscope
*
Test
tape---C-FH
but
use
the
test
tape
(C-FH)
instead
of
head
azimuth
tape
(See
fig.
11).
.
Place
UNIT
into
playback
mode.
.
Play
frequency
response
test
tape
(C-FH).
.
Measure
output
level
at
10kHz,
8kHz,
4kKHz,
1kHz,
125Hz
and
63Hz
and
compare
each
output
level
with
standard
frequency
333Hz,
at
LINE
OUT.
.
Make
measurement
for
both
channels.
Make
sure
that
the
measured
value
is
within
the
range
specified
in
the
frequency
response
chart.
Playback
frequency
response
chart
400H2
125Hz
—
250Hz
6.3kHz
10kHz
Fig.
11
Adjustment
1.
If
the
measured
value
decreases
at
high
frequency
range.
*
Short
the
connection
point
(A)
or
unsolder
connection
point
(C)
See
fig.
19
on
page
12.
lf
the
measured
value
increases
at
high
frequency
range
*
Short
the
connection
point
(B)
or
(C).
.
Test
equipment
connection
is
shown
in
fig.
7.
Play
standard
recording
level
portion
on
test
tape
(C-FH
333
Hz),
and
using
VTVM
measure
the
output
level
at
LINE
OUT
jack
Make
measurement
for
both
channels.
*
Playback
mode
|
Standard
Value:
0.42V
(—7dB)
|
Adjustment
1.
If
measured
value
is
not
standard,
adjust
VR3
(L-CH),
VR4
(R-CH)
(See
fig.
20
on
page
12)
2.
After
adjustment,
check
“Playback
frequency
response”
again
Playback
S/N
ratio
Equipment:
*
VTVM
*
Oscilloscope
*
Test
tape---C-FH
+
Empty
cassette
2.
Play
standard
recording
level
test
tape
(C-FH
333Hz)
and
read
out-
.
Test
equipment
connection
is
shown
tn
fig.
7.
put
level
on
VTVM.
Refer
to
“Playback
gain
adjustment”.
.
Place
empty
cassette
(which
has
been
cut)
and
play
again.
_
Measure
noise
level
at
this
time
using
VTVM,
and
determine
ratio
of
this
level
to
test
tape
output
signal
voltage
(333
Hz)
|
|
*
Playback
mode
[FS
es
CpG
=
a
}
|
Standard
Value:
Greater
than
46dB
|
i
ah
H
