Panasonic RX-C300 - Cabinet Parts Location; Replacement Parts List

RX-C300 RX-C300

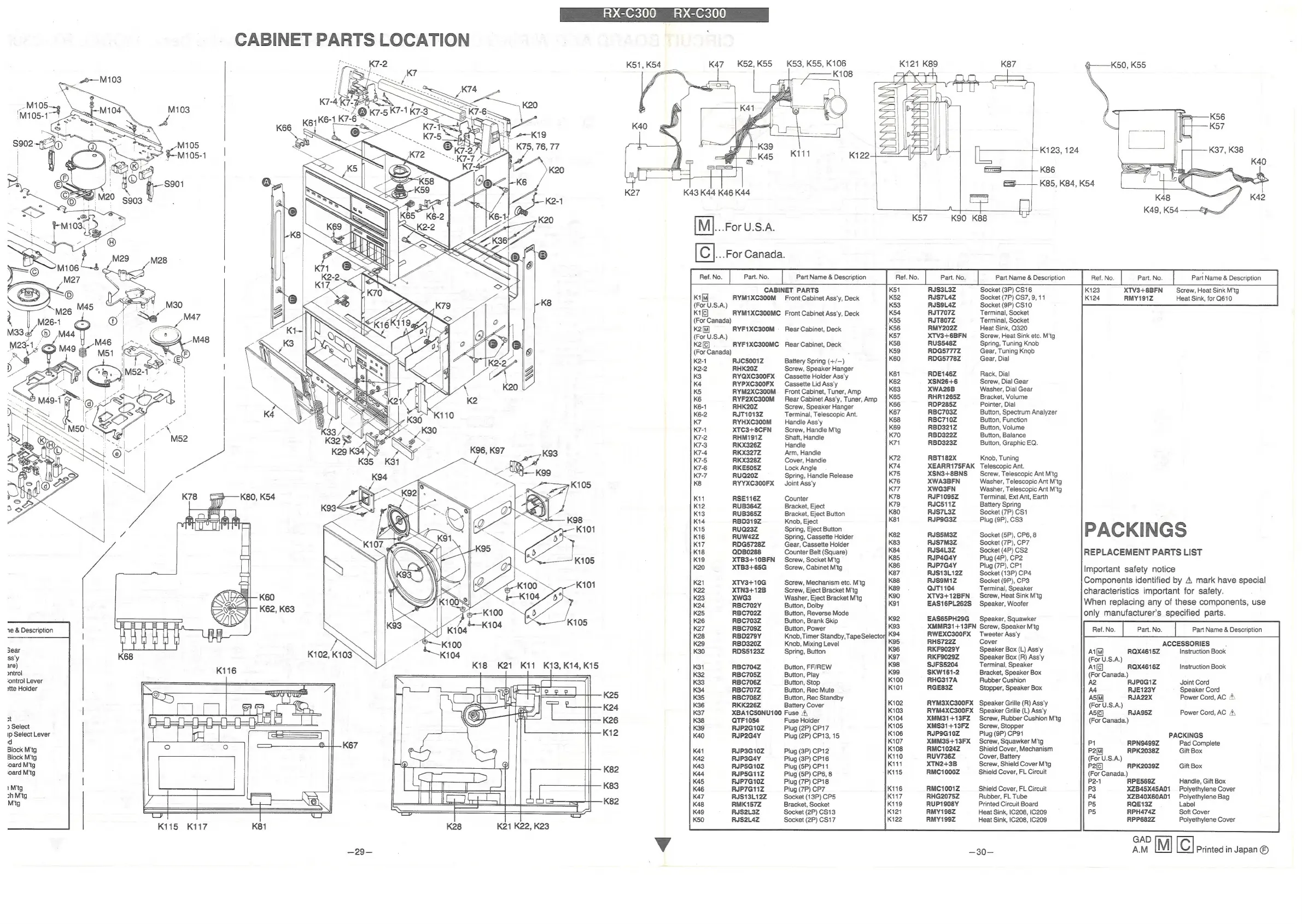

CABINET PARTS LOCATION
K52, K55
K51, K54 K47 K53, K55, K106 K121 K89 K87
V4
K123, 124
- K86
&3——— K85, K84, K54
K90 K88 Gy
K27 K43 K44 K46 K44
[M]...For U.S.A. =
[C]. ..For Canada.
a
CABINET PARTS K51 RJS3L3Z Socket (3P) CS16 K123 XTV3+8BFN Screw, Heat Sink M’tg
K1 [Ml RYM1XC300M Front Cabinet Ass’y, Deck K52 RJS7L4Z Socket (7P) CS7, 9, 11 K124 RMY191Z Heat Sink, for Q610
(For U.S.A.) K53 RJSOL4Z Socket (9P) CS10
K1 RYM1XC300MC Front Cabinet Ass'y, Deck K54 RJT707Z Terminal, Socket
(For Canada) K55 RJT807Z Terminal, Socket
K2 mM] RYF1XC300M — Rear Cabinet, Deck K56 RMY202Z Heat Sink, Q320
(For U.S.A.) K57 XTV3+6BFN Screw, Heat Sink etc. M’tg
K2 RYF1XC300MC Rear Cabinet, Deck K58 RUS548Z Spring, Tuning Knob
(For Canada) 7 K59 RDG5777Z Gear, Tuning Knob
K2-1 RJC5001Z Battery Spring (+/—) K60 RDG5778Z Gear, Dial
K2-2 RHK20Z Screw, Speaker Hanger ‘
K3 RYQXC300FX Cassette Holder Ass'y KG] RDE (462 Rack, Dial
K4 RYPXC300FX Cassette Lid Ass'y K62 XSN26+6 Screw, Dial/Gear
K5 RYM2XC300M ‘Front Cabinet, Tuner, Amp K63 XWA26B Washer, Dial Gear
K6 RYF2XC300M Rear Cabinet Ass'y, Tuner, Amp | K65 RHR12652 Bracket, Volume
K6-1 RHK20Z Screw, Speaker Hanger K66 RDP285Z Pointer, Dial
K6-2 RJT1013Z Terminal, Telescopic Ant. K67 RBC7032Z Button, Spectrum Analyzer
K7 RYHXC300M Handle Ass'y K68 RBC710Z Button, Function
K7-1 XTC3+8CFN Screw, Handle M'tg K69 RBD3212Z Button, Volume
K7-2 RHM191Z Shaft, Handle K70 RBD322Z Button, Balance
K7-3 RKX326Z Handle K71 RBD323Z Button, Graphic EQ.
K7-4 RKX327Z Arm, Handle :
K7-5 RKX328Z Cover, Handle K72 RBT182X Knob, Tuning
K7-6 RKES505Z Lock Angle K74 XEARRI175FAK Telescopic Ant.
K7-7 RUQ20Z Spring, Handle Release K75 XSN3+8BNS Screw, Telescopic Ant M'tg
K8 RYYXC300FX Joint Ass'y K76 XWAS3BFN Washer, Telescopic Ant M’tg
K77 XWG3FN Washer, Telescopic Ant M'tg
K11 RSE116Z Counter K78 RJF1095Z Terminal, Ext Ant, Earth
K12 RUB364Z Bracket, Eject K79 RJC511Z Battery Spring
K13 RUB365Z Bracket, Eject Button K80 RJS7L3Z Socket (7P) CS1
K14 RBD319Z Knob, Eject K81 RJP9G3Z Plug (9P), CS3
K15 RUQ23Z Spring, Eject Button Pp AC Ki N G S
Ki6 RUW42Z Spring, Cassette Holder K82 RJSSM3Z Socket (5P), CP6, 8
K17 RDG5728Z Gear, Cassette Holder i oer rad heres
K18 QDB0288 Counter Belt (Square) ockel REPLACEMENT PARTS LIST
Ki9 XTB3+10BFN Screw, Socket M'tg 34 aliens diye ae ti
: ; a : ;
a i a K87 RUS13L12Z Socket (13P) CP4 Important safety notice
kK24 XTV3+10G Screw, Mechanism etc. M'tg K88 RJSOM1Z Socket (9P), CP3 Components identified by A mark have special
K22 XTN3+12B Screw, Eject Bracket M't K89 QJT1104 Terminal, Speaker istics i
~ } K23 XWG3 Washer, Eject Bracket Mig Ks0 XTV3+12BFN_ Screw, Heat Sink M'tg patie Uaaaergl for safety.
K62. K63 = x K24 RBC702Y Button, Dolby K91 EAS16PL262S Speaker, Woofer en replacing any of these components, use
: ; K100 K25 RBC702z Button, Reverse Mode only manufacturer’s specified parts.
ja a te er
peli K104 K28 RBD279Y Knob, Timer Standby, Tape Selector] K94 RWEXC300FX Tweeter Ass'y :
_7~°—~k100 K29 RBD320Z Knob, Mixing Level Kes RHS7222 Cover ACCESSORIES
dear Ki04 K30 RDS5123Z Spring, Button K96 RKF9029Y Speaker Box (L) Ass'y Ail] RQX4615Z Instruction Book
ss'y K97 RKF9029Z Speaker Box (R) Ass'y (For U.S.A.)
are) K18 K21 Ki1 K13,K14,K15 K31 RBC704Z Button, FF/REW K98 SJFS5204 Terminal, Speaker Ai] RQX4616Z Instruction Book
ontrol K32 RBC705Z Button, Play K99 SKW161-2 Bracket, Speaker Box (For Canada.)
‘ontrol Lever K33 RBC706Z Button, Stop K100 RHG317A Rubber Cushion A2 RJPOG1Z Joint Cord
»tte Holder K34 RBC707Z Button, Rec Mute K101 RGE83Z Stopper, Speaker Box A4 RJE123Y Speaker Cord
K35 RBC708Z Button, Rec Standby ; ‘ AS|M] RJA22X Power Cord, AC A\
K36 RKK226Z Battery Cover K102 RYMS3XC300FX Speaker Grille (R) Ass'y (For U.S.A.)
K37 XBA1C50NU100 Fuse A K103 RYM4XC300FX Speaker Grille (L) Ass'y AS(C] RJAQ5Z Power Cord, AC A,
xt K38 QTF1054 Fuse Holder K104 XMM31+13FZ Screw, Rubber Cushion M'tg (For Canada.)
) Select K39 RJP2G10Z Plug (2P) CP17 K105 XMS31+13FZ Screw, Stopper
ip Select Lever K40 RUP2G4Y Plug (2P) CP13, 15 K106 RJP9G10Z Plug (9P) CP91 PACKINGS
id K67 K107 XMM35+-13FX Screw, Squawker Mtg Pi RPN9499Z Pad Complete
Block M'tg Kai RUP3G10Z Plug (3P) CP12 K108 RMC1024Z Shield Cover, Mechanism P2ml RPK2038Z Gift Box
Block M'tg K42 RUP3G4Y Plug (3P) CP16 K110 RUV736Z Cover, Battery (For U.S.A.)
ioard M'tg K43 RJP5G10Z Plug (5P) CP11 Ki14 XTN2+3B Screw, Shield Cover M'tg P2ic] RPK2039Z Gift Box
ioard M’tg K44 RJP5G11Z Plug (5P) CP6, 8 K115 RMC1000Z Shield Cover, FL Circuit (For Canada.)
K45 RJP7G10Z Plug (7P) CP18 P2-1 RPE569Z Handle, Gift Box
1M'tg K46 RJP7G11Z Plug (7P) CP7 K116 RMC1001Z Shield Cover, FL Circuit P3 XZB45X45A01_—- Polyethylene Cover
sh M'tg K47 RJS13L12Z Socket (13P) CP5 K117 RHG2075Z Rubber, FL Tube XZB40X60A01 Polyethylene Bag
M'tg K48 RMK157Z Bracket, Socket K119 RUP1908Y Printed Circuit Board RQE13Z Label
K49 RJS2L3Z Socket (2P) CS13 K121 RMY198Z Heat Sink, C208, IC209 RPH474Z Soft Cover
K50 RJS2L4Z Socket (2P) CS17 K122 RMY199Z Heat Sink, IC208, IC209 RPP682Z Polyethylene Cover
K115 K117
K81 K28
—29—
K21 K22, K23
am [MI [C]
A.M Printed in Japan ©
