Panasonic RX-D10 - Page 23

- Removal of the flexible cable. Push the top of the connector in the direction of
the arrow 1, and the pull out the flexible cable in the direction of the arrow 2.

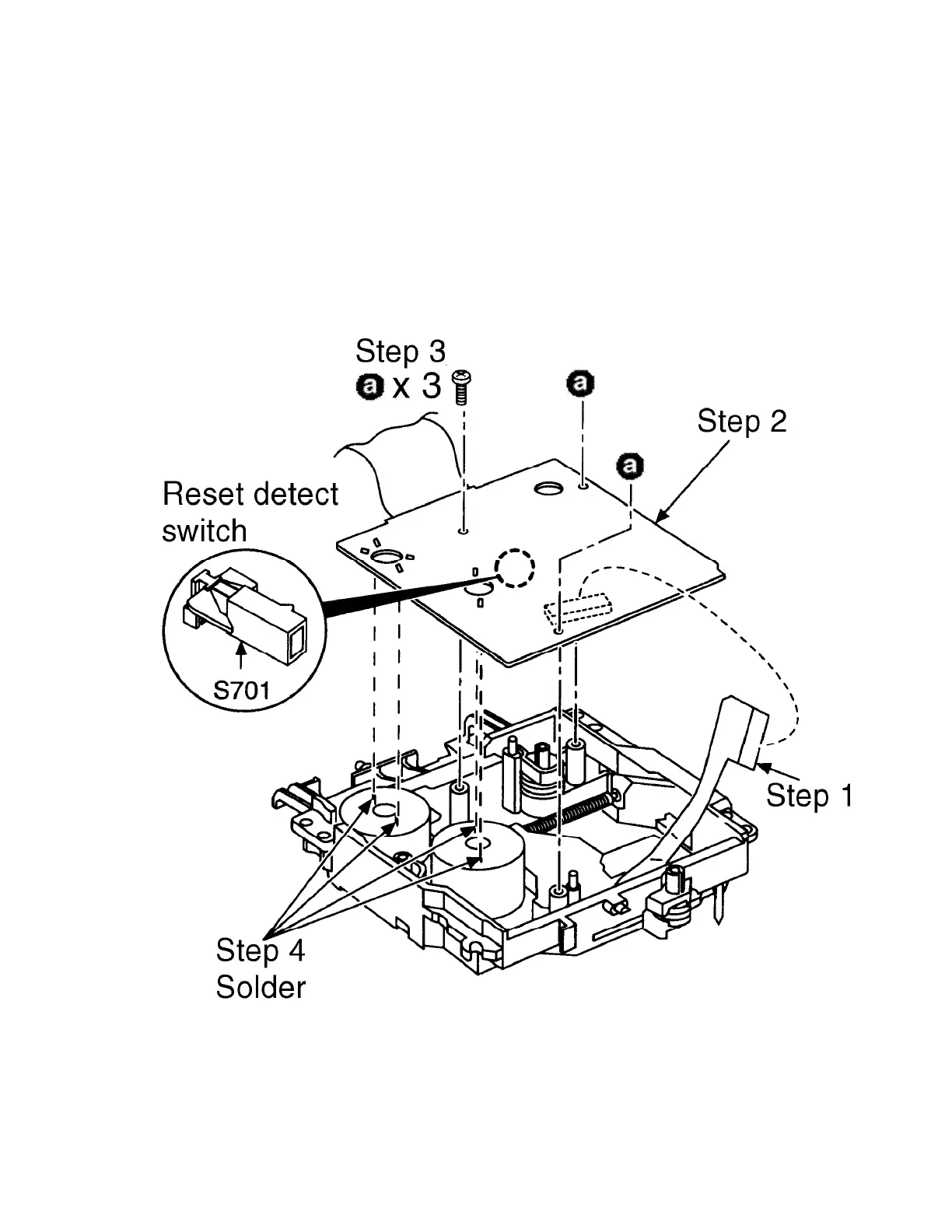

8.2.2. Installation of the CD Servo P.C.B. after Replacement
Step 1 Connect the FFC board.
Step 2 Install the CD servo P.C.B. in the traverse deck assembly.
23
