Note :

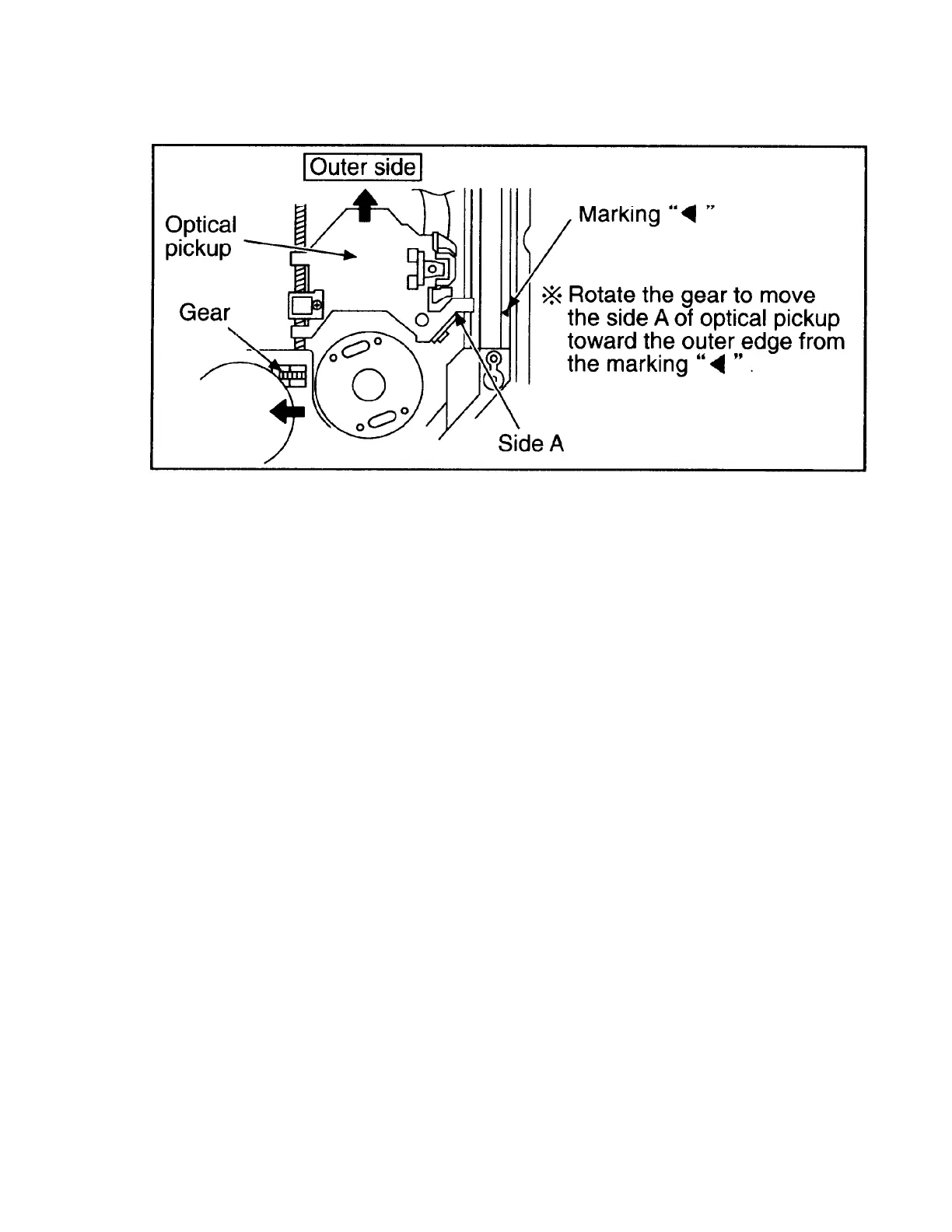

Before installing the CD servo P.C.B., move the optical pickup towards the outer
edge from the marking (black triangle).
[Otherwise, the detect switch (S701) mounted on the CD servo P.C.B. may be
damaged.]
9. Schematic Diagram
(All schematic diagrams may be modified at any time with the development of new
technology.)
Notes:
S701 Rest Switch
SW302 Function Switch
SW601 Reverse Skip Switch
SW602 Forward Skip Switch
SW603 Play/Pause Switch
SW604 FM Mode/Clear Switch
SW605 Play/Mode Switch
SW606 Memory Switch
SW607 Tone/XBS Switch
SW802 CD Leaf Switch
SW1001Record Switch
Battery Current:
Volume minimum :
