9.2.1. Replacement of the Traverse Deck

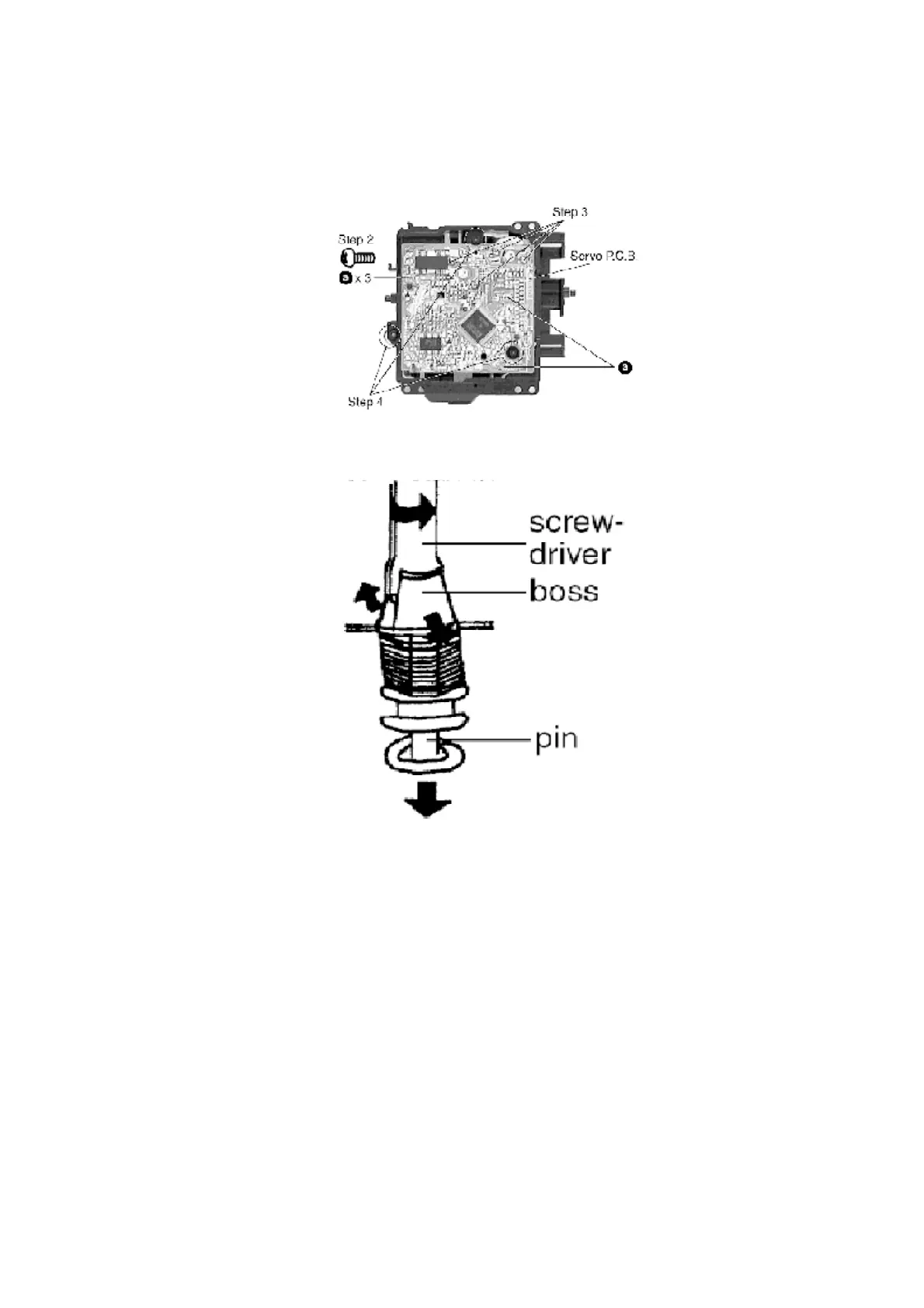

Step 2: Desolder the 4 legs of the 2 motors and pull out the Servo P.C.B.
Step 3: Widen the 3 bosses with a flat screwdriver and pull out the 3 pins. Then remove the
Traverse Deck.
Note :
Insert a short pin into the flexible cable for traverse unit.
