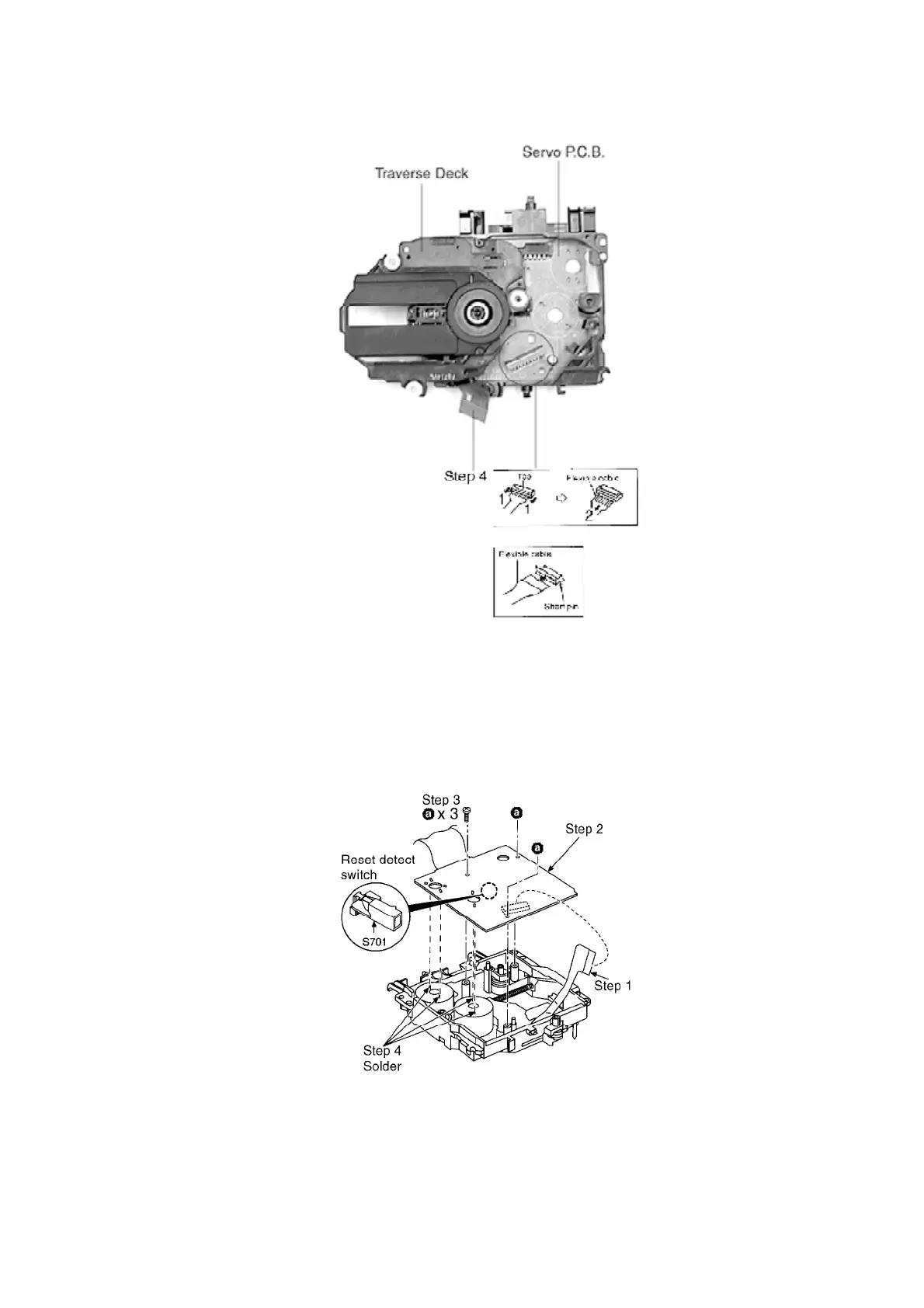

Step 4: Remove the flexible cable CN701.
- Removal of the flexible cable. Push the top of the connector in the
direction of the arrow 1, and the pull out the flexible cable in the
direction of the arrow 2.
9.2.2. Installation of the CD Servo P.C.B. after Replacement
Step 1 Connect the FFC board.
Step 2 Install the CD servo P.C.B. in the traverse deck assembly.
To Next Page
