28

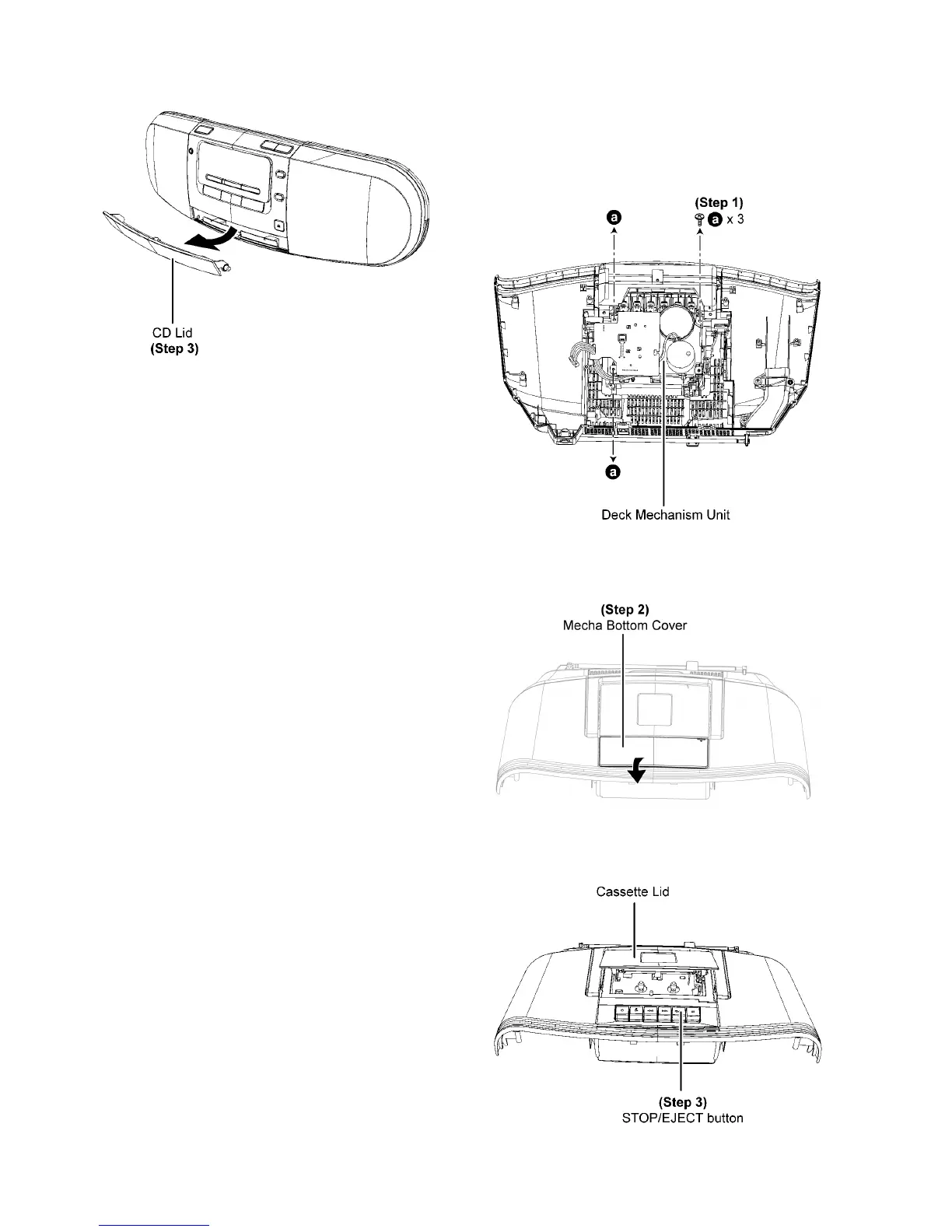

Step 3 : Remove the CD Lid.
8.10. Disassembly of Deck Mecha-
nism Unit
• Refer to “Disassembly of Top Cabinet Assembly”.
Step 1 : Remove 3 screws.
Step 2 : Open Mecha Bottom Cover as arrow shown.
Step 3 : Press the STOP/EJECT button to open Cassette Lid.
To Next Page
