9.2. Assembling Procedure

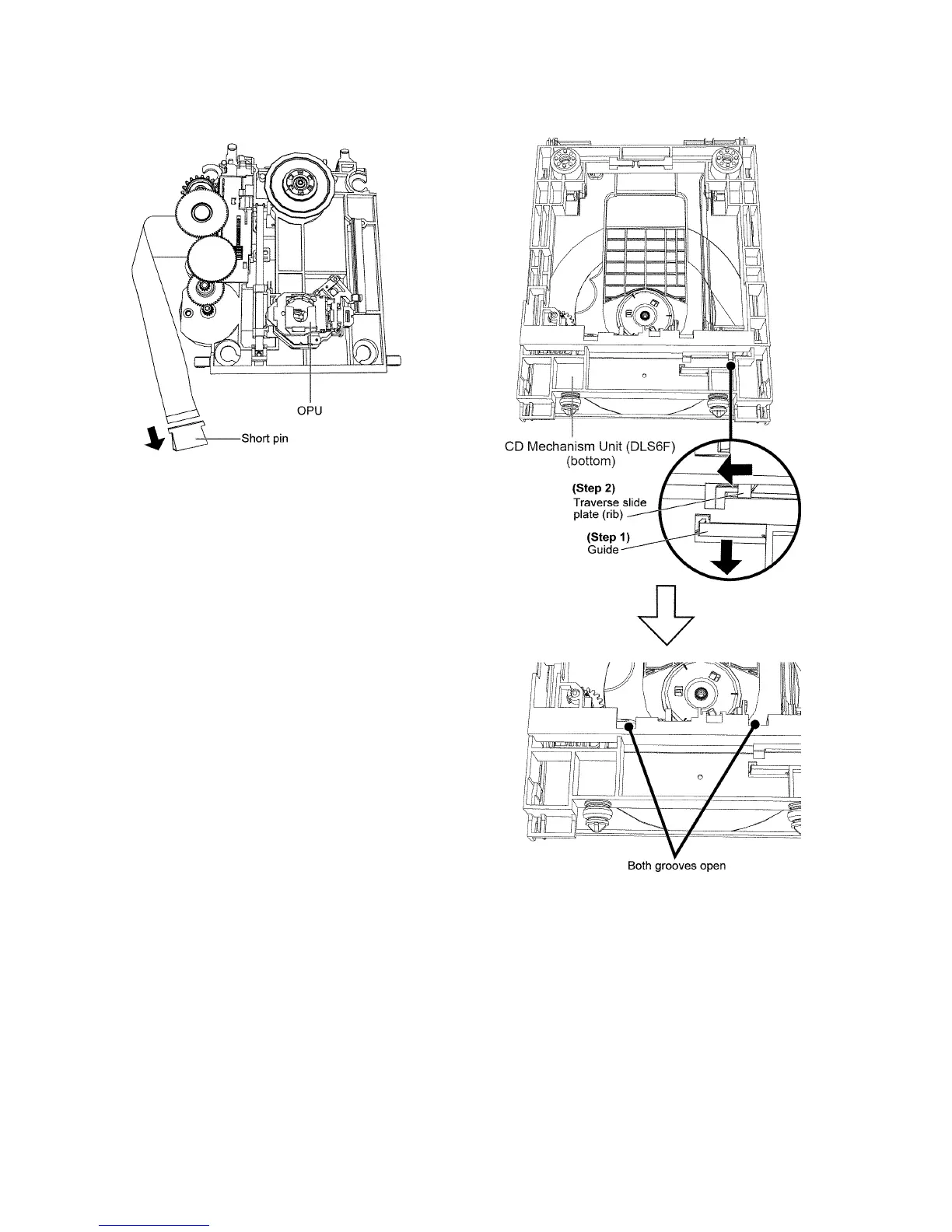

Caution : Removal of the short pin is necessary for
replacement of new traverse unit.
Step 1 : Release the guide.
Step 2 : Push the traverse slide plate (rib), ensure both grooves
are opened.
Step 3 : Slot the traverse unit at approximately 45° into the
mecha chassis as arrow shown.
