ADJUSTING AIRFLOW DIRECTION
The functions differ depending on the indoor unit used. The airflow direction cannot be set using
the remote controller for any unit which is not listed below.
Y2 type, K2 type:
• Never use your hands to move the flap (vertical airflow flap) that is controlled using the remote
controller.
• When the air conditioner is turned off, the flap automatically moves toward the direction of
closing.
• The flap (vertical airflow flap) moves to the upward position when performing the standby
operation for heating. The swing operation is made after the standby operation for heating is
released, but swing is indicated on the remote controller even during the standby operation for
heating.
Setting the airflow
direction
The airflow direction changes each time the FLAP button is pressed during operation.
To activate the swing
operation
Press the FLAP button to set the flap (vertical airflow flap) to the downward position, and then press
the FLAP button again. This displays , and the airflow automatically swings up and down.
To stop the swing
operation
Press the FLAP button again during the flap swing operation to stop the flap at the desired position.
Then, the airflow can be set from the top position by pressing the FLAP button again.
Indicator when swing operation is stopped
During cooling or drying operation, the flap will not stop at the downward position. Even if the flap is
stopped at the downward position during the swing operation, it will not stop until it moves to the
third position from the top.

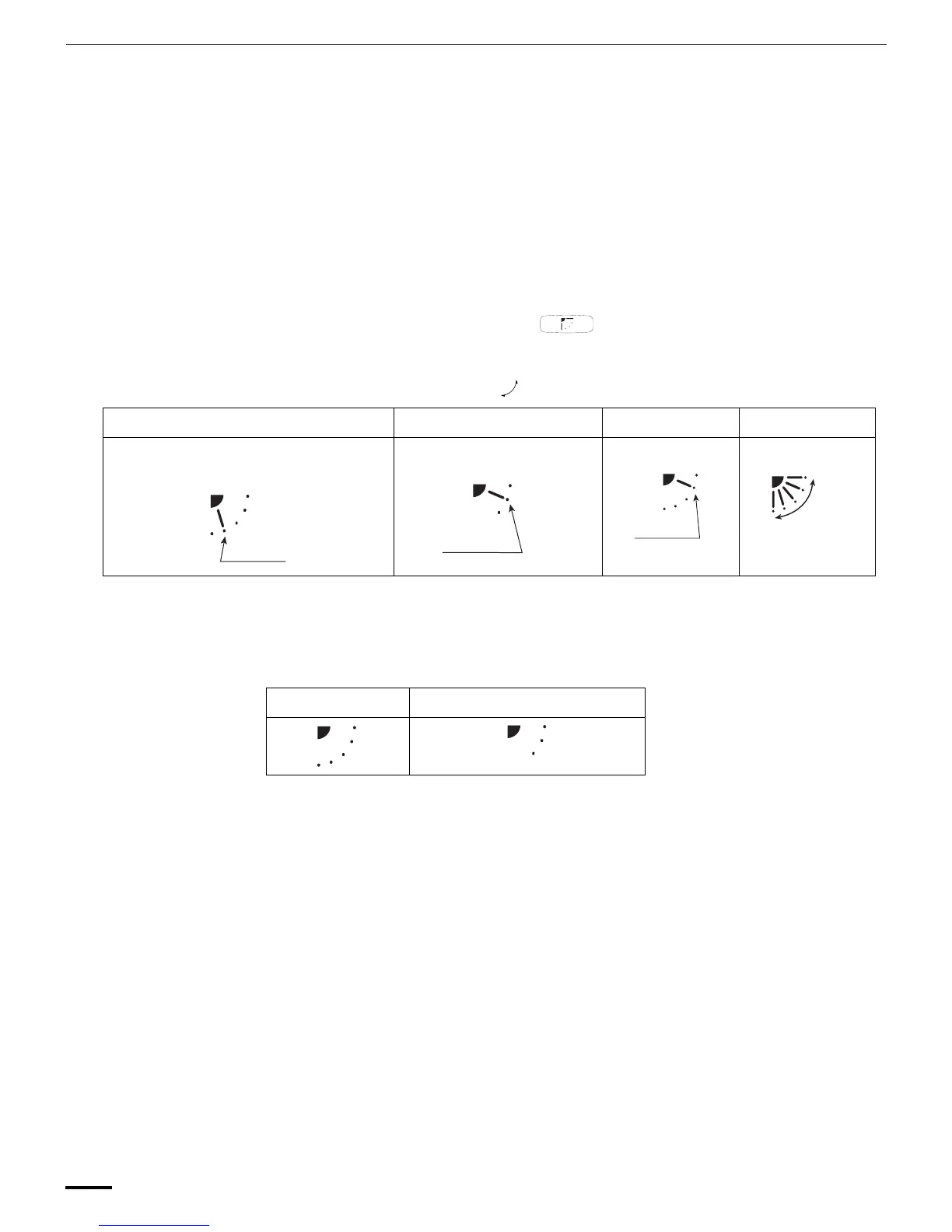

Heating Cooling and drying Fan operation All operations
Set the flap (vertical airflow flap) to the downward
position. If the flap is set to the upward position,
the warm air may not reach the floor.
The flap (vertical airflow flap) can
be set to one of three positions.
Initial setting
Initial setting
Initial setting
Continuous
operation
Fan and heating Cooling and drying
