3-2. Installing the Outdoor Unit

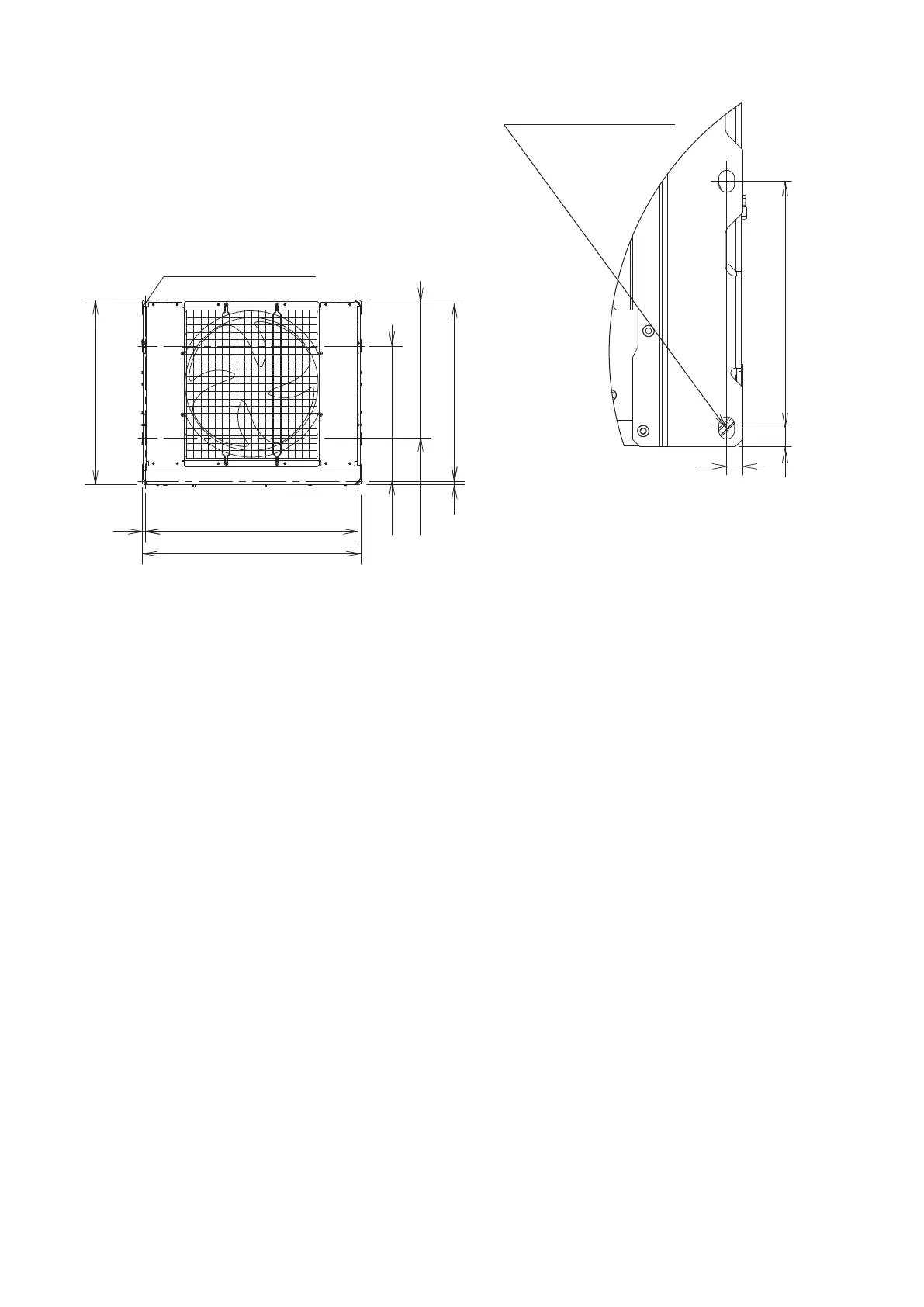

(1) Use four anchor bolts (M12 or similar) to securely anchor
the unit. Regarding the positioning anchor bolts of the
depth direction, select one of three types according to the
installation site as shown in the following figures.
Normally, select the position A. When removing the connection
tube in a downward direction, select the position B.
24
740
770
15
1000
C:730
B:730
A:96418
1150
1180
15
1000
C:730
B:730
A:96418
Unit: mm
Installation anchor hole
8-15
×21 elongated holes
(2) When only using a single outdoor unit, see the figure below.
740
770
15
1000
C:730
B:730
A:96418
1150
1180
15
1000
C:730
B:730
A:96418
15
18
234
Unit: mm
Detailed view of anchor hole
8-15×21 elongated hole
In case of the combination with different units, see section
“SUPPLEMENT”.
* When positioning the anchor bolt at B or C, make a
sufficient space between the units or from the wall for
installation. (Make a space between the units wider than
180mm and left and right space wider than 250mm from
the wall.)
(3) The vibration insulator or the like should be kept secure to
satisfy the width and depth for the plate legs. Use a washer
from the upper direction larger than the hole size for fixing
the installation.
