26

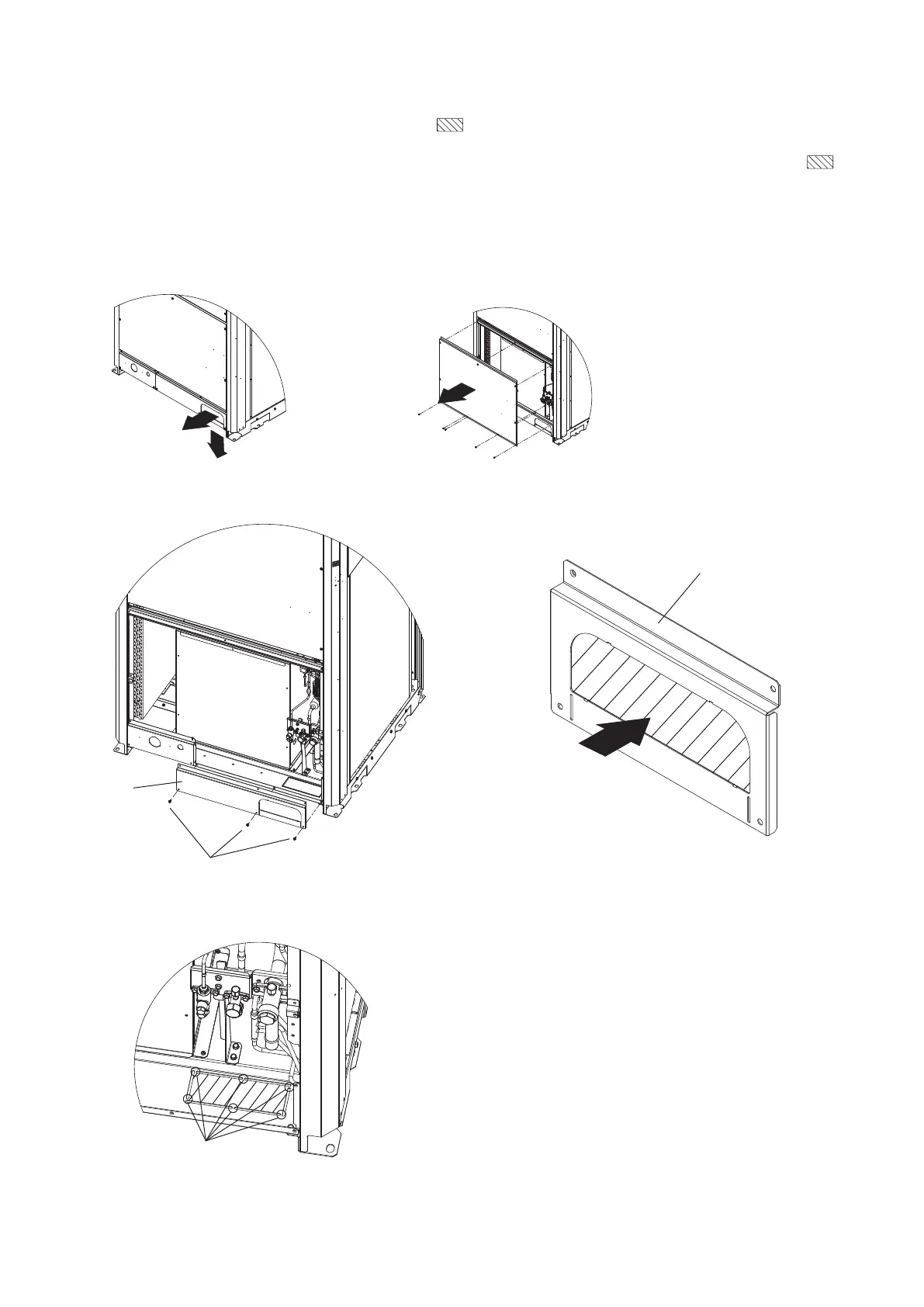

3-3. Routing the Tubing
● The tubing can be routed out either from the front or from the bottom.
● The connecting valve is contained inside the unit. Therefore, remove the front panel.
(1) If the tubing is routed out from the front, cut out the slit part (
).
● Be careful not to damage the tubing cover.
(2) If the tubing is routed out from the bottom, use cutting pliers or a similar tool to cut out the tubing outlet slit (part indicated by
)
from the tubing cover.
● Be careful not to damage the tubing cover.
Front
Bottom
Tubing cover
Tubing cover
Remove 3 screws.
If the tubing is routed out from the
bottom, use cutting pliers or a similar
tool to cut out the shaded area.
Cut out the shaded area in
the direction of the arrow.
Remove 10 panel screws
from front panel.
00_341136_2WAY_Eng.indb 26 2022/9/19 9:27:24
