Panasonic S-36MM1E5

2WAY SYSTEM
Control Functions
-
Outdoor Unit
1 - 4
1
3. Compressor Control
3-1. Compressors Mounted in the Outdoor Units
Outdoor unit Capacity 8 HP 10 HP 12 HP 14 HP 16 HP 18 HP 20 HP
Installed
compressor
Compressor 1 DC Inverter Rotary 10 HP 10 HP 6 HP 10 HP 10 HP 10 HP 10 HP
Compressor 2 Constant speed Scroll
––
–––––
6 HP 5 HP 5 HP6 HP 6 HP
Compressor 3 Constant speed Scroll 5 HP 6 HP
3-2. Compressor Selection Rules
3-2-1. Priority order of inverter compressor and constant speed compressor
Priority order of inverter compressor is higher than that of constant speed compressor.
* However, when the inverter compressor stops because of protection control or forced stop etc., a constant
speed compressor operates while the inverter compressor has stopped.
3-2-2. Priority order of inverter compressors
The priority order of the inverter compressor with the least operating time is high.
* The comparison is made among inverter compressors other than ones stopped because of protection control or
forced stop.
3-2-3. Priority order of constant speed compressors
The priority order of Compressor 2 is higher than that of Compressor 3.
3-2-4. Priority order between Compressors 2, priority order between Compressors 3
Priority order of Compressor 2 and Compressor 3 with the least operating time is high.
* The comparison is made among constant speed compressors other than ones stopped because of protection
control or forced stop.

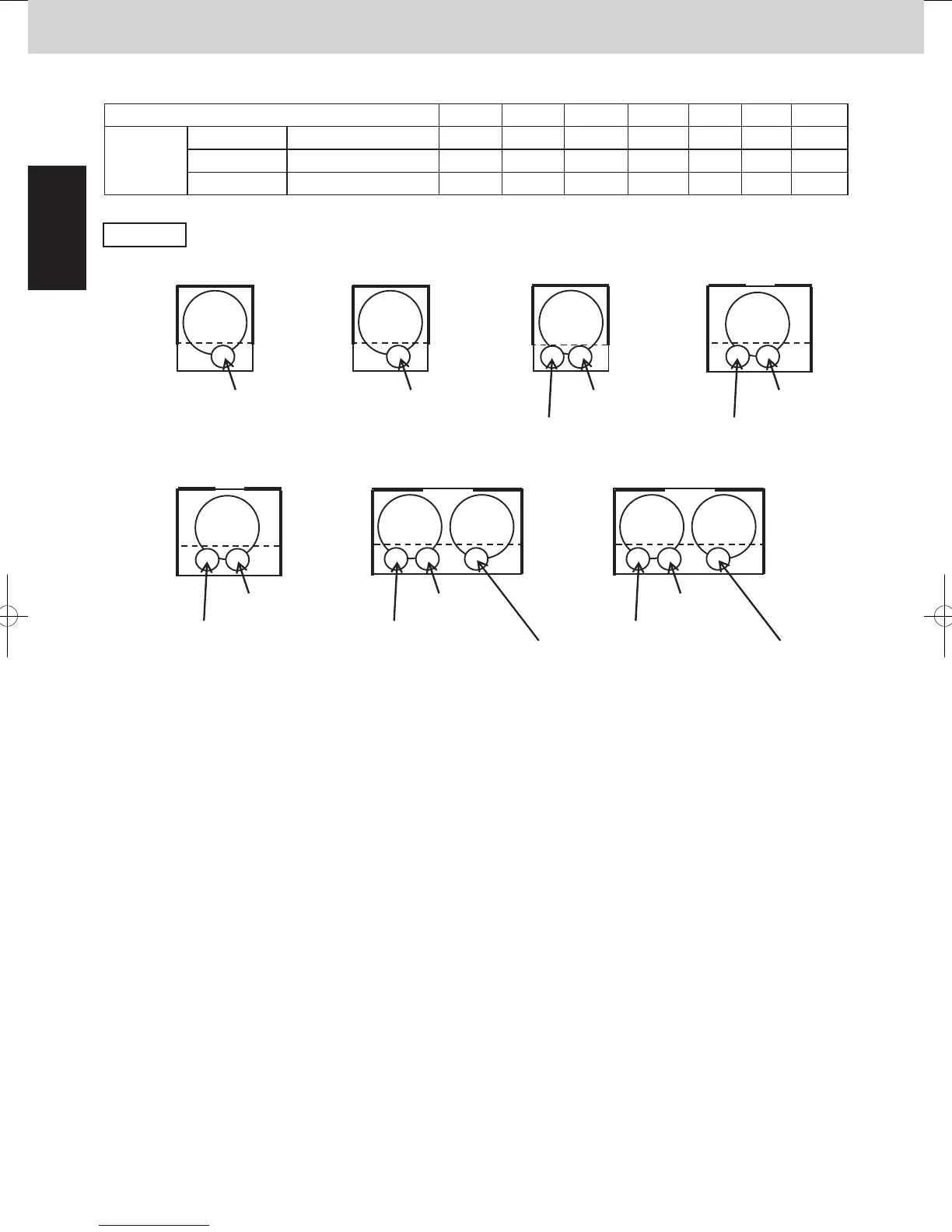

8 HP 12 HP 14 HP
PH61 PH81 PH02
Top view
Inverter 10HP
10HP
Inverter 10HP
Inverter 6HP
Constant speed 6HP
Inverter 10HP
Constant speed 5HP
Inverter 10HP
Constant speed 6HP
Inverter 10HP
Constant speed 5HP
Constant speed 5HP
Inverter 10HP
Constant speed 6HP
Constant speed 6HP
