Remote Controller Functions
5 - 22
3. Remote Controller Servicing Functions
5

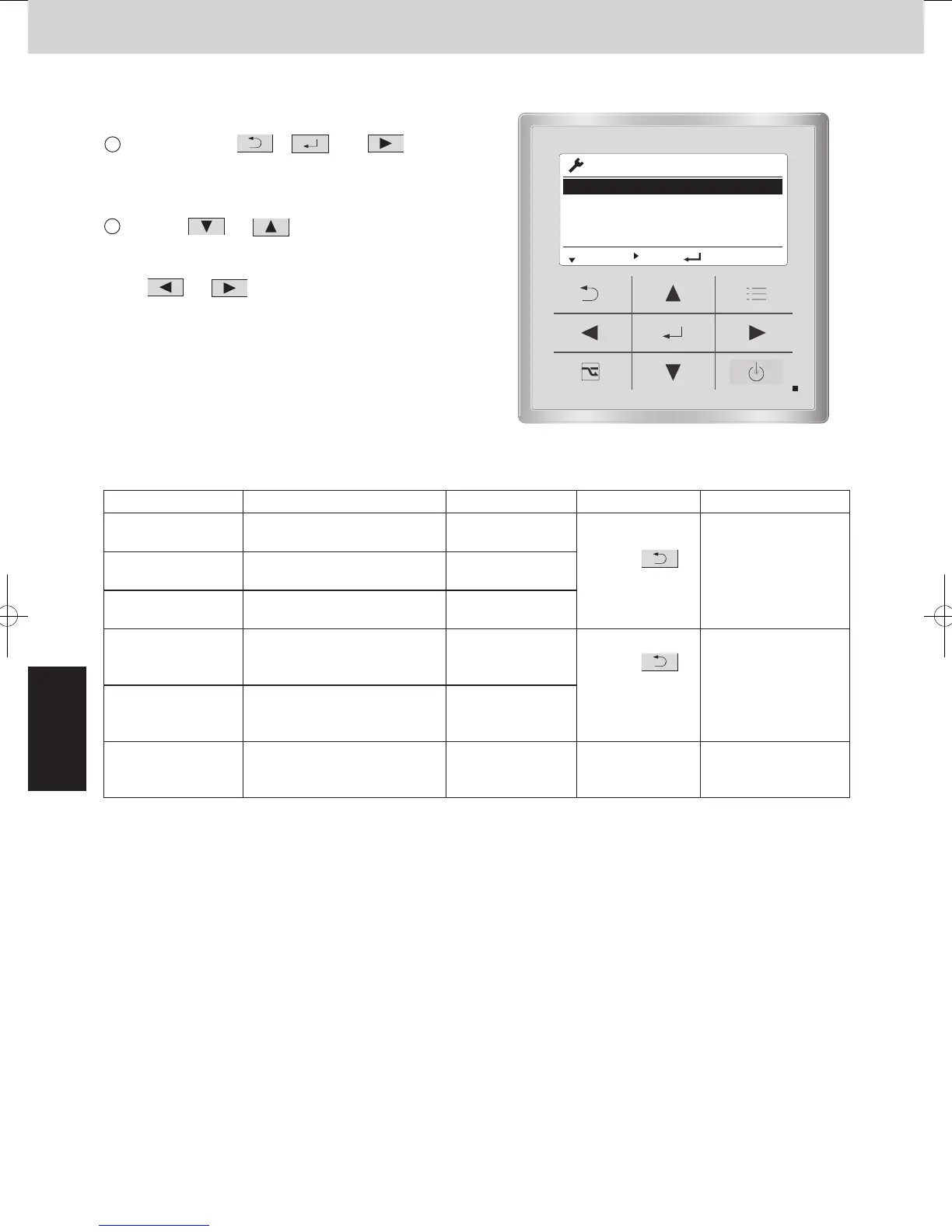

<Function of CZ-RTC3>
Display of "maintenance function" screen
1
Keep pressing the , and
buttons simultaneously for 4 or more seconds.
The “Maintenance func” screen appears on the
LCD display.
2
Press the or button to see each
menu.
If you wish to see the next screen instantly, press
the
or button.
Maintenance func
1. Outdoor unit error data
2. Service contact
3. RC setting mode
4.Test run
Sel. Page [] Confirm
20:30 (THU)
Fig. 9
List of Servicing Functions
Functions Description Menu selection Reset operation Unit status
Test run
Operation with forced
thermostat ON
4. Test run
Press the
button.
Sensor temperature
display
Temperature display from
each sensor
5. Sensor info
Servicing check
display
Alarm history display 6. Service check
Simple settings
Filter lifetime, operating
mode priority, central control
address, and other settings
7. Simple settings
Press the
button.
(Restart)
When settings are
made from a remote
controller, the indoor
unit where that
remote controller is
connected stops.
Detailed settings
System address, indoor
unit address, central control
address, and other settings
8. Detailed settings
Automatic address
Automatic address setting
based on command from the
wired remote controller
9. Auto address Automatic reset
Entire system stops.
2WAY SYSTEM
Remote Controller Functions
3. Remote Controller Servicing Functions
2WAY SYSTEM
Remote Controller Functions
3. Remote Controller Servicing Functions
Test Run Function
Operates the unit with the thermostat forced ON.
<Procedure of CZ-RTC2>
Press and hold the button for 4 seconds or
longer.
“TEST” appears on the remote controller LCD
display (Fig. 10).
Start operation.
Press the
button to return to normal remote
controller display.
Fig. 10
Fig. 11
2
2
3
3
1
1
4
4
CZ-RTC2
CZ-RTC3
<Procedure of CZ-RTC3>
1
Keep pressing the , and
buttons simultaneously for 4 or more seconds.
The “Maintenance func” screen appears on the
LCD display.
2
Press the
or button to see each
menu.
If you wish to see the next screen instantly, press
the or button.
Select "4. Test run" on the LCD display and press
the
button.
Change the display from OFF to ON by pressing
the or button. Then press the
button.
Maintenance func
1. Outdoor unit error data
2. Service contact
3. RC setting mode
4.Test run
Sel. Page [] Confirm
Sel. Page [] Confirm
20:30 (THU)
Maintenance func
1. Outdoor unit error data
2. Service contact
3. RC setting mode
4.Test run
20:30 (THU)
[] Confirm
Test run
Change
20:30 (THU)
Test run
ON
3
Press the button. “TEST” will be displayed
on the LCD display.
4
Press the button. Test run will be started.
Test run setting mode screen appears on the LCD
display.
TEST
START[]
20:30 (THU)
TEST
20:30 (THU)
COOL
MODE
FAN SPEED
FLAP
START
[]
20:30 (THU)
