1. GENERAL
This booklet briefly outlines where and how to install the
air conditioning system. Please read over the entire set of
instructions for the indoor and outdoor units and make sure all
accessory parts listed are with the system before beginning.
1-1. Tools Required for Installation (not supplied)
1. Flathead screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Carpenter’s level
6. Sabre saw or key hole saw
7. Hack saw
8. Core bits
9. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for deburring)
1-2. Accessories Supplied with Unit
See Tables 1-1 to 1-6.
Table Type
1-1 4-Way Cassette
1-2 4-Way Cassette 60x60
1-3 Ceiling
1-4 Low Silhouette Ducted
1-5 Slim Low Static Ducted
1-6 High Static Pressure Ducted
1-3. Type of Copper Tube and Insulation Material
If you wish to purchase these materials separately from a local
source, you will need:
1. Deoxidized annealed copper tube for refrigerant tubing.
2. Foamed polyethylene insulation for copper tubes as
required to precise length of tubing. Wall thickness of the
insulation should be not less than 8 mm.
3. Use insulated copper wire for field wiring. Wire size varies
with the total length of wiring. Refer to 4. ELECTRICAL
WIRING for details.
CAUTION
Check local electrical codes and regulations before
obtaining wire. Also, check any specified instructions or
limitations.
1-4. Additional Materials Required for Installation
1. Refrigeration (armored) tape
2. Insulated staples or clamps for connecting wire (See your
local codes.)
3. Putty
4. Refrigeration tubing lubricant
5. Clamps or saddles to secure refrigerant tubing
6. Scale for weighing

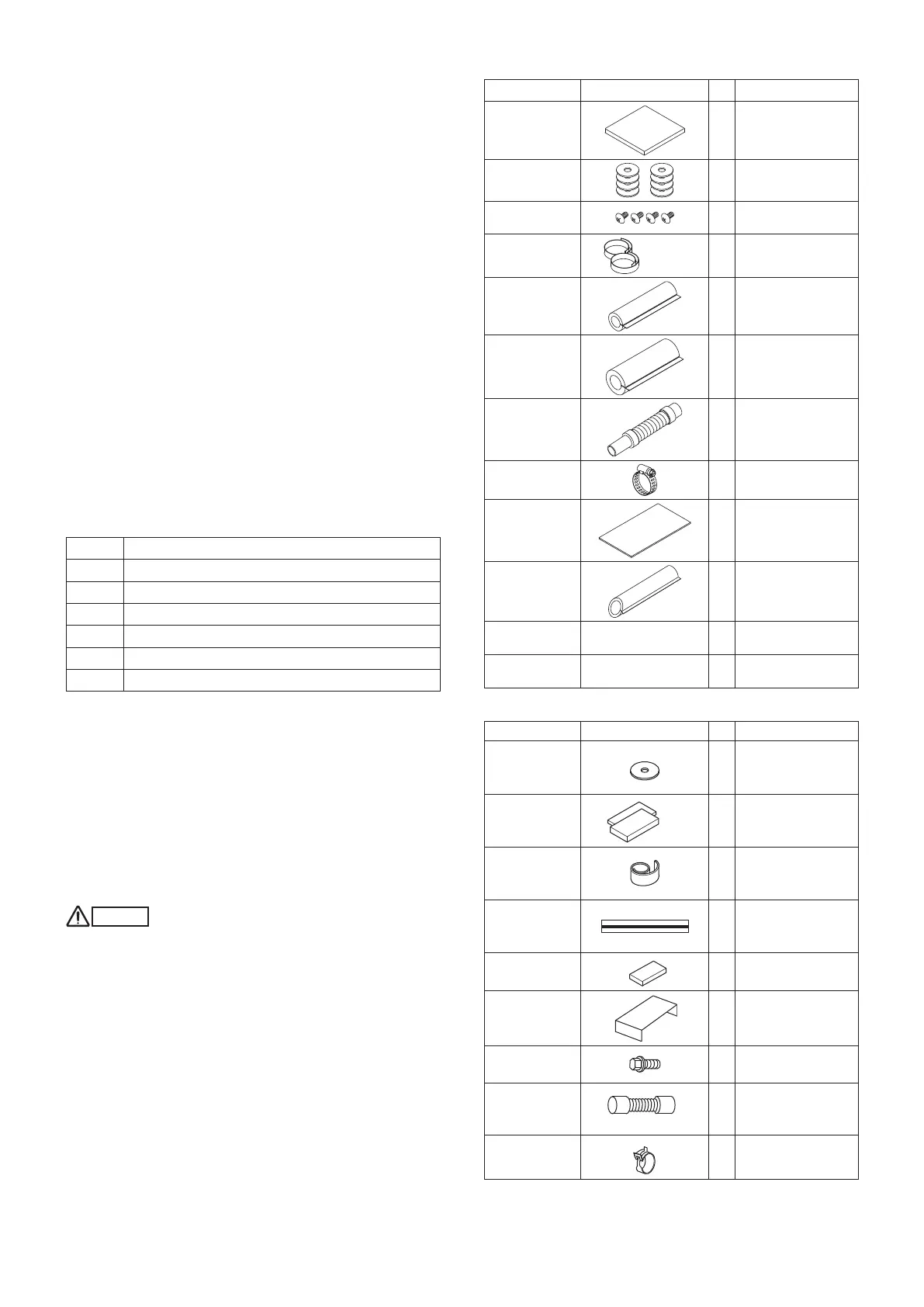

Table 1-1 (4-Way Cassette)
Part Name
Figure Q'ty Remarks
Full-scale
installation
diagram
1
Printed on
container box
Washer
8
For suspension
bolts
Screw
4
For full-scale
installation diagram
Insulating tape
(White)
2
For gas and liquid
tube flare nuts
Flare insulator 1 For liquid tube
Flare insulator
1 For gas tube
Drain hose
1
Hose band
1
Packing
1
Drain insulator
1
Instruction
Manual
1
Installation
Instruction
1
Table 1-2 (4-Way Cassette 60x60)
Part Name Figure Q'ty Remarks
Washer
8
For temporarily
suspending indoor
unit from ceiling
Flare
insulation
T3
T5
2
set
For gas / liquid
tube connection
Insulation tie
2
For gas / liquid
tube / flare nut
connection
Vinyl tie
8
For flare /
drain insulating
connection
Drain hose
insulation
T10
1
For drain tube
connection
Full-scale
installation
diagram
1
Printed on
container box
Washer head
screw
4
For full-scale
installation diagram
Drain hose
L140
1
For unit & PVC
tube connection
Hose band
2
For drain hose
connection
●
Use M10 for suspension bolts.
●
Field supply for suspension bolts and nuts.
