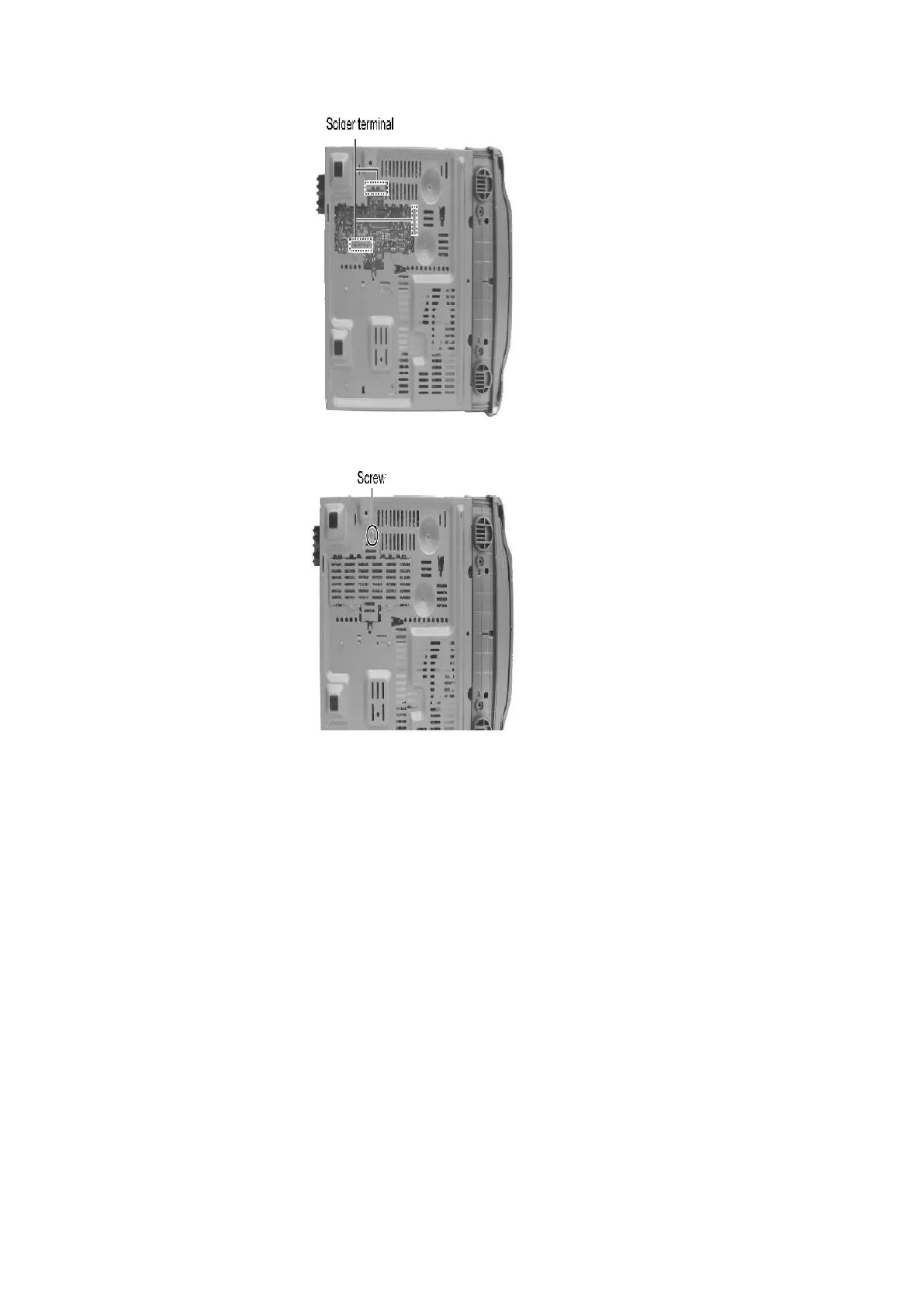

Step 7 Fix back the cut portion with a screw as shown.
10.10. Disassembly of Front Panel Unit
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer
Unit
Step 1 Disconnect connectors (CN2803, CN2806, CN2951, CN5950 & CN5951).
38
