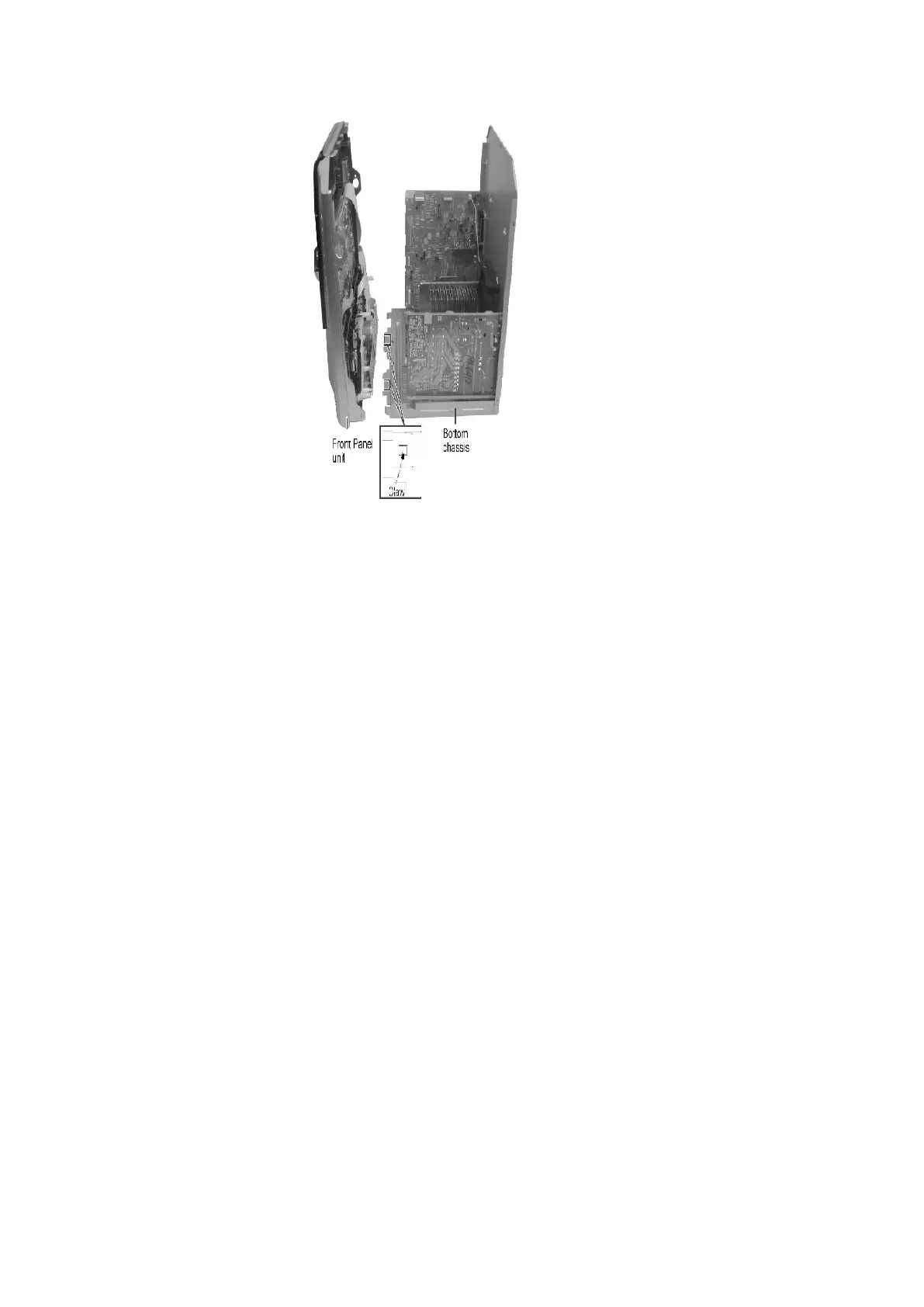

Step 4 Remove the front panel unit.
Note: Ensure 2 claws located at the bottom chassis is seated into the 2 slots at bottom of front panel at
2 catches (one on each side) of bottom chassis to be aligned to front panel’s slot. Assembly is secured
upon hearing clicking sound.
10.11. Disassembly for Panel P.C.B.
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer
Unit
- Follow the (Step 1) - (Step 4) of Item 10.10 - Disassembly of Front Panel
Unit
Step 1 Remove the volume knob.
