Panasonic SA-AK640E - 10.14. Disassembly of Traverse Unit

- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer
Unit
- Follow the (Step 1) - (Step 4) of Item 10.10 - Disassembly of Front Panel
Unit

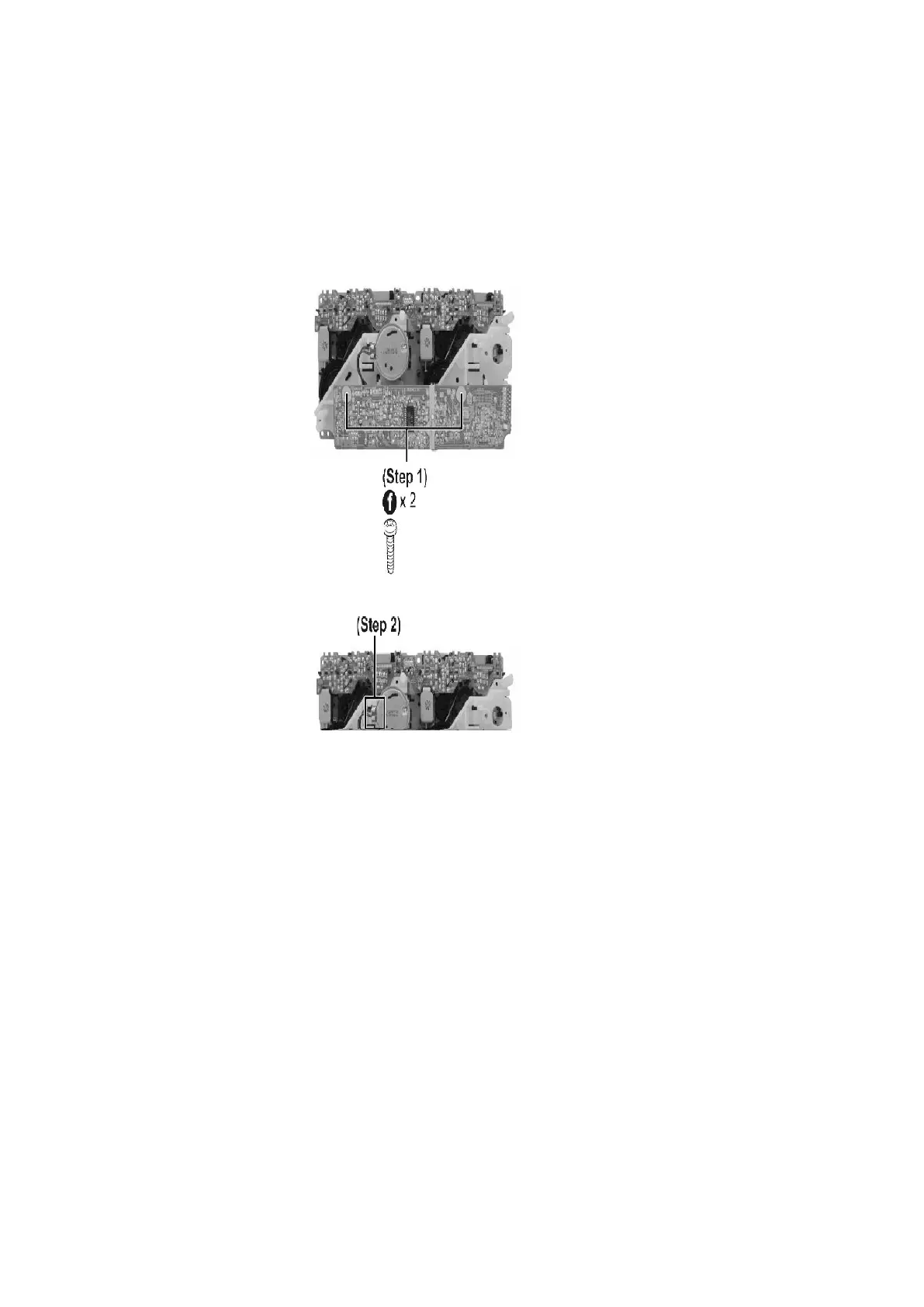

Step 1 Remove 2 screws.
Step 2 Desolder wire at deck motor terminals (W1002).
Step 3 Remove Deck P.C.B.
10.14. Disassembly of Traverse Unit
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer
Unit
Important notes: Ensure all the trays are in the “STOCK” position before proceeding to the disassemble
of traverse unit. For procedures to set the trays in “STOCK” position, please refer to original Service
Manual for CRS1, Section 7. Disassembling Procedure When Tray In Play Position, Order No.
MD0509368C0.
