Panasonic SA-AK640E - 10.15. Disassembly of optical pickup unit (CD mechanism)

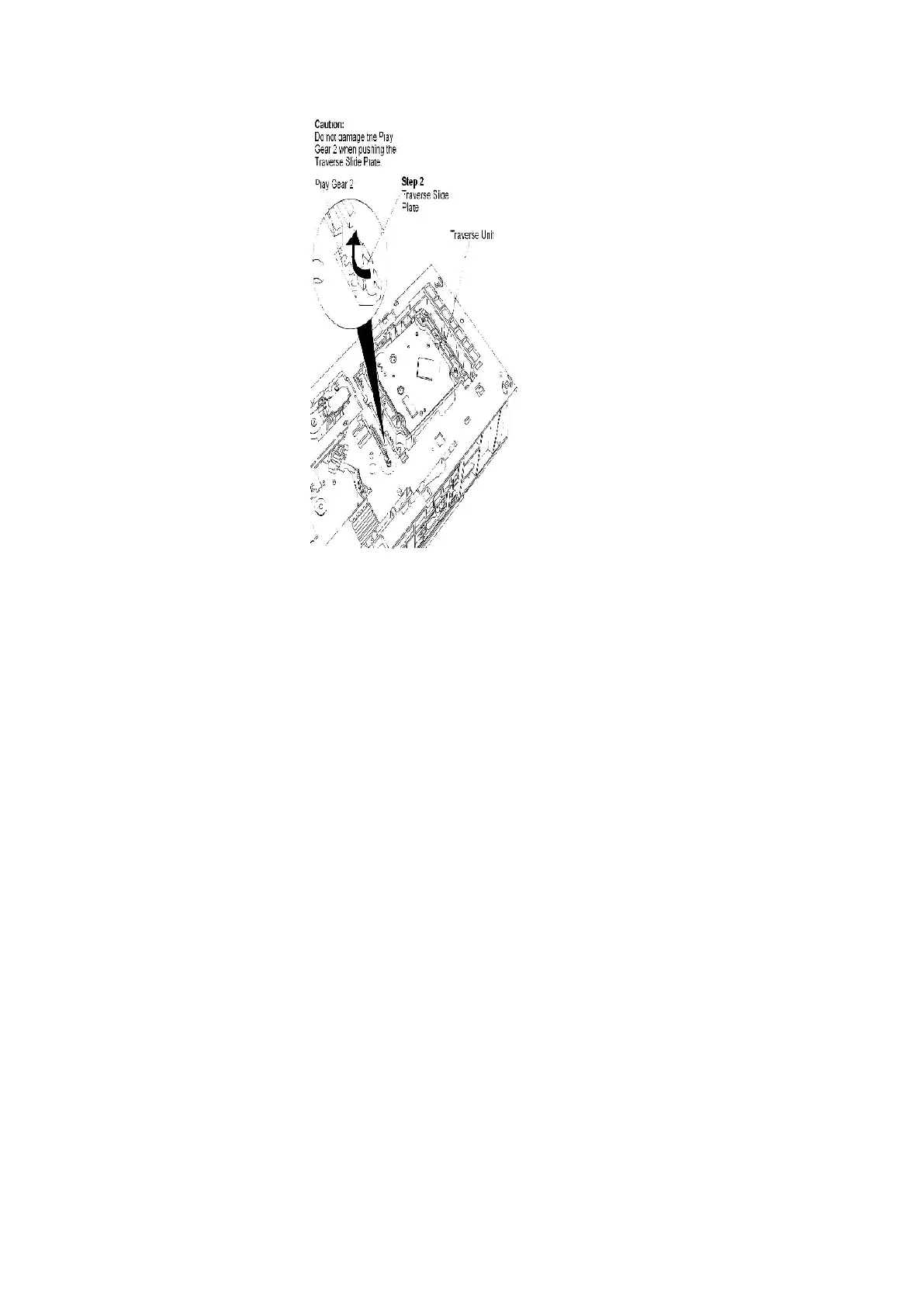

Step 2: Push the traverse slide plate as arrow shown to lock the traverse unit.
10.15. Disassembly of optical pickup unit (CD mechanism)
- Follow the (Step 1) - (Step 2) of Item 10.4 - Disassembly of Top Cabinet
- Follow the (Step 1) - (Step 4) of Item 10.6 - Disassembly of CD Changer
Unit
- Follow the (Step 1) - (Step 2) of Item 10.14 - Disassembly of Traverse Unit
Step 1 Pull out FFC.
47
