Grounding for electrostatic breakdown prevention
1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity from
your body.
2. Work table grounding
Put a conductive material (sheet) or steel sheet on the area where the
traverse deck (optical pickup) is place, and ground the sheet.
Caution :
The static electricity of your clothes will not be grounded through the wrist strap. So, take care not to
let your clothes touch the traverse deck (optical pickup).

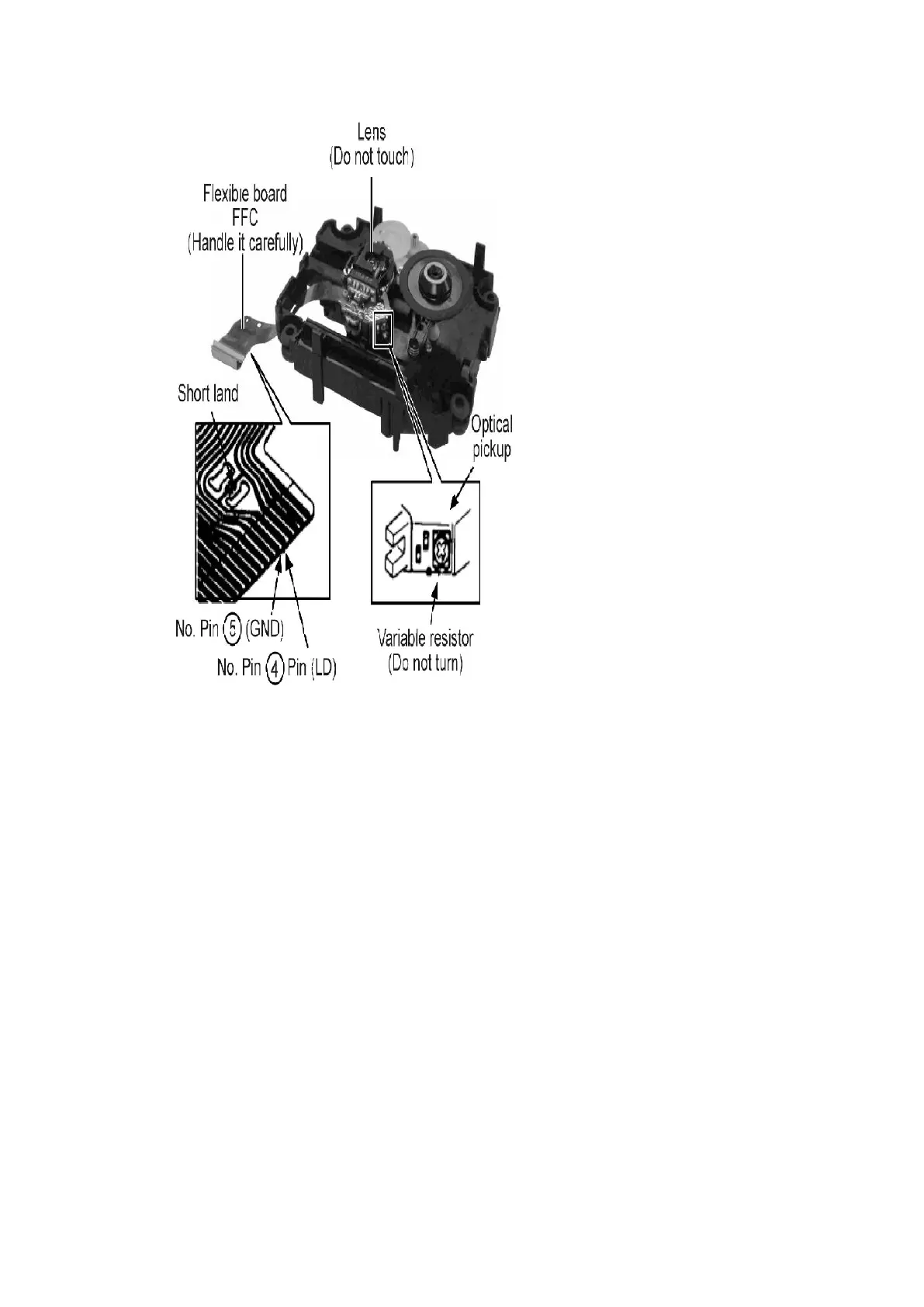

Caution when replacing the Traverse Deck
The traverse deck has a short point shorted with solder to protect the laser diode against electrostatics
breakdown. Be sure to remove the solder from the short point before making connections.
9
